8140SRC20.10

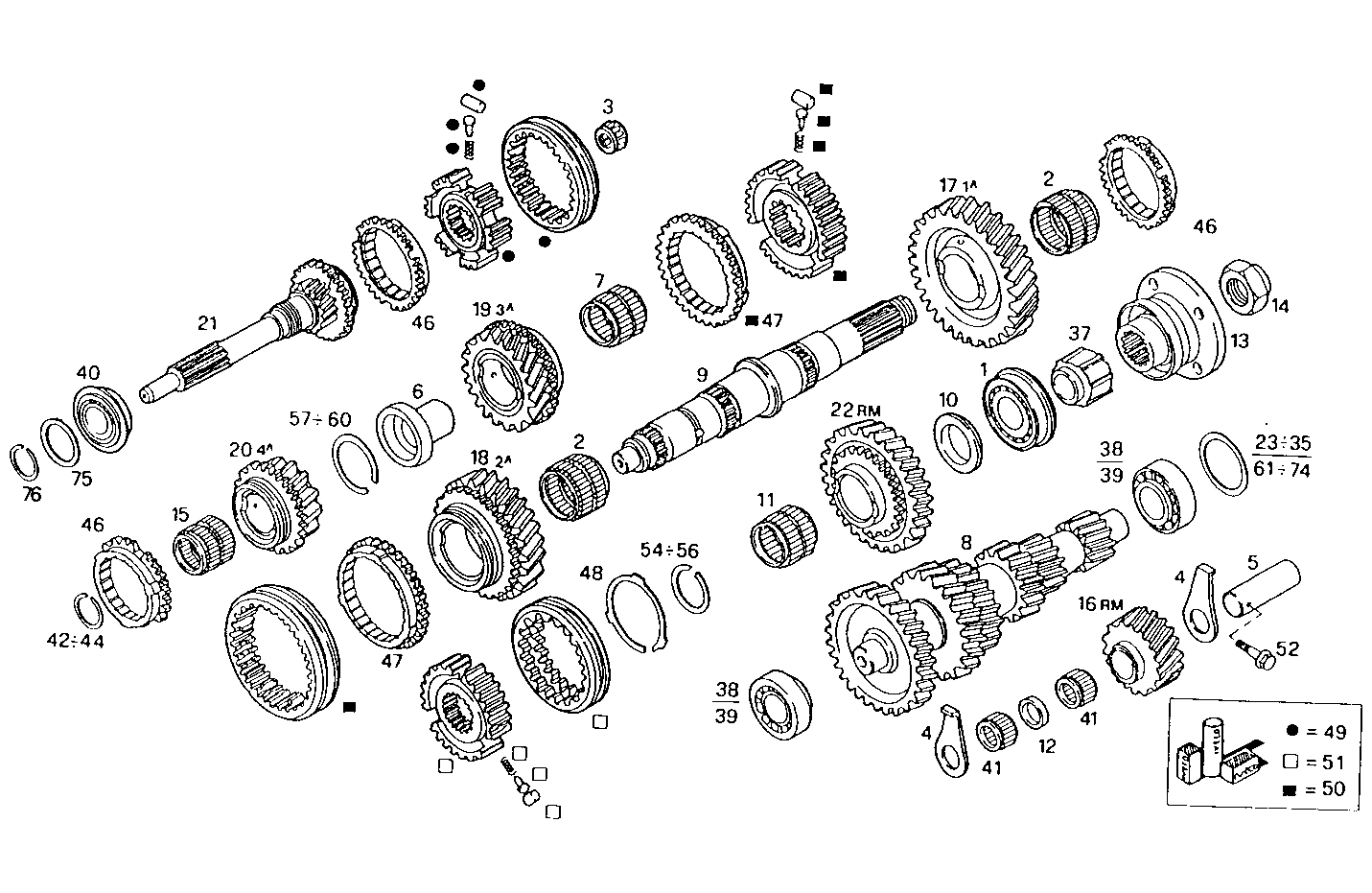

A27510006/04 TRANSMISSION GROUP - Left hand drive 2826.5

Iveco/FPT TRANSMISSION GROUP

Item Part number Description
1 1905340 GEARBOX BEARINGS Ø40X80 MM SP=18 MM
2 8856975 ROLLER CAGE Ø49X55 MM SP=32 MM
3 8859074 ROLLER CAGE Ø24X36 MM SP=23 MM
4 8857305 STOP WASHER
5 8856952 RETURN SHAFT REVERSE
6 8858680 BUSH
7 1905288 ROLLER CAGE
8 8858876 COUNTERSHAFT
9 8859641 MAIN SHAFT
10 8856970 STOP WASHER
11 8856974 ROLLER CAGE Ø44X50 MM SP=30,5 MM
12 8835003 WASHER
13 8859642 SHIFT SLEEVE
14 8857862 GROOVED NUT
15 8858644 GEARBOX BEARINGS Ø41X48 MM SP=31 MM
16 8856931 REVERSE GEAR REVERSE
17 8858891 SPLITTER GEAR 1ST SPEED
18 8858890 SPLITTER GEAR 2ND SPEED
19 8858880 SPLITTER GEAR 3RD SPEED
20 8858889 SPLITTER GEAR 4TH SPEED
21 8867926 INPUT SHAFT
22 8858847 REVERSE GEAR REVERSE
23 8857028 ADJUSTING RING SP=1,4 MM
24 8857029 ADJUSTING RING SP=1,5 MM
25 8857030 ADJUSTING RING SP=1,6 MM
26 8857031 ADJUSTING RING SP=1,7 MM
27 8857032 ADJUSTING RING SP=1,8 MM
28 8857033 ADJUSTING RING SP=1,9 MM
29 8857034 ADJUSTING RING SP=2 MM
30 8857035 ADJUSTING RING SP=2,1 MM
31 8857036 ADJUSTING RING SP=2,2 MM
32 8857037 ADJUSTING RING SP=2,3 MM
33 8857795 ADJUSTING RING SP=2,25 MM
34 8857796 ADJUSTING RING SP=2,15 MM
35 8857797 ADJUSTING RING SP=2,05 MM
37 8859132 WORM
38 1905291 GEARBOX BEARINGS Ø25X62 MM SP=18,25 MM
39 8859288 GEARBOX BEARINGS Ø25X62 MM SP=18,25 MM
40 1905341 GEARBOX BEARINGS Ø35X80 MM SP=21 MM
41 1905292 ROLLER CAGE Ø24X30 MM SP=17 MM
42 8857018 CIRCLIP SP=2 MM
43 8857019 CIRCLIP SP=2,05 MM
44 8857020 CIRCLIP SP=2,1 MM
46 8858923 SYNCHRONIZER 2ND-3RD SPEED
47 8858711 SYNCHRONIZER
48 8859395 SPRING LOCKWASHER
49 8859605 KIT-SYNCHRONIZER 4TH-5TH SPEED
50 8859606 KIT-SYNCHRONIZER 2ND-3RD SPEED
51 8859607 KIT-SYNCHRONIZER RV-1ST SPEED
52 16585824 HEXAGON BOLT M6X20 MM
54 8857015 CIRCLIP SP=2 MM
55 8857016 CIRCLIP SP=2,05 MM
56 8857017 CIRCLIP SP=2,1 MM
57 8859365 SPRING LOCKWASHER SP=2 MM
58 8859366 SPRING LOCKWASHER SP=2,05 MM
59 8859367 SPRING LOCKWASHER SP=2,1 MM
60 8859368 SPRING LOCKWASHER SP=2,15 MM
61 8857798 ADJUSTING RING SP=1,95 MM
62 8857799 ADJUSTING RING SP=1,85 MM
63 8857800 ADJUSTING RING SP=1,75 MM
64 8857801 ADJUSTING RING SP=1,65 MM
65 8857802 ADJUSTING RING SP=1,55 MM
66 8857803 ADJUSTING RING SP=1,45 MM
67 8859653 ADJUSTING RING SP=1 MM
68 8859654 ADJUSTING RING SP=1,05 MM
69 8859655 ADJUSTING RING SP=1,1 MM
70 8859656 ADJUSTING RING SP=1,15 MM
71 8859657 ADJUSTING RING SP=1,2 MM
72 8859658 ADJUSTING RING SP=1,25 MM
73 8859659 ADJUSTING RING SP=1,3 MM
74 8859660 ADJUSTING RING SP=1,35 MM
75 8868295 SET OF SHIMS
76 8868304 STOP WASHER
