8140SRC20.30

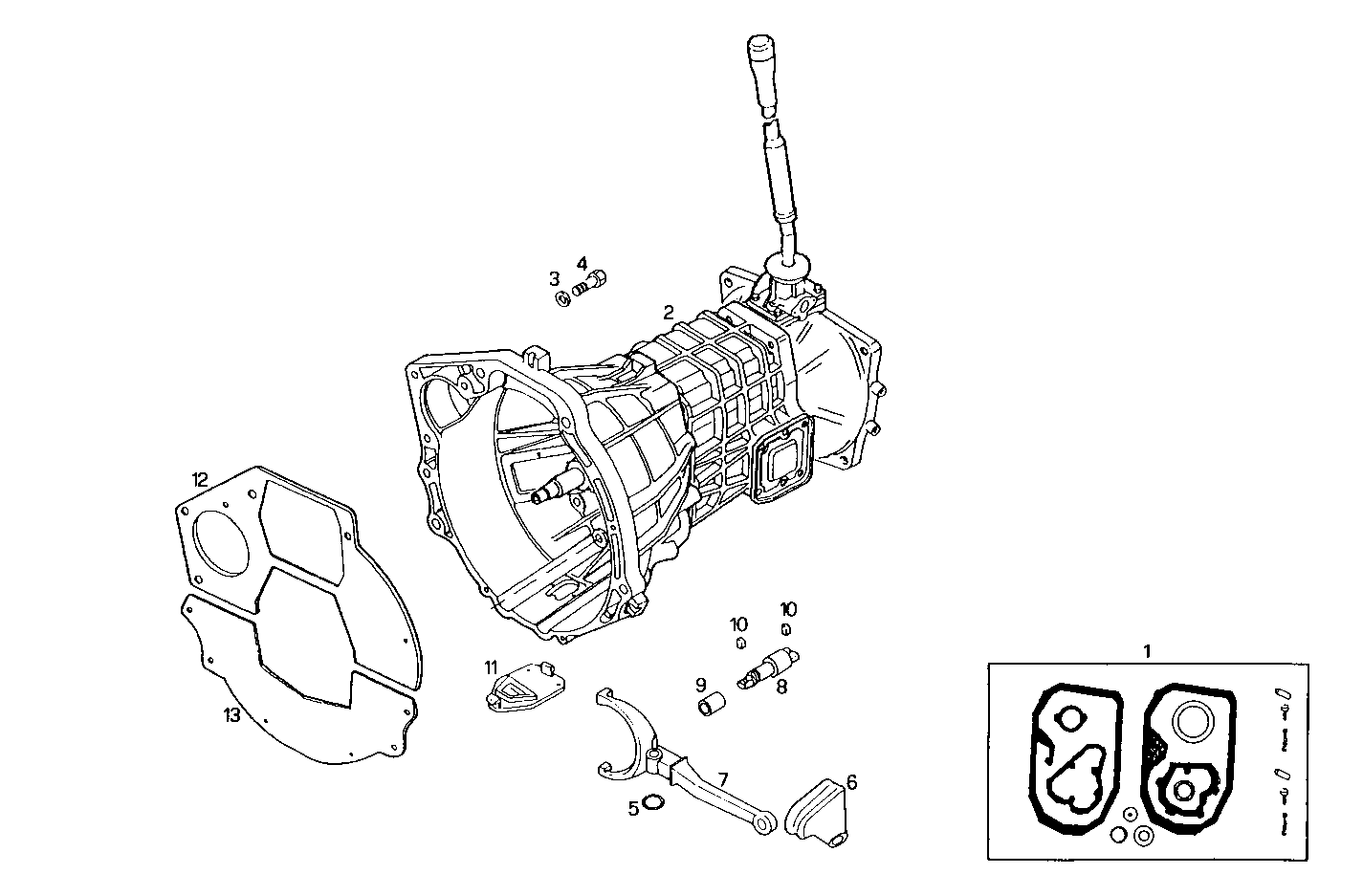

A27510007/01 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 8859615 | KIT-GEAR BOX |
| 2 | 8868233 | GEAR BOX/I LHD |
| 3 | 17091074 | WASHER Ø12X24X2,8 MM |
| 4 | 15540921 | HEXAGON BOLT M12X1,25X55 MM |
| 5 | 16865873 | SPRING LOCKWASHER |
| 6 | 42116732 | PROTECTIVE HOOD |
| 7 | 42116734 | CLUTCH LEVER |
| 8 | 42116735 | LEVER SHAFT |
| 9 | 42116740 | BUSH |
| 10 | 42118054 | DOWEL PIN |
| 11 | 98441226 | COVER |
| 12 | 93801370 | PROTECTION TOP |
| 13 | 8868444 | PROTECTION |
