8140SRC20.30

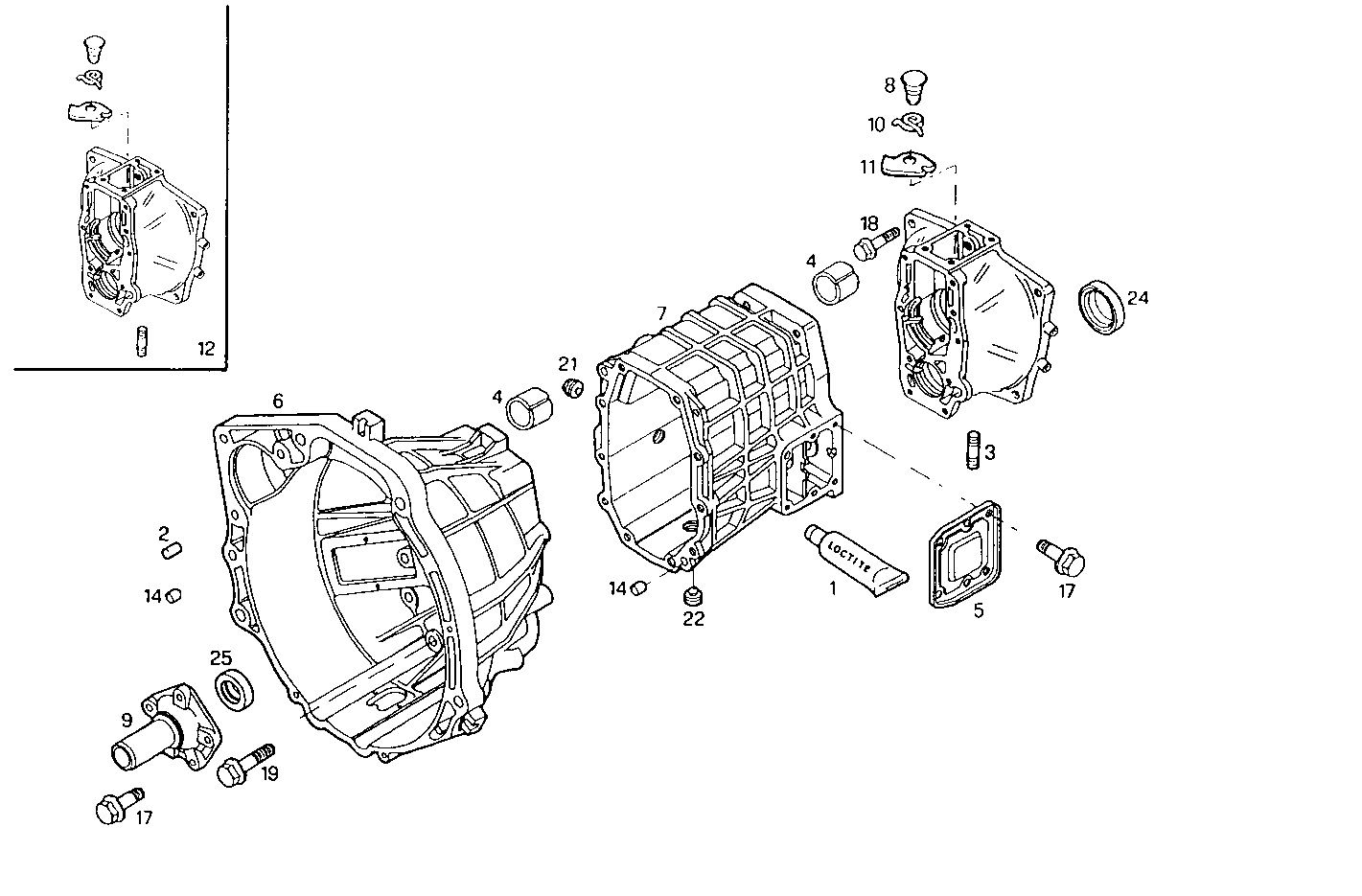

A27510007/02 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 1905685 | ADHESIVE/STICKER LOCTITE |
| 2 | 4647524 | DOWEL PIN |
| 3 | 12429421 | STUD M8X20 MM |
| 4 | 8858033 | BUSH |
| 5 | 8858617 | SIDE G.BOX COVER |
| 6 | 8868443 | CLUTCH HOUSING |
| 7 | 8868149 | TRANSMISSION CASE |
| 8 | 8858898 | PIN |
| 9 | 8858638 | FRONT G.BOX COVER |
| 10 | 8859479 | SPRING |
| 11 | 8859480 | STOP |
| 12 | 8859493 | TRANSMISSION CASE ASSY |
| 14 | 10839810 | DOWEL PIN Ø12 MM |
| 17 | 16586421 | SCREW M8X1,25 |
| 18 | 16586524 | HEXAGON BOLT M8X30 MM |
| 19 | 16592824 | HEXAGON BOLT M10X70 MM |
| 21 | 16996511 | THREADED PLUG M22X1,5 |
| 22 | 16998511 | THREADED PLUG M22X1,5 |
| 24 | 40000160 | SHAFT SEAL Ø53X68 MM SP=10 MM |
| 25 | 40100791 | SHAFT SEAL Ø30X47 MM SP=8 MM |
