8140SRC20.30

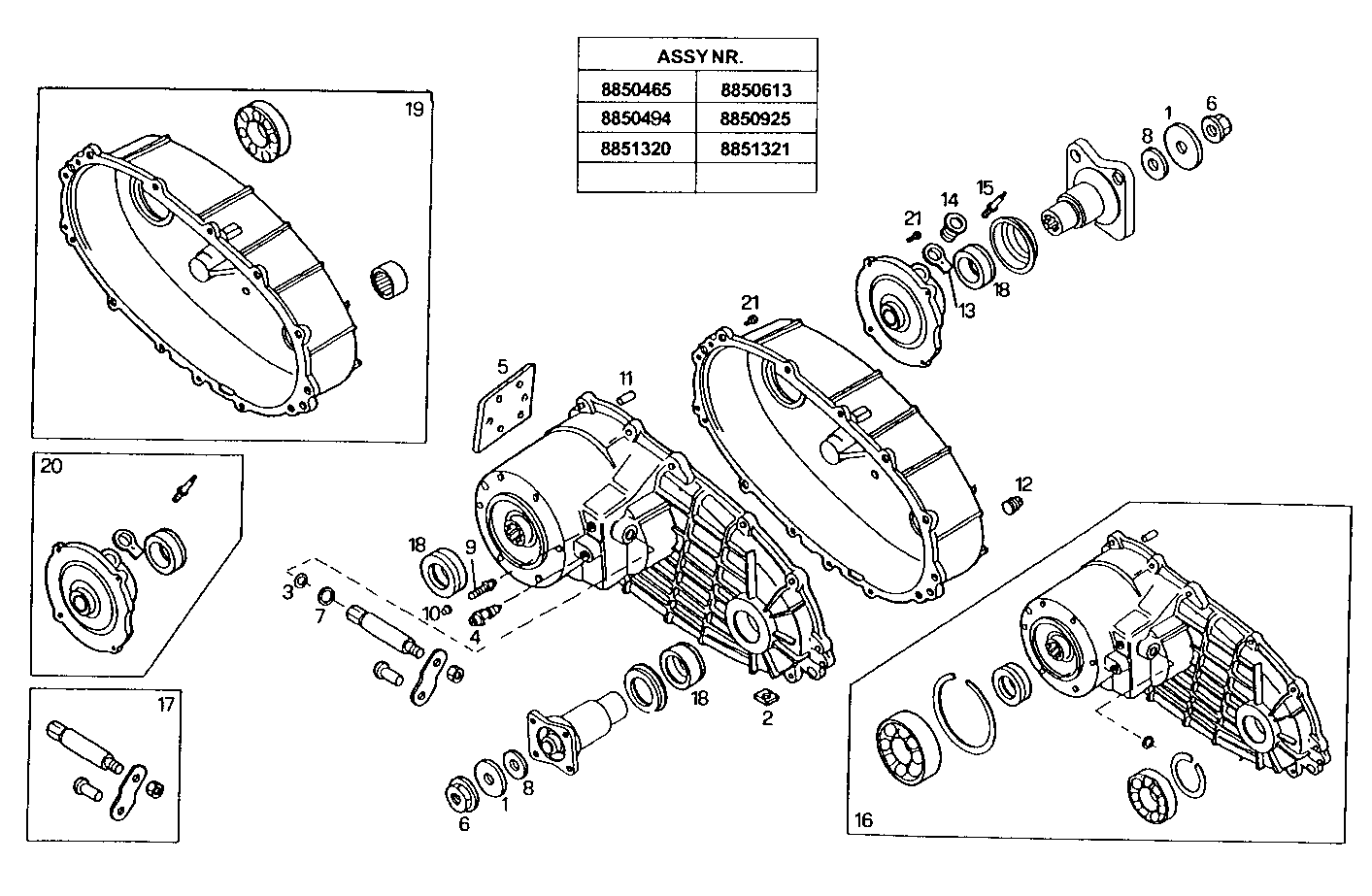

A27510007/07 TRANSMISSION GROUP - Left hand drive 2826.5
| Item |
Part number |
Description |
|
1 |
8121475 |
WASHER |
|
2 |
8121476 |
LOCKING PLATE |
|
3 |
8121497 |
CIRCLIP |
|
4 |
4858666 |
SWITCH |
|
5 |
42531528 |
COVER |
|
6 |
8851425 |
WING NUT |
|
7 |
8198736 |
WASHER |
|
8 |
8851424 |
WASHER |
|
9 |
8198738 |
BREATHER CONN. |
|
10 |
8198739 |
PLUG |
|
11 |
8198741 |
PIN |
|
12 |
8198743 |
THREADED PLUG |
|
13 |
8198746 |
PLATE |
|
14 |
8198747 |
THREADED PLUG |
|
15 |
8198748 |
PIN |
|
16 |
93193215 |
TRANSFER BOX CASE ASSY |
|
17 |
93156723 |
SHAFT ASSY |
|
18 |
93192159 |
WASHER |
|
19 |
93156725 |
TRANSF.CASE COVER ASSY |
|
20 |
93156726 |
COVER ASSY |
|
21 |
93155065 |
SCREW |
