8140SRC20.30

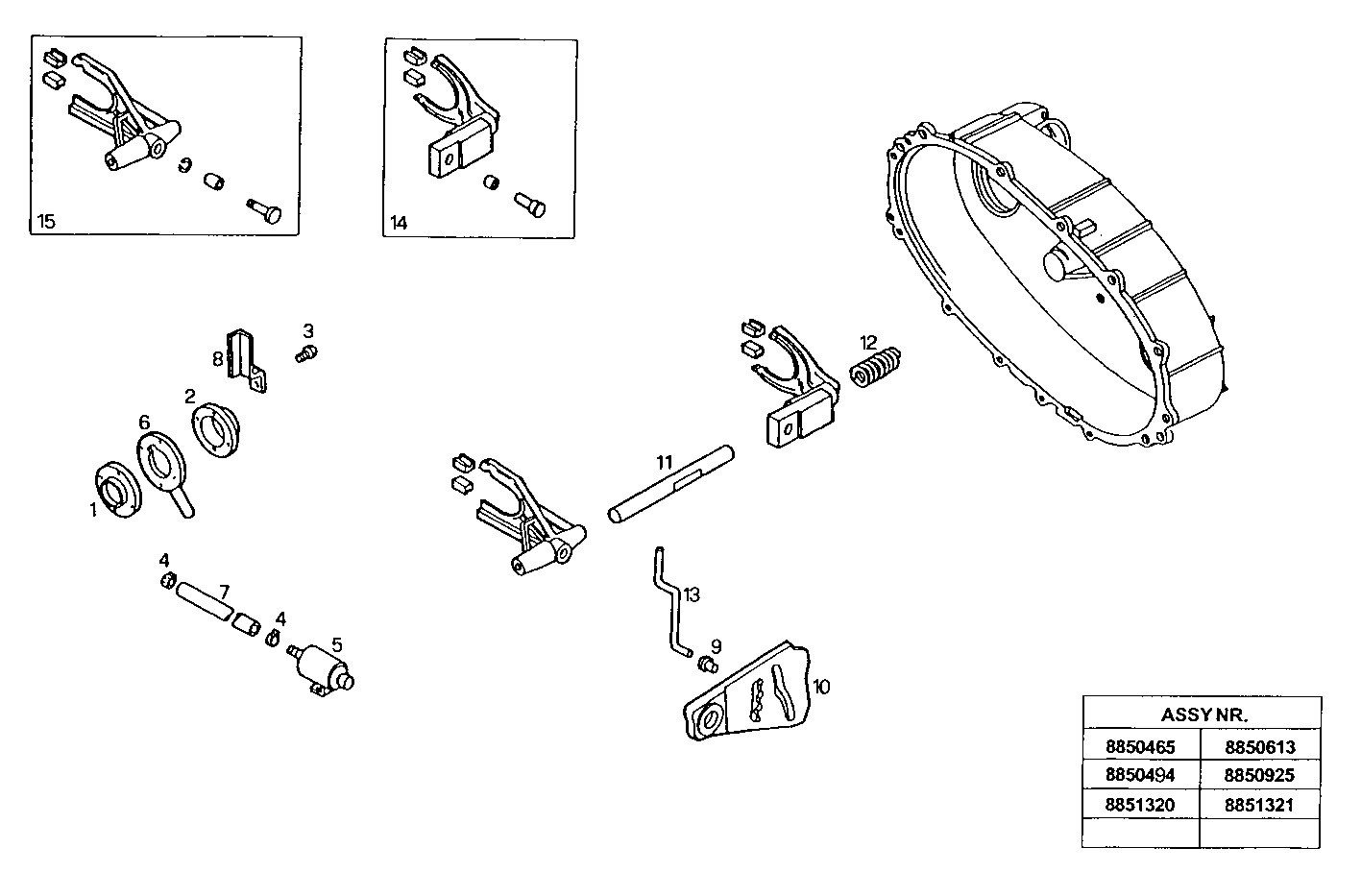

A27510007/08 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 8121480 | COVER FRONT |
| 2 | 8121482 | COVER REAR |
| 3 | 8121483 | SCREW |
| 4 | 8121485 | CLIP |
| 5 | 8121487 | FILTER |
| 6 | 8190521 | PUMP HOUSING |
| 7 | 8198749 | PIPE |
| 8 | 8198750 | PLATE |
| 9 | 8198753 | PIN |
| 10 | 93193227 | PLATE |
| 11 | 8198757 | SHIFT FORK ROD |
| 12 | 93191678 | SPRING |
| 13 | 8198761 | SPRING |
| 14 | 93190886 | SHIFT FORK ASSY |
| 15 | 93190887 | SHIFT FORK ASSY |
