8140SRC20.30

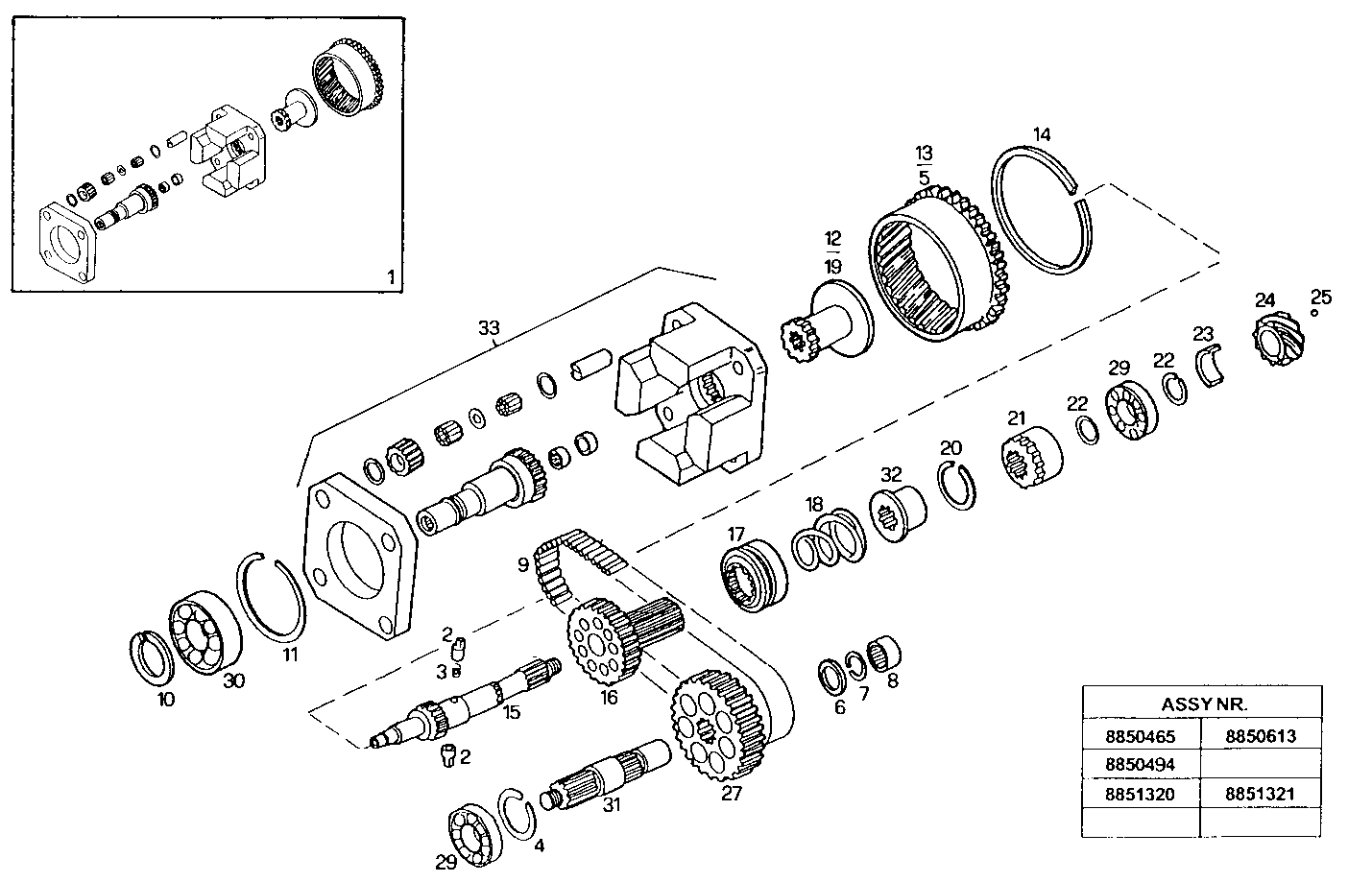

A27510007/09 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 42530586 | KIT-SPLITTER [from ...] |
| 2 | 8121514 | PIN |
| 3 | 8121515 | SPRING |
| 4 | 8121526 | RING |
| 5 | 42530585 | G.BOX INT.RINGGEAR [from ...] |
| 6 | 8121532 | WASHER |
| 7 | 8121533 | SPRING LOCKWASHER |
| 8 | 8121534 | REDUCT.GEAR BEAR. |
| 9 | 8190519 | CHAIN |
| 10 | 8198762 | SPRING LOCKWASHER |
| 11 | 8198763 | SPRING LOCKWASHER |
| 12 | 8198767 | SHAFT [up to ...] |
| 13 | 8198768 | G.BOX INT.RINGGEAR [up to ...] |
| 14 | 8198769 | SPRING LOCKWASHER |
| 15 | 8198774 | OUTPUT SHAFT |
| 16 | 8198775 | SPLITTER GEAR |
| 17 | 8198776 | CONNECTOR SLEEVE |
| 18 | 8198777 | SPRING |
| 19 | 42530584 | SHAFT [from ...] |
| 20 | 8198779 | SPRING LOCKWASHER |
| 21 | 8198780 | GEAR BOX HUB |
| 22 | 8198781 | SPRING LOCKWASHER |
| 23 | 8198782 | SPACING BAR |
| 24 | 8198783 | WORM |
| 25 | 8198784 | BALL |
| 27 | 8198786 | SPLITTER GEAR |
| 29 | 1109057 | DRIVE BEARING |
| 30 | 28042500 | ENGINE BEARINGS |
| 31 | 93190844 | OUTPUT SHAFT |
| 32 | 93193226 | GEAR BOX HUB |
| 33 | 93193251 | SUPPORT ASSY [up to ...] |
