8140SRC21.00

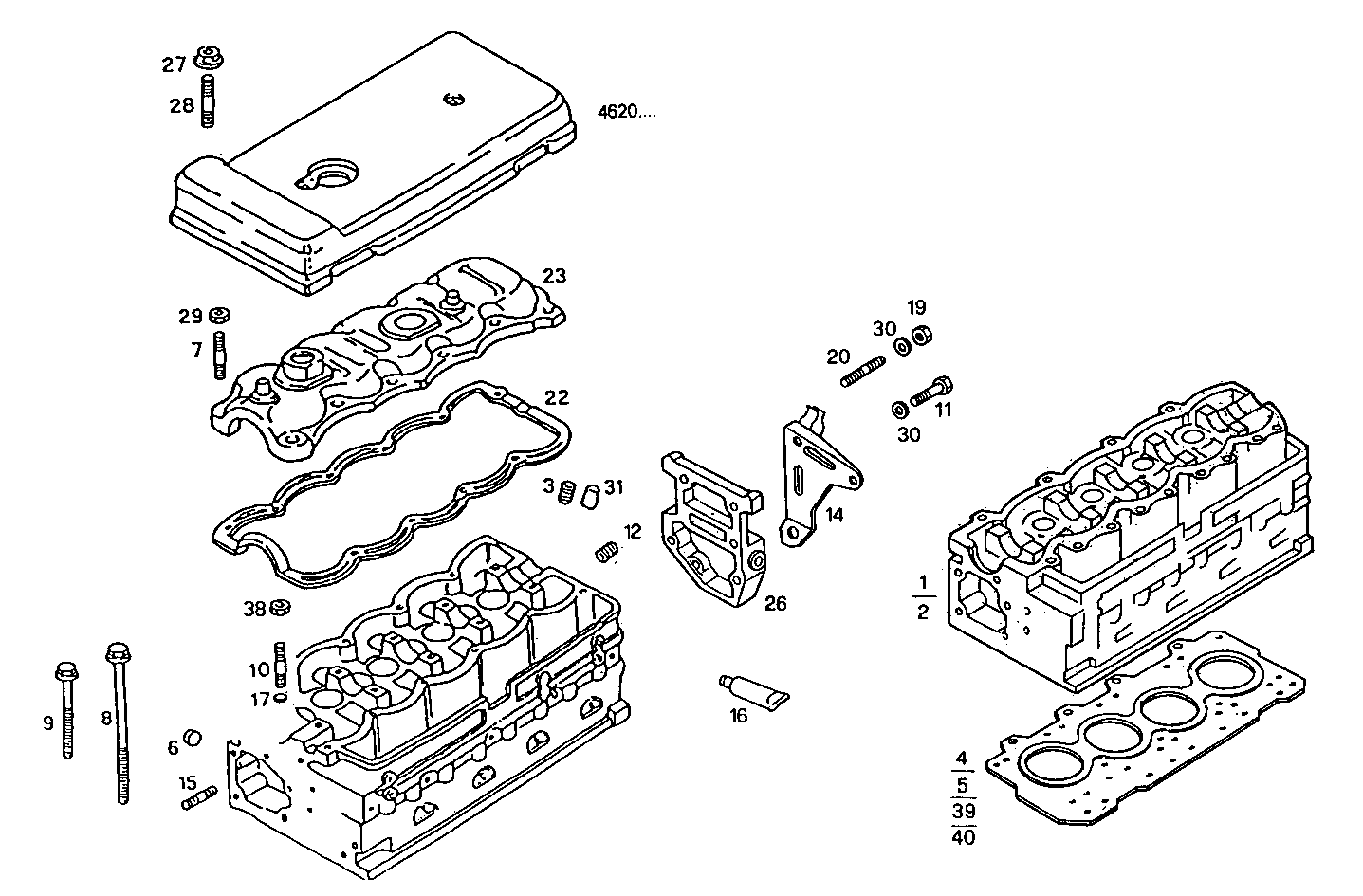

0600.159/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99443889 CYLINDER HEAD ASSY
2 99443890 CYLINDER HEAD ASSY +0,2 MM
3 4279430 THREADED BUSH M14X1,5X20 MM
4 99432354 CYL.HEAD GASKET SP=1,2 MM
5 99432353 CYL.HEAD GASKET SP=1,3 MM
6 14281970 LOCK PLUG Ø12 MM
7 17364824 STUD M6X30 MM
8 4854648 CYL.HEAD STUD M12X1,25X163 MM
9 4828150 CYL.HEAD STUD M12X1,25X119 MM
10 13543924 STUD M8X16X45 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 14326001 THREADED PLUG M10X1,25
14 500343158 FASTENING BRACKET
15 16745124 STUD M6X25 MM
16 93162432 ADHESIVE/STICKER
17 98466492 DOWEL PIN [from 1671414]
19 17037931 HEXAGON NUT M8X1,25
20 16729724 STUD M8X40 MM
22 500317403 HEAD COVER GASKET
23 98498877 CYL. HEAD COVER BOTTOM
26 500332067 COVER REAR CYLINDER HEAD
27 98439382 NUT
28 16727624 STUD M6X16 MM
29 17152721 NUT M6
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 4279663 DOWEL PIN
38 99486342 HEXAGON NUT M8X1,25
39 99460983 CYL.HEAD GASKET SP=1,4 MM
40 99458402 CYL.HEAD GASKET SP=1,50 MM
