8140SRC21.00

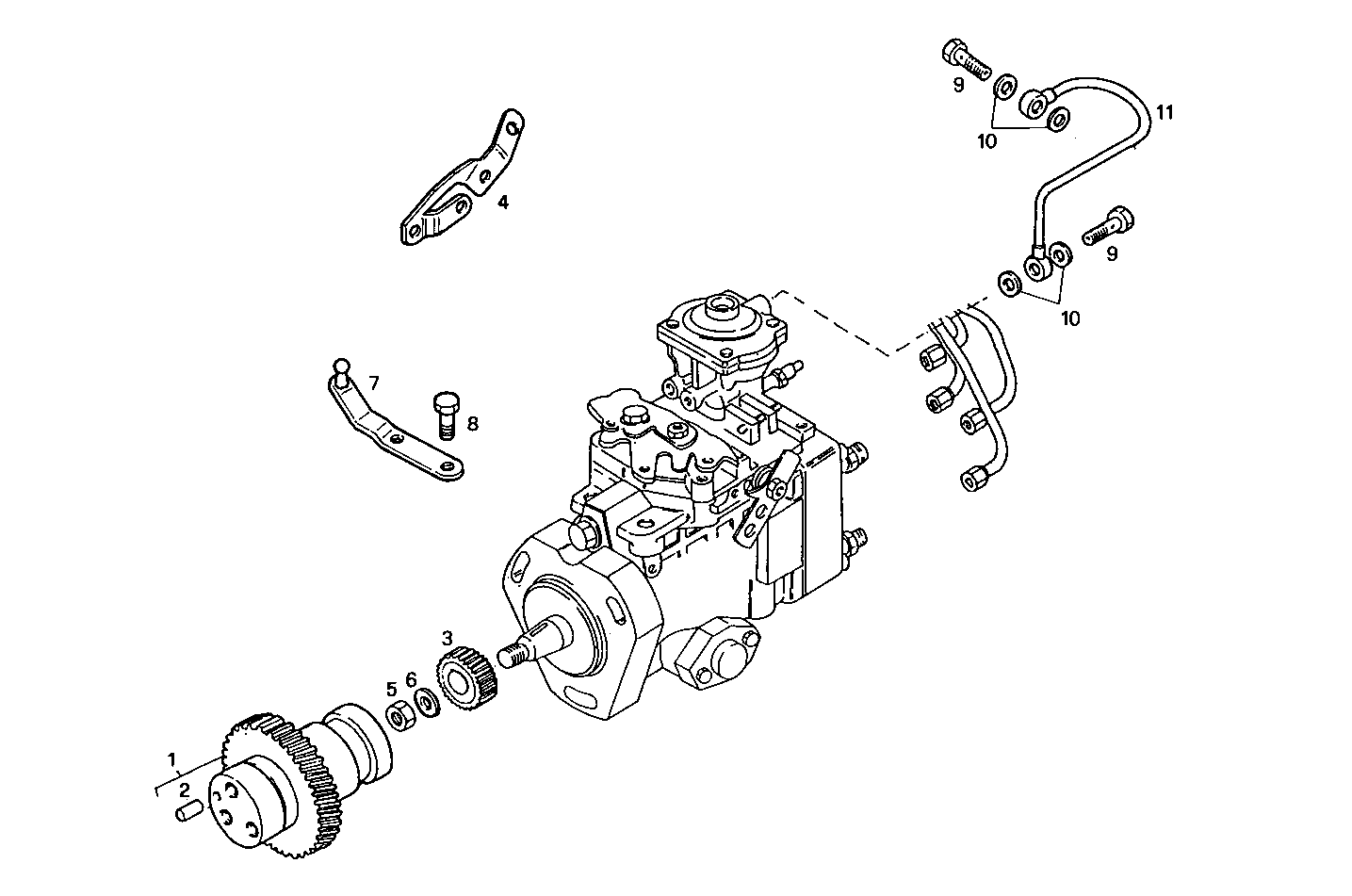

1410.084 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99483335 | INJECT.PUMP SPIND ASSY |
| 2 | 10335910 | PARALLEL PIN |
| 3 | 98457105 | INJECT.PUMP BUSH 205° |
| 4 | 500332328 | RETAINER |
| 5 | 17043231 | NUT M14X1,5 |
| 6 | 773416 | CIRCLIP [up to 1992414] |
| 7 | 500332325 | LEVER |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 9 | 11904011 | SCREW CONNECTOR |
| 10 | 10262760 | SEAL GASKET Ø8,2 MM |
| 11 | 500332309 | FUEL LINE |
