8140SRC21.00

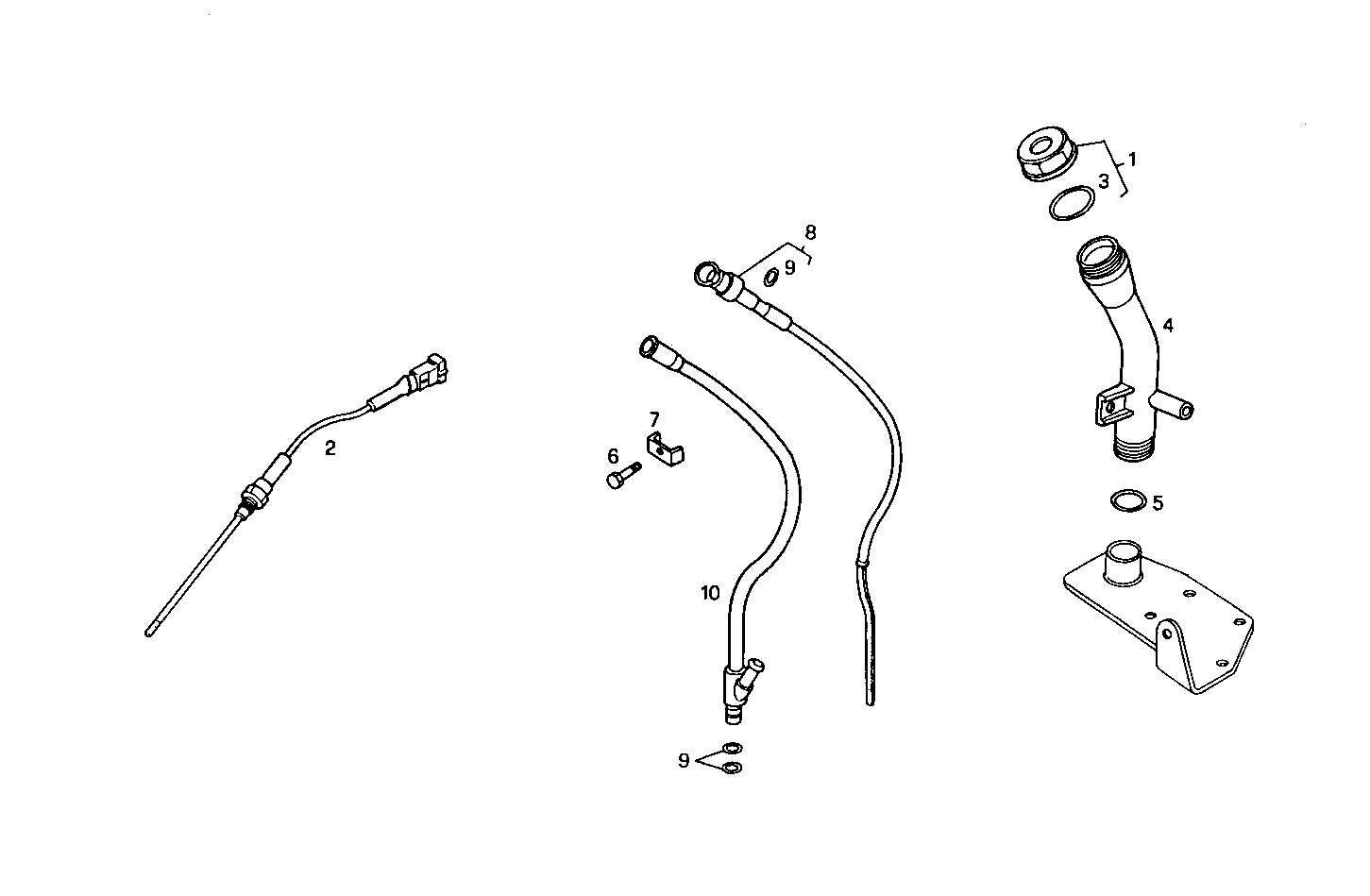

2710.076 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 500325018 | OIL LEVEL SENSOR |
| 3 | 17295480 | O-RING 5,33x37,46 |
| 4 | 99470999 | OIL FILLER PIPE |
| 5 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 6 | 16673734 | HEXAGON BOLT M8X25 MM |
| 7 | 4716870 | RETAINER |
| 8 | 500352874 | OIL DIPSTICK ASSY |
| 9 | 17277981 | O-RING 1,78x9,25 |
| 10 | 500352877 | OIL LEVEL TUBE |
