8140SRC30.00

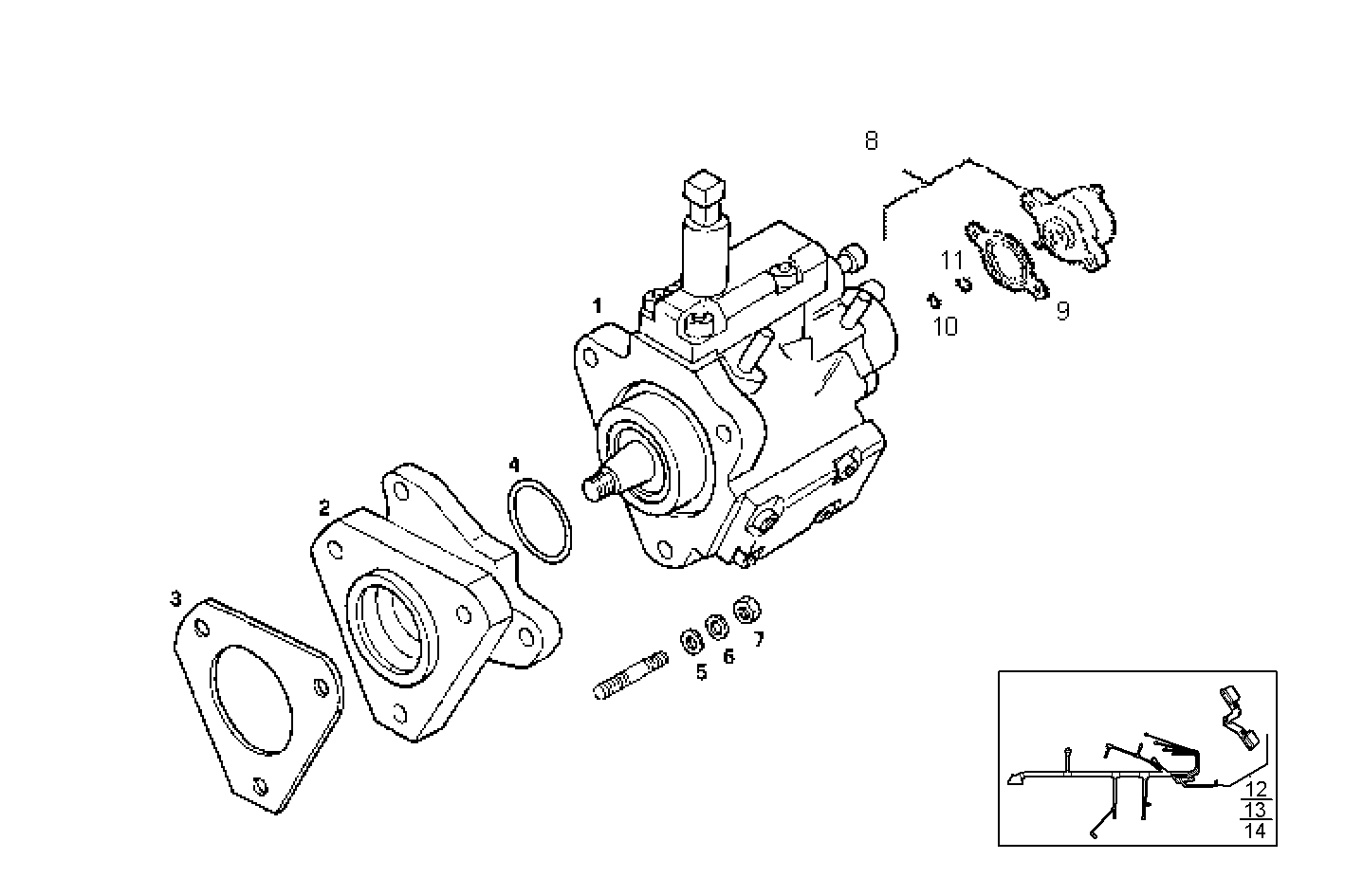

1400.100 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 99483254 | HIGH PRESSURE PUMP |
| 2 | 500354490 | SUPPORT |
| 3 | 4851923 | FLAT ENGINE GASKET |
| 4 | 500319674 | O-RING Ø45 MM |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 42538165 | GOVERNOR/REGULATOR |
| 9 | 42538467 | FLAT ENGINE GASKET |
| 10 | 42541075 | O-RING |
| 11 | 42541074 | GASKET |
| 12 | 500353704 | SET OF WIRING ENGINE [UP TO # 3249778] |
| 13 | 500398046 | SET OF WIRING ENGINE [UP TO # 3487098] |
| 14 | 504032955 | SET OF WIRING ENGINE [FROM 3487099] |
