8140SRC30.00

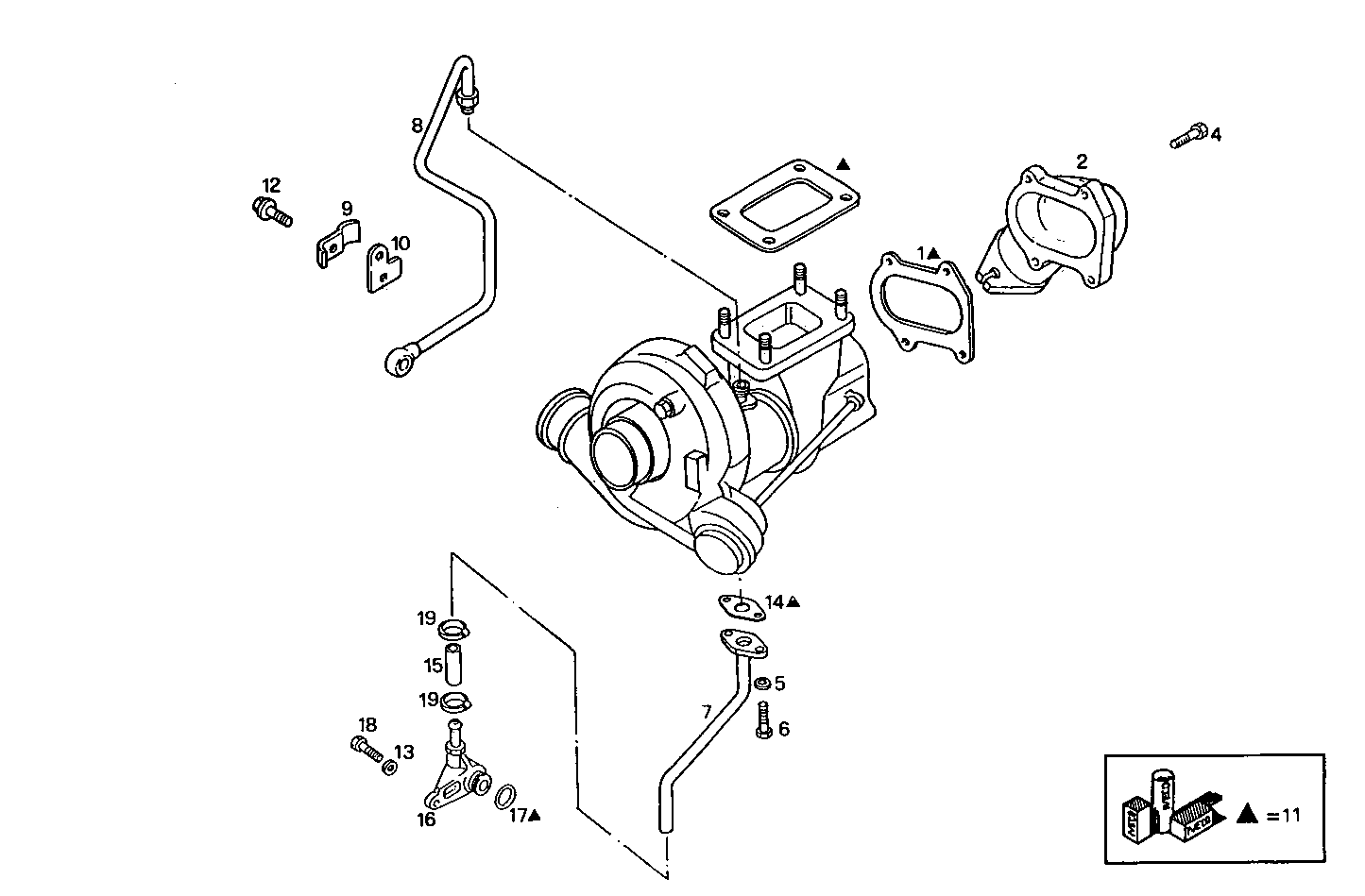

2420.168 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98484659 | FLAT ENGINE GASKET |
| 2 | 99462592 | AIR PIPE/DUCT |
| 4 | 16673834 | HEXAGON BOLT M8X30 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 16585724 | HEXAGON BOLT M6X16 MM |
| 7 | 500344909 | OIL LINE |
| 8 | 99462609 | OIL LINE |
| 9 | 98487328 | FASTENING BRACKET |
| 10 | 500318425 | RETAINER |
| 11 | 500366293 | KIT-SEAL.GASKETS |
| 12 | 16597924 | HEXAGON BOLT M8X14 MM |
| 13 | 17095125 | WASHER |
| 14 | 99436992 | FLAT ENGINE GASKET |
| 15 | 500313648 | RUBBER SLEEVE Ø12 MM |
| 16 | 98499352 | FLANGED SOCKET |
| 17 | 14462881 | O-RING SP=3,53 MM |
| 18 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 19 | 98463346 | CLIP Ø15-22 MM |
