8140SRC30.00

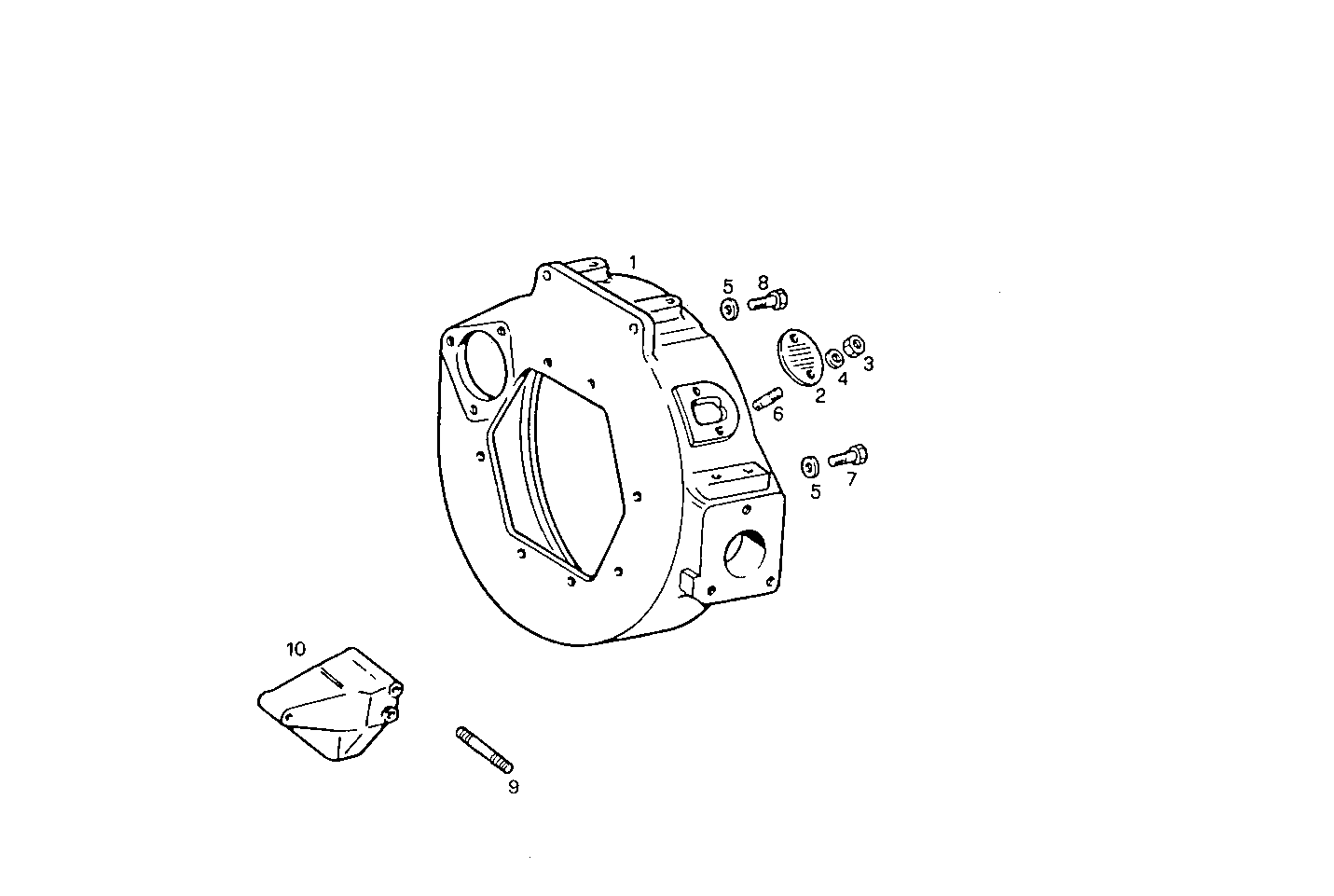

A03040006 FLYWHEEL HOUSING SAE 4
| Item | Part number | Description |
|---|---|---|
| 1 | 8029254 | FLYWHEEL HOUSING |
| 2 | 4540660 | COVER |
| 3 | 17037721 | NUT M5X0,8 |
| 4 | 17094504 | WASHER Ø5,3X10 MM |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 16743424 | STUD M5X10X10 |
| 7 | 15540721 | HEXAGON BOLT M12X45 MM |
| 8 | 15541021 | HEXAGON BOLT M12X1,25X60 MM |
| 9 | 13546521 | STUD M10X1,25X20X30 MM |
| 10 | 8029152 | SUPPORT |
