8140SRC30.00

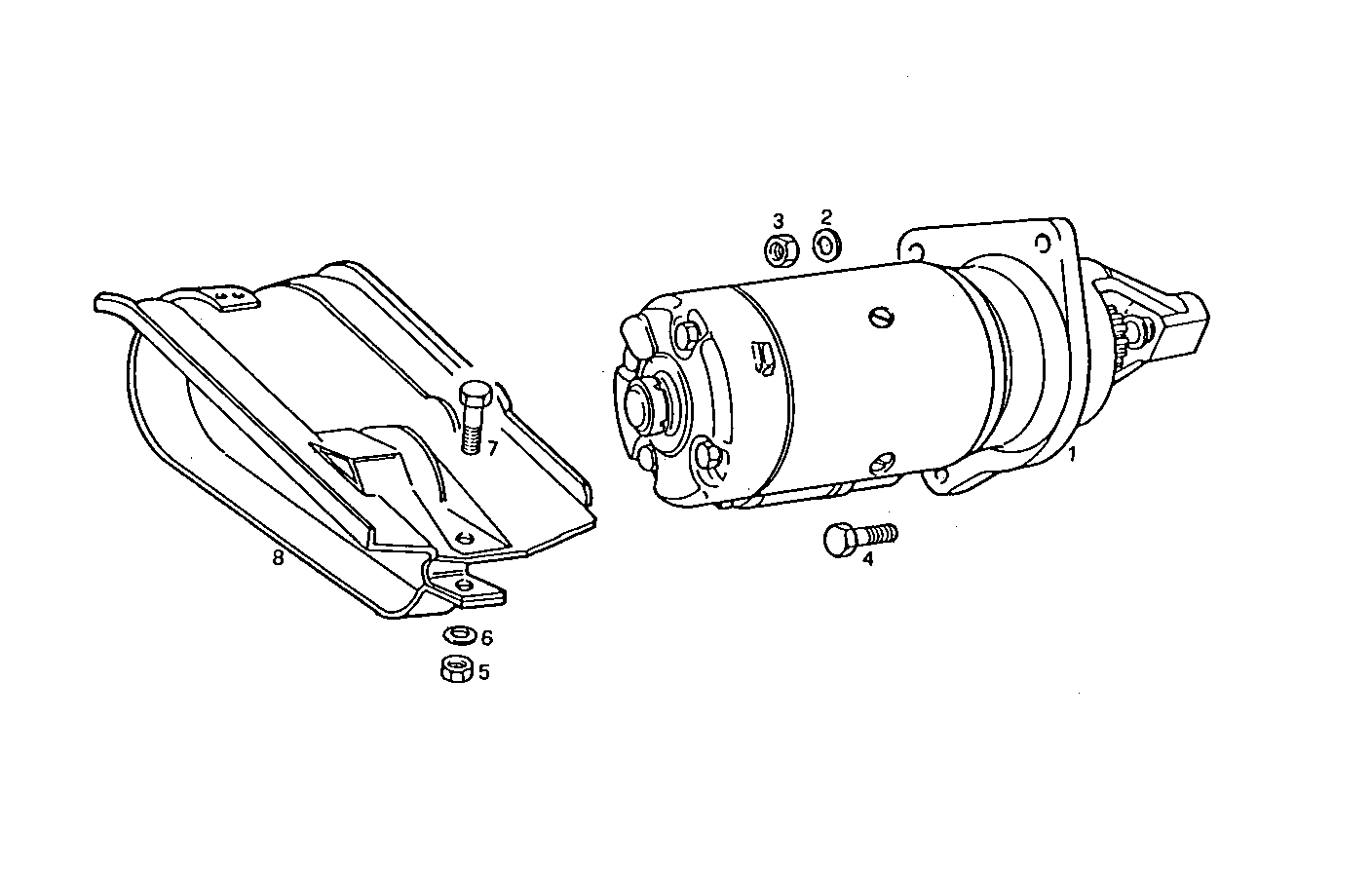

A10000030 STARTER MOTOR - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 4807379 | STARTER MOTOR ASSY MARELLI - 24V - OPT. [from 09-00] |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 17038221 | HEXAGON NUT M10 |
| 4 | 98473354 | BRACKET RIGHT [from 1739717] |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 11306921 | SCREW M10X1,25X30 |
| 8 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 8029324 | WATER PIPE |
| 10 | 17764591 | CLIP Ø20/32 MM |
