8140SRC30.20A001

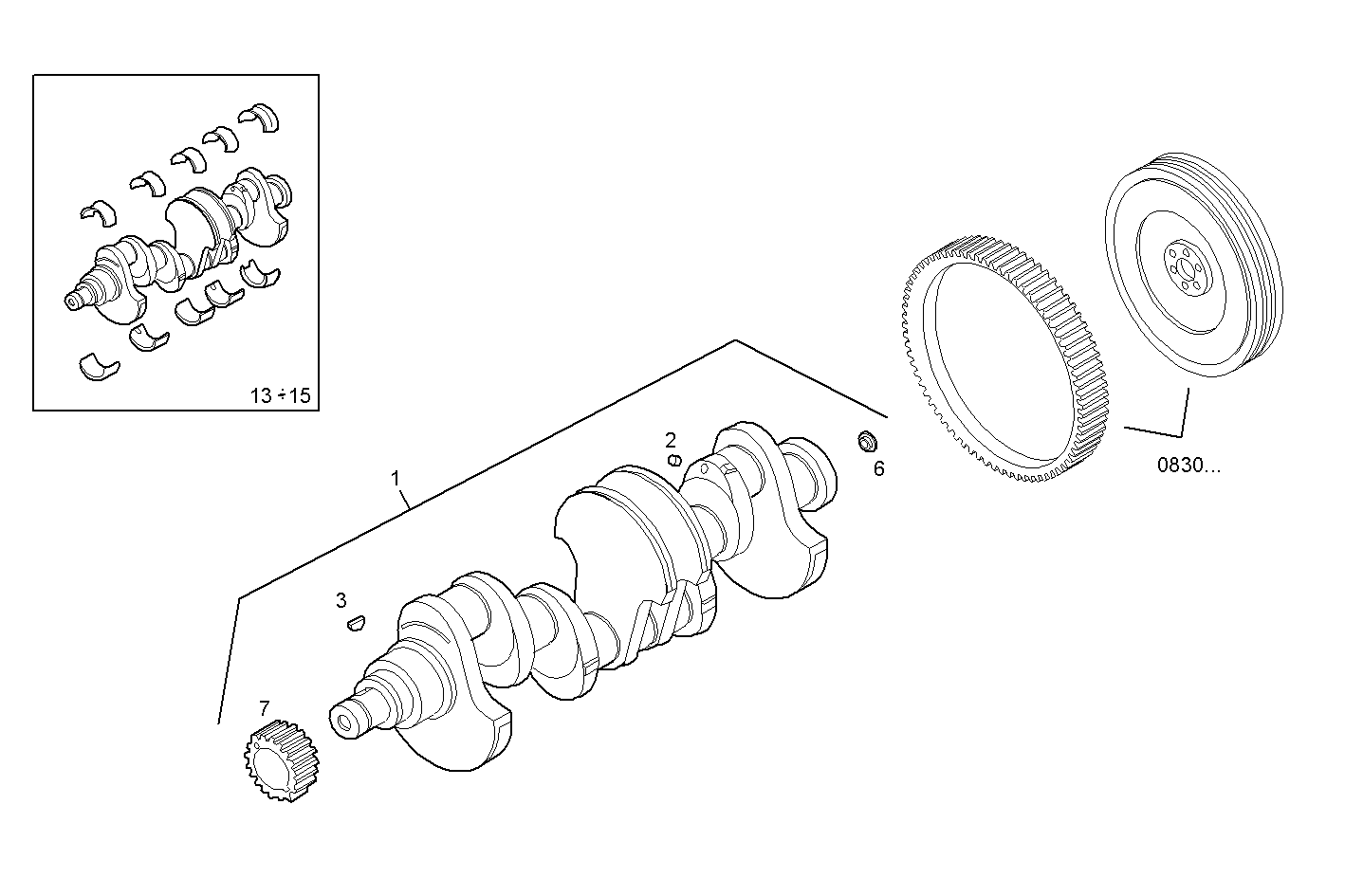

0800.155 CRANK SHAFT
| Item | Part number | Description |
|---|---|---|
| 1 | 504033129 | CRANK SHAFT ASSY |
| 2 | 14328101 | LOCK PLUG Ø8 MM |
| 3 | 4655844 | KEY |
| 6 | 98426373 | CENTERING RING [from 1307401] |
| 7 | 98419310 | GEAR ASSY |
| 13 | 99473771 | MAIN BEARING SET STD |
| 14 | 99473772 | MAIN BEAR.SET -0,254 |
| 15 | 99473773 | MAIN BEAR.SET -0,508 |
