8140SRC30.20A001

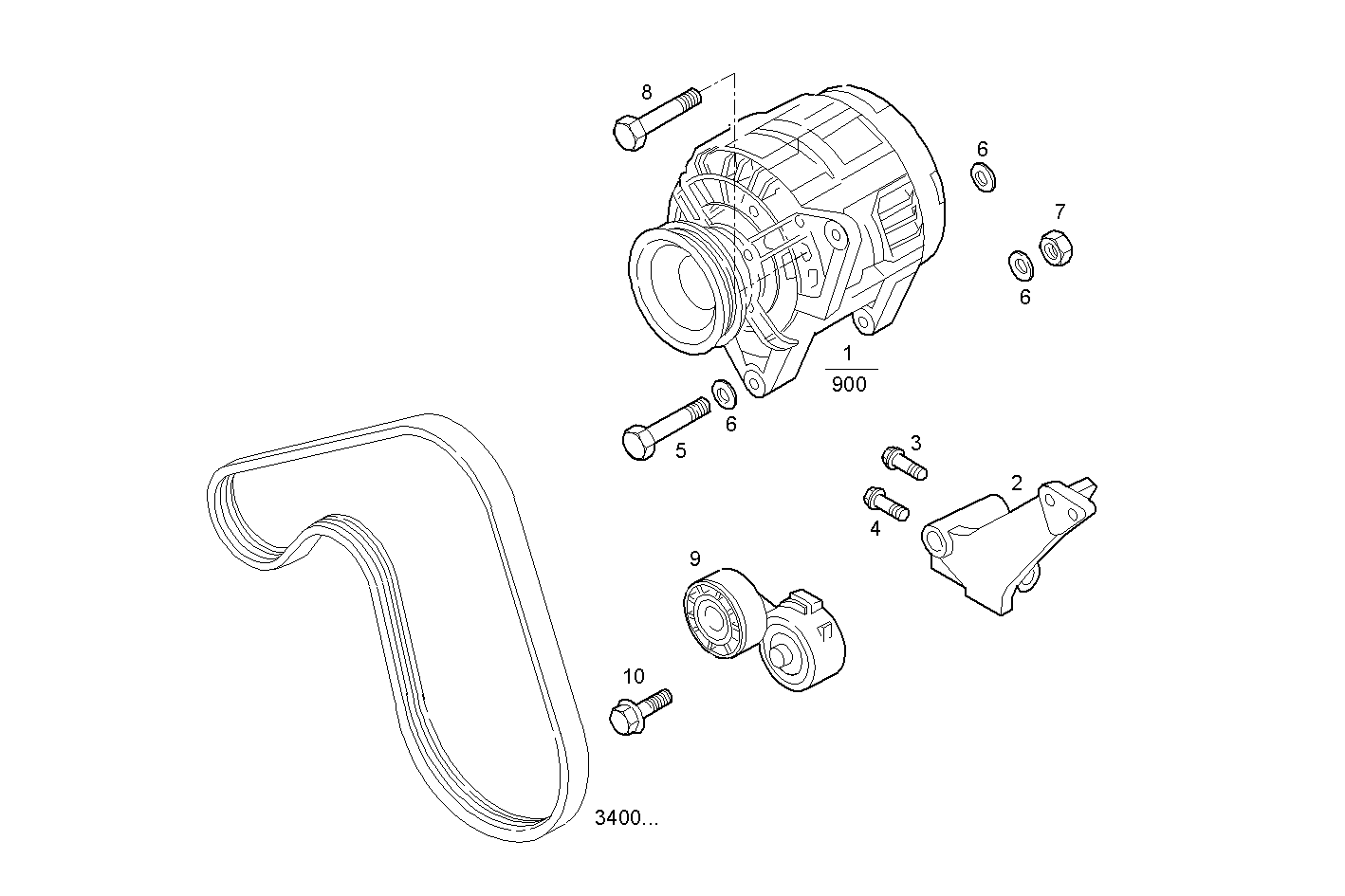

4000.180 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500317453 | ALTERNATOR ASSY |
| 2 | 500372423 | GENERATOR SUPPORT |
| 3 | 16289524 | HEXAGON BOLT |
| 4 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
| 5 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 6 | 17097124 | WASHER 10x21 |
| 7 | 14059421 | HEXAGON NUT M10X1,25 |
| 8 | 10923624 | SCREW |
| 9 | 500332622 | BELT TENSIONER |
| 10 | 16592225 | HEXAGON BOLT M8X55 MM |
