8140SRC30.20A001

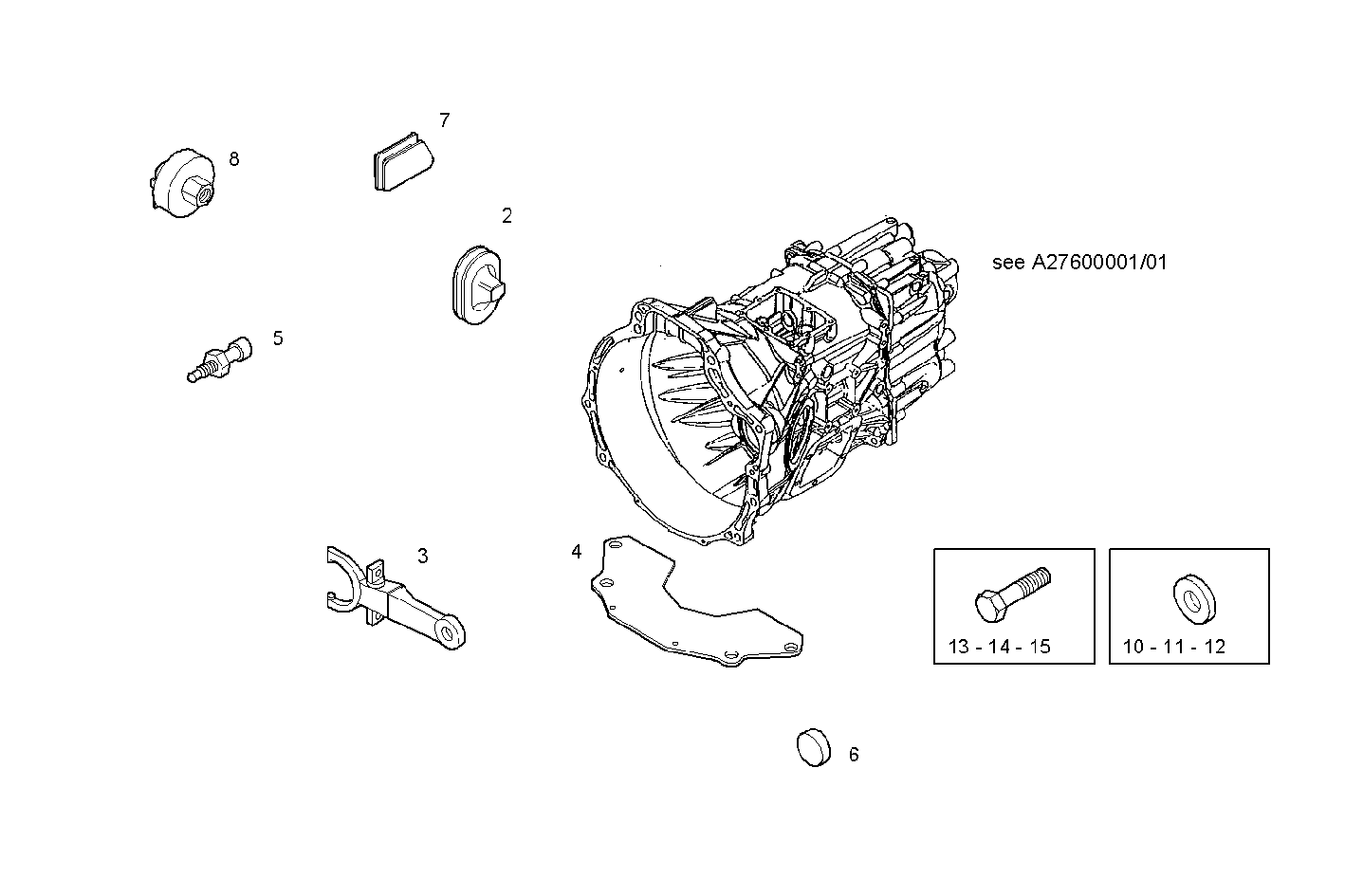

A27600001/02 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 2 | 99479450 | PROTECTIVE HOOD |
| 3 | 99479447 | SUPPORT |
| 4 | 8867988 | PROTECTION LOWER |
| 5 | 504075820 | ELECTRON.TRANSMITT |
| 6 | 504066904 | PLUG |
| 7 | 500361500 | RUBBER PLUG |
| 8 | 500335678 | REAR LIGHT SWITCH |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 17088474 | WASHER Ø6X12 MM |
| 13 | 16605824 | HEXAGON BOLT M8X35 MM |
| 14 | 16603524 | SCREW M6X12 MM (8.8) |
| 15 | 15540924 | HEXAGON BOLT |
