8140SRC30.20A001

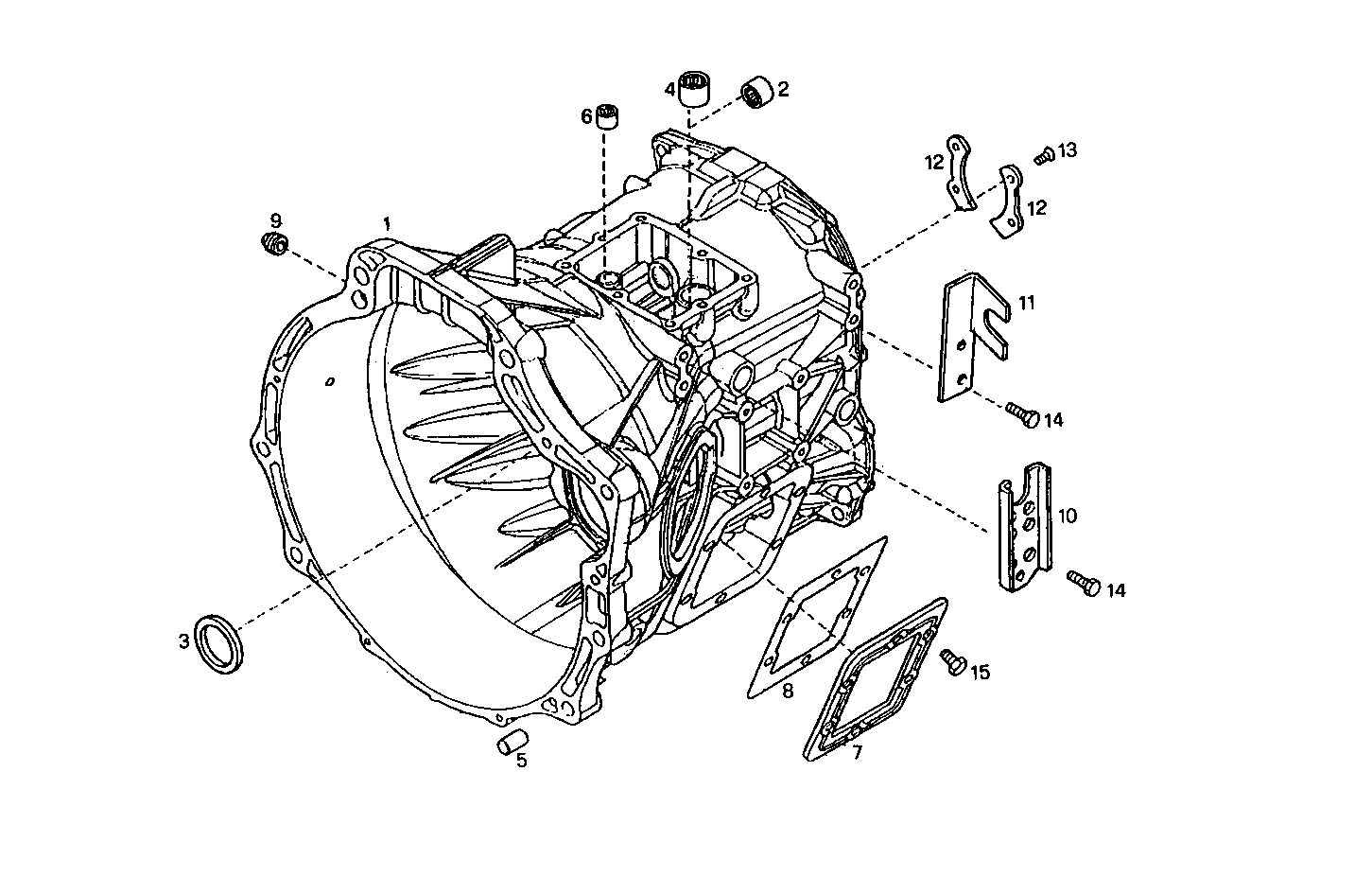

T2760001/01 TRANSMISSION - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 42534930 | TRANSMISSION CASE FRONT |
| 2 | 42534931 | BALL CAGE |
| 3 | 42534932 | SHAFT SEAL |
| 4 | 9920781 | GEARBOX BEARINGS |
| 5 | 8869098 | DOWEL PIN M12X1 |
| 6 | 42534933 | ROLLER CAGE |
| 7 | 42531475 | LOWER G.BOX COVER |
| 8 | 8190937 | FLAT GEARBOX GKT |
| 9 | 42534935 | THREADED PLUG M22X1,5 |
| 10 | 8868800 | SUPPORT |
| 11 | 42534936 | SUPPORT |
| 12 | 42534937 | LOCKING PLATE |
| 13 | 42534934 | SCREW M6X16 MM |
| 14 | 93160889 | HEXAGON BOLT M8X25 MM |
| 15 | 1127052 | HEXAGON BOLT M10X20 MM |
