8140SRC30.20A001

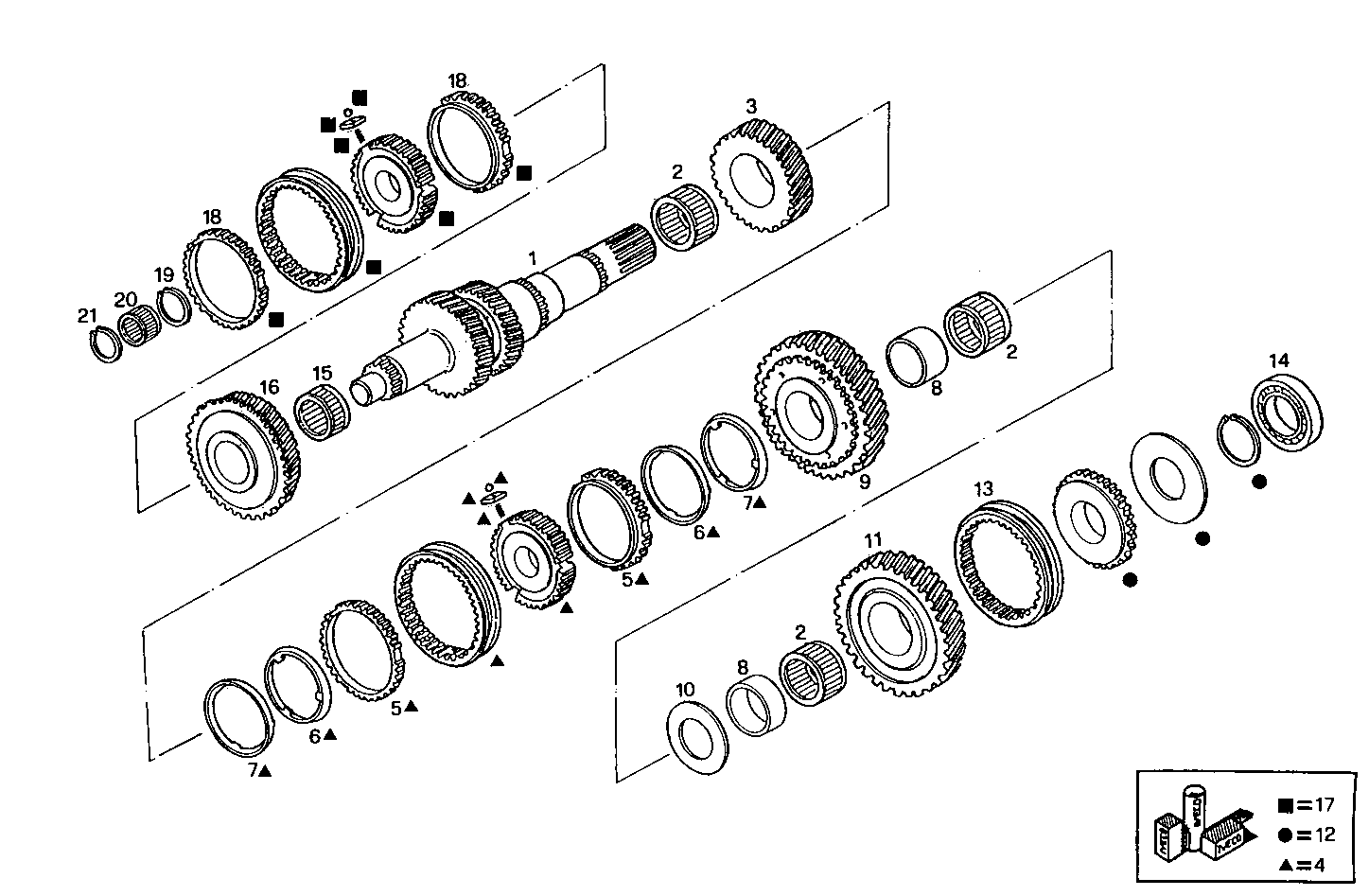

T2760001/06 TRANSMISSION - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 42535001 | MAIN SHAFT |
| 2 | 42535002 | ROLLER CAGE |
| 3 | 42535003 | SPLITTER GEAR |
| 4 | 42535004 | KIT-SYNCHRONIZER |
| 5 | 42535005 | SYNCHRONIZER |
| 6 | 42535006 | RING INTERMEDIATE |
| 7 | 42535007 | RING INNER |
| 8 | 42535008 | PLUG-IN SLEEVE |
| 9 | 42535009 | SPLITTER GEAR |
| 10 | 42535010 | STOP WASHER |
| 11 | 42535011 | SPLITTER GEAR REVERSE SPEED |
| 12 | 42535018 | SYNCHROMESH BODY |
| 13 | 42535012 | SLIDING SLEEVE |
| 14 | 42535013 | ROLLER BEARING |
| 15 | 42534986 | ROLLER CAGE |
| 16 | 42535014 | SPLITTER GEAR |
| 17 | 42535015 | KIT-SYNCHRONIZER |
| 18 | 42534984 | SYNCHRONIZER |
| 19 | 8193117 | CIRCLIP SP=2 MM |
| 20 | 42535016 | ROLLER CAGE |
| 21 | 42535017 | CIRCLIP |
