8140SRC30.20A001

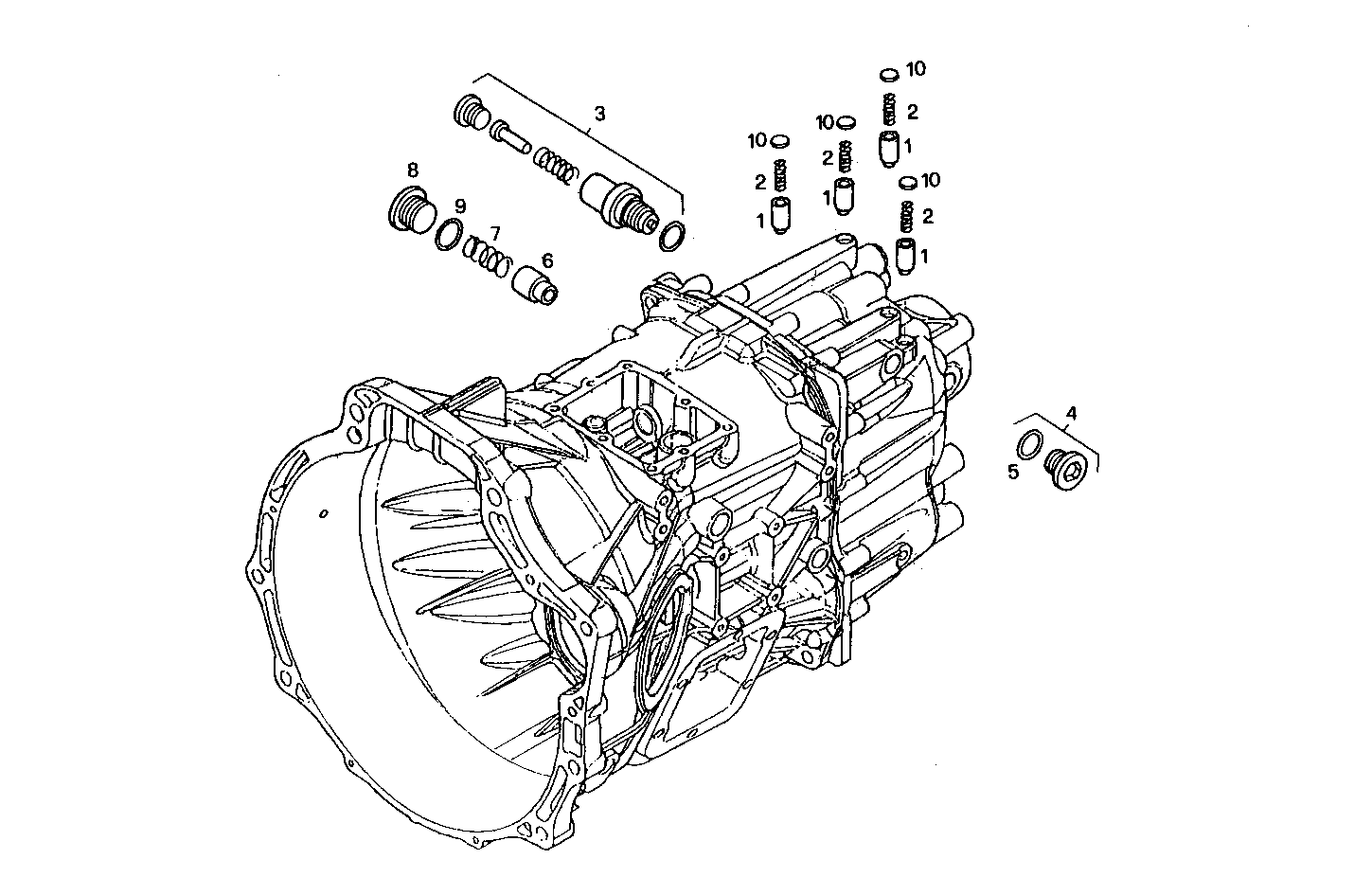

T2760001/08 TRANSMISSION - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8868646 | PIN |
| 2 | 42534969 | SPRING |
| 3 | 42534972 | STOP STOP |
| 4 | 7981964 | THREADED PLUG M18X1,5 |
| 5 | 93191550 | WASHER Ø18X24 MM |
| 6 | 42534971 | PIN |
| 7 | 8868650 | SPRING |
| 8 | 8868652 | PLUG M22X1,5 |
| 9 | 42500170 | GASKET |
| 10 | 1107614 | COVER |
