8140SRC30.20A003

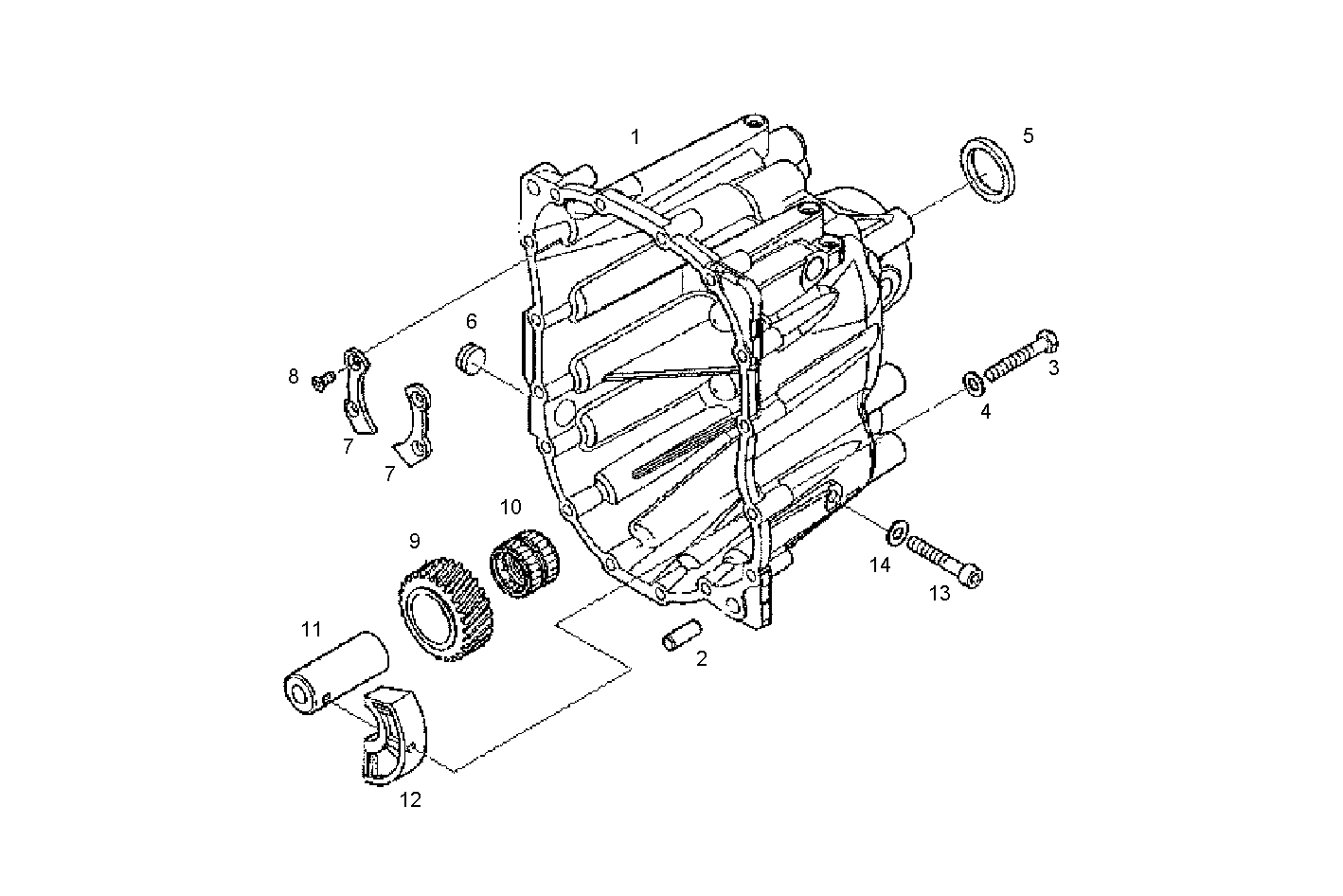

5301.002/02 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8870388 | TRANSMISSION CASE |
| 2 | 42535515 | DOWEL PIN |
| 3 | 42534940 | HEXAGON BOLT M8X55 MM |
| 4 | 14488821 | WASHER |
| 5 | 42538148 | SHAFT SEAL |
| 6 | 16996511 | THREADED PLUG M22X1,5 |
| 7 | 8869719 | LOCKING PLATE |
| 8 | 8871238 | C'SUNK SCREW M6X16 MM |
| 9 | 8869616 | REVERSE GEAR |
| 10 | 1905380 | ROLLER CAGE |
| 11 | 8869615 | RETURN SHAFT |
| 12 | 8869617 | SUPPORT |
| 13 | 93193271 | CYLIND-HEAD SCREW |
| 14 | 8868623 | WASHER Ø8,7X13 MM |
