8140SRC30.20A003

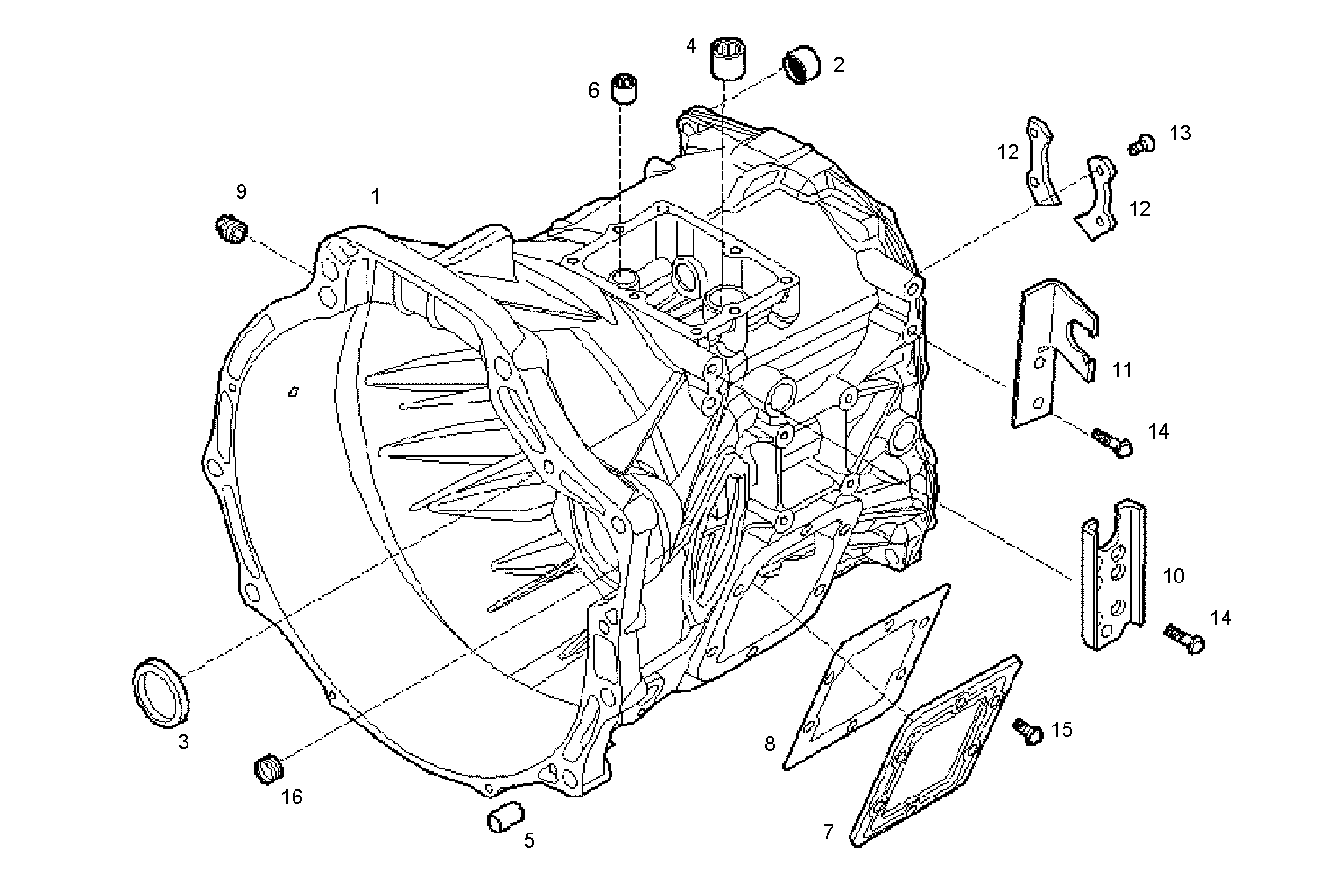

5301.002/03 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8869637 | TRANSMISSION CASE |
| 2 | 8868936 | BALL CAGE |
| 3 | 8870829 | SHAFT SEAL |
| 4 | 8870273 | GEARBOX BEARINGS |
| 5 | 8869098 | DOWEL PIN M12X1 |
| 6 | 8869714 | ROLLER CAGE |
| 7 | 8859471 | SIDE G.BOX COVER |
| 8 | 8870275 | FLAT GEARBOX GKT |
| 9 | 42534935 | THREADED PLUG M22X1,5 |
| 10 | 8868800 | SUPPORT |
| 11 | 8870507 | SUPPORT |
| 12 | 8869719 | LOCKING PLATE |
| 13 | 8871238 | C'SUNK SCREW M6X16 MM |
| 14 | 93160889 | HEXAGON BOLT M8X25 MM |
| 15 | 1127052 | HEXAGON BOLT M10X20 MM |
| 16 | 8870828 | SHAFT SEAL |
