8140SRC30.20A003

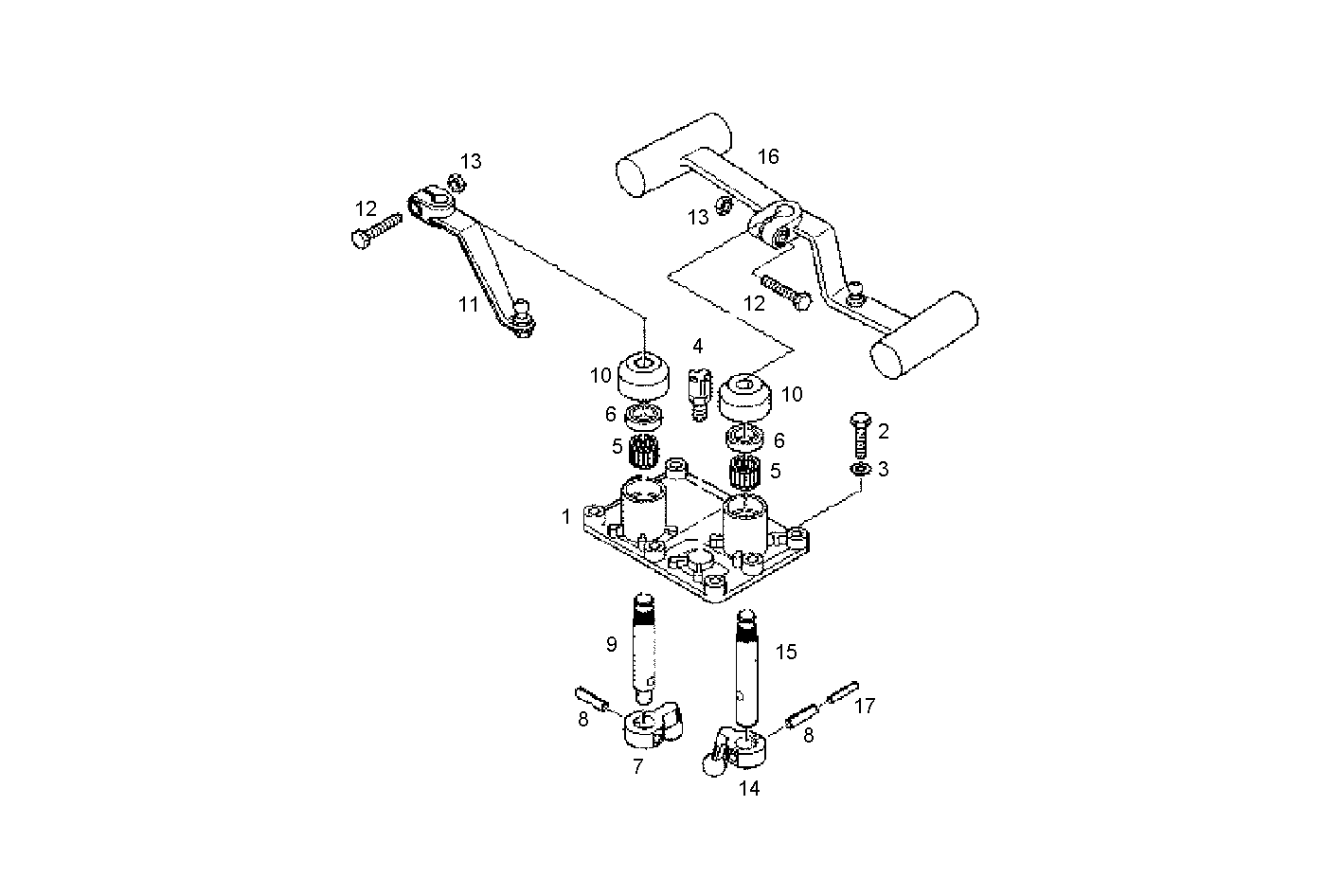

5301.002/04 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8868879 | HOUSING M22X1,5 |
| 2 | 1100233 | SCREW |
| 3 | 14488821 | WASHER |
| 4 | 17999691 | BREATHER |
| 5 | 8869714 | ROLLER CAGE |
| 6 | 40102753 | SHAFT SEAL |
| 7 | 42538164 | LEVER |
| 8 | 17259470 | DOWEL PIN Ø8 MM L=32 MM |
| 9 | 8868878 | GEAR SHIFT SHAFT M22X1,5 |
| 10 | 8868600 | CAP |
| 11 | 8871235 | GEARSHIFT LEVER |
| 12 | 42534977 | SCREW M8X40 |
| 13 | 9984331 | NUT |
| 14 | 42538158 | LEVER |
| 15 | 8868877 | GEAR SHIFT SHAFT M22X1,5 |
| 16 | 500342963 | GEARSHIFT LEVER |
| 17 | 17256070 | DOWEL PIN Ø5 MM L=32 MM |
