8140SRC30.20A003

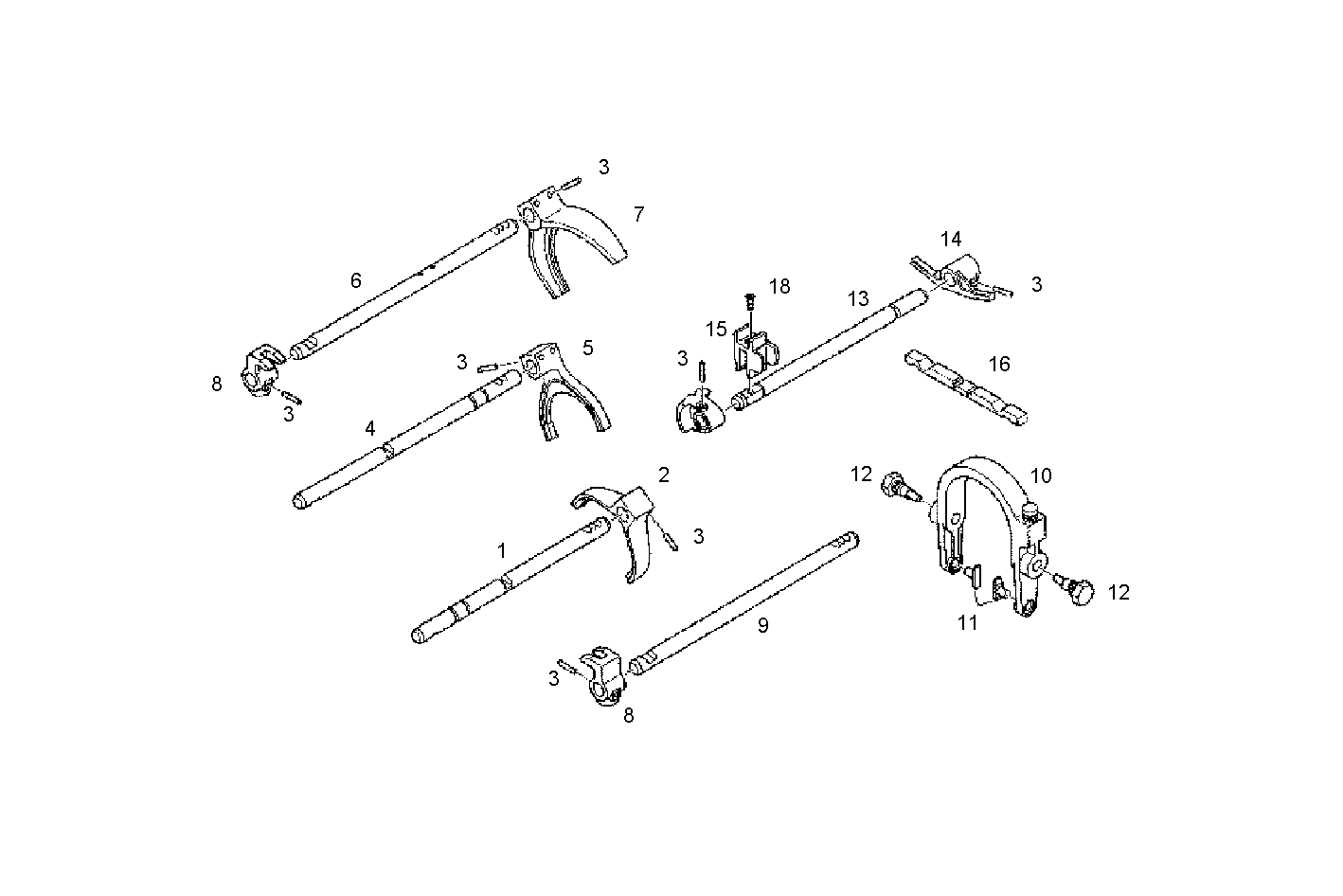

5301.002/05 TRANSMISSION
| Item |
Part number |
Description |
|
1 |
8869619 |
SHIFT FORK ROD |
|
2 |
8869626 |
SHIFT FORK |
|
3 |
60176262 |
DOWEL PIN Ø6 MM |
|
4 |
8869620 |
SHIFT FORK ROD |
|
6 |
8869621 |
SHIFT FORK ROD |
|
7 |
8869649 |
SHIFT FORK |
|
7 |
8870394 |
SHIFT FORK |
|
8 |
8870520 |
GEAR SELECT.SLEEVE |
|
9 |
8869618 |
SHIFT FORK ROD |
|
10 |
8870261 |
SWING ARM |
|
11 |
8869722 |
SLIDING SHOE |
|
12 |
8869627 |
FITTED BOLT |
|
13 |
8870396 |
SHIFT FORK ROD |
|
14 |
8870522 |
GEARSEGM.GEARSHIFT |
|
15 |
8871916 |
GEAR SELECT.SLEEVE |
|
16 |
8869641 |
PIN |
|
17 |
8870397 |
GEAR SELECT.SLEEVE |
|
18 |
8871238 |
C'SUNK SCREW M6X16 MM |
