8140SRC30.20A003

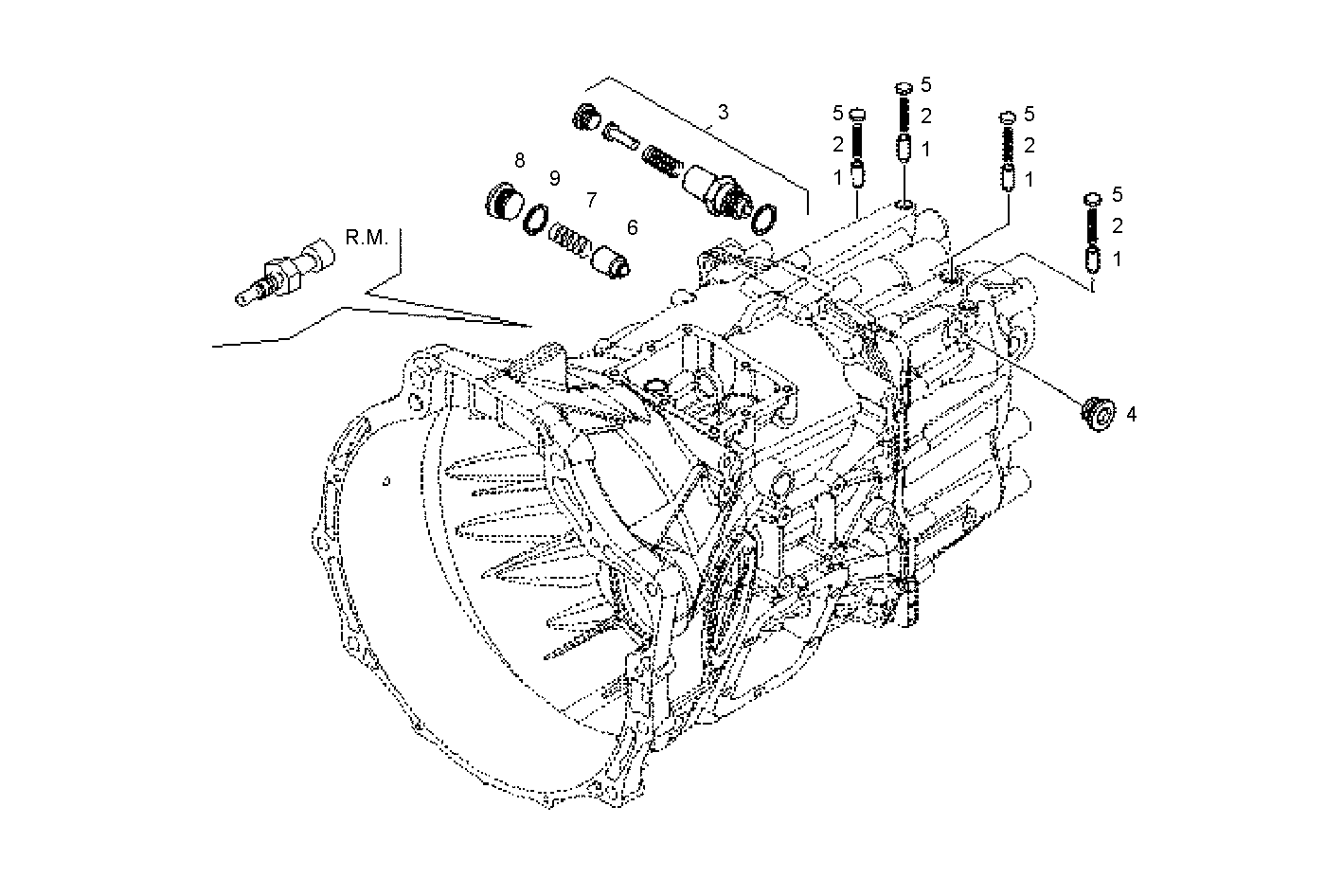

5301.002/10 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8868646 | PIN |
| 2 | 42534969 | SPRING |
| 3 | 42537755 | STOP |
| 4 | 1110425 | SCREW PLUG |
| 5 | 16988001 | PLUG |
| 6 | 8869692 | GUIDE ROLLER |
| 7 | 8868650 | SPRING |
| 8 | 8868652 | PLUG M22X1,5 |
| 9 | 16508460 | WASHER 22x27x1,5 |
