8140SRC30.20A003

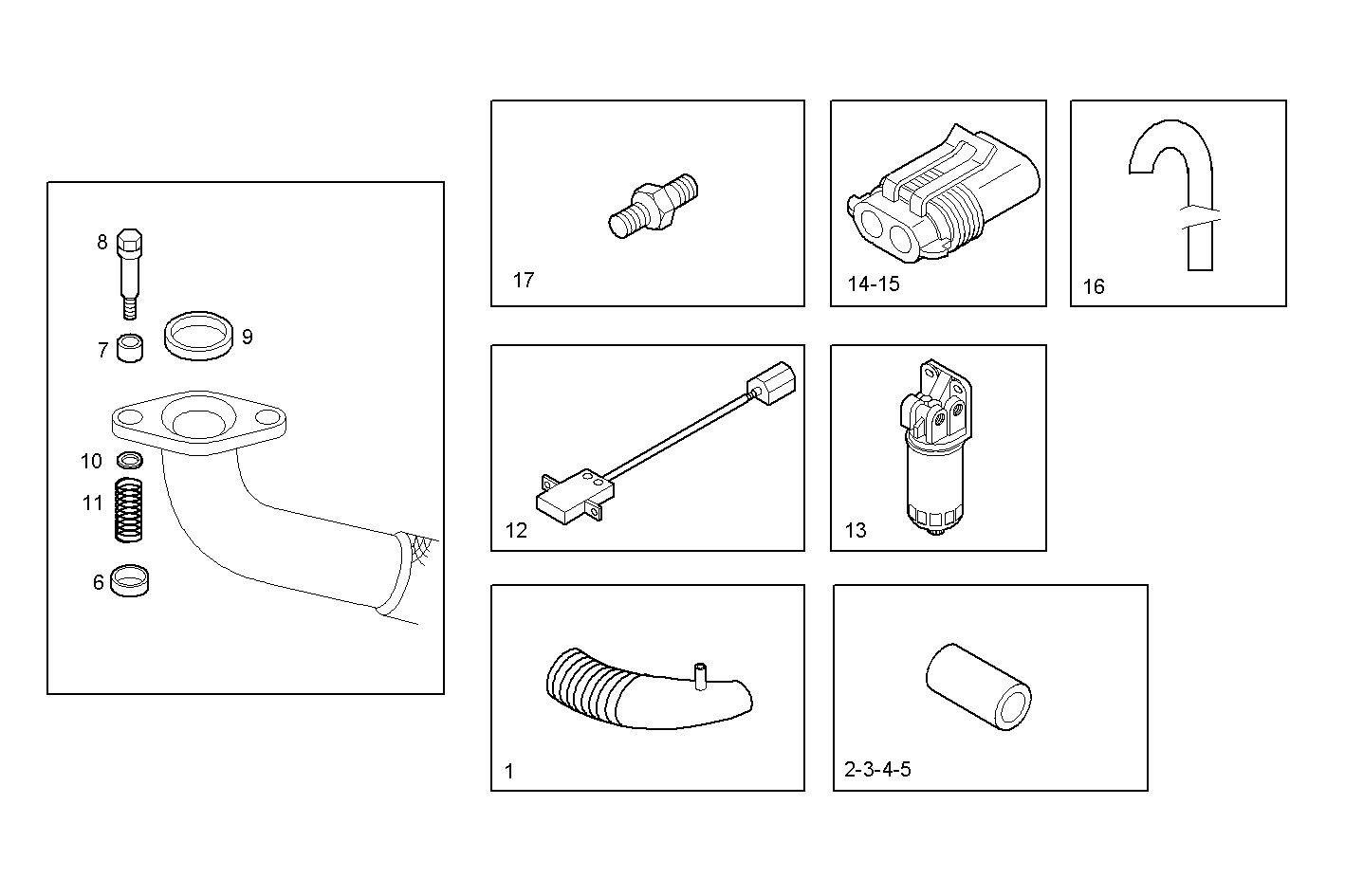

8600.234 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 500366843 | FILTER HOSE |
| 2 | 4765112 | RUBBER SLEEVE |
| 3 | 98438633 | WATER HOSE dia. 60 - L. 70 |
| 4 | 93809147 | WATER HOSE |
| 5 | 93811591 | WATER HOSE |
| 6 | 9150917480 | COVER |
| 7 | 9150951680 | BUSH |
| 8 | 9152127080 | SCREW |
| 9 | 9603895480 | RING |
| 10 | 42533772 | WASHER |
| 11 | 9607970680 | SPRING |
| 12 | 99464594 | SWITCH for "Blink code" |
| 13 | 504044712 | FUEL FILTER [FROM 03-03-05] |
| 14 | 8030573 | CONNECTION ASSY |
| 15 | 8030572 | CONNECTION |
| 16 | 500365202 | CONNECTOR SLEEVE |
| 17 | 500344936 | THREADED UNION M14X1,5 |
