8140SRC30.20A005
8600.229 ACCESSORIES

Iveco/FPT ACCESSORIES

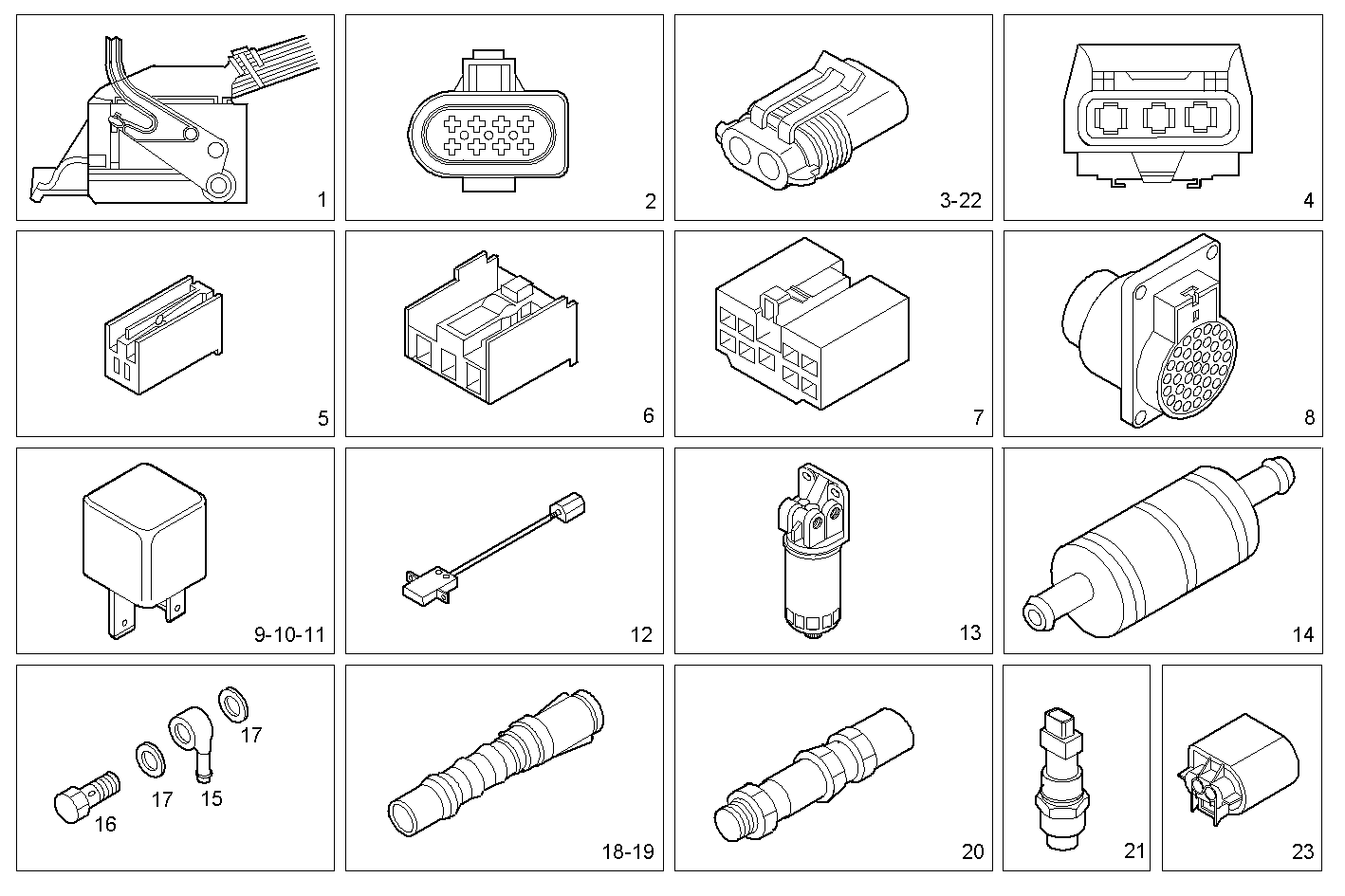

Item Part number Description
1 8029081 CONNECTION
2 8029082 WIRE CONNECTOR
3 8030572 CONNECTION
4 8030575 CONNECTION ASSY
5 8031429 CONNECTION ASSY
6 8031430 CONNECTION ASSY
7 8031431 WIRE CONNECTOR assy 5 pin female
8 8031432 WIRE CONNECTOR assy 30 pin female
9 500326618 RELAY 70A
10 500341925 RELAY 50A - for EDC
11 500326610 RELAY 10/20A - 15,5X23
12 99464594 SWITCH for "Blink code"
13 504044712 FUEL FILTER [FROM 03-03-05]
14 500318246 PREFILTER
15 4864071 PIPE SOCKET
16 4864083 SCREW CONNECTOR M14X1,5X30 MM
17 4858608 SEAL GASKET dia.14x19,5x1,5
18 500373710 PIPE SOCKET Ø8 MM
19 500373711 PIPE SOCKET Ø10 MM
20 500319244 LIGHT STOP SWITCH
21 500365771 SWITCH
22 8030573 CONNECTION ASSY
23 8030896 CONNECTION assy for alternator
