8140SRC30.40A001

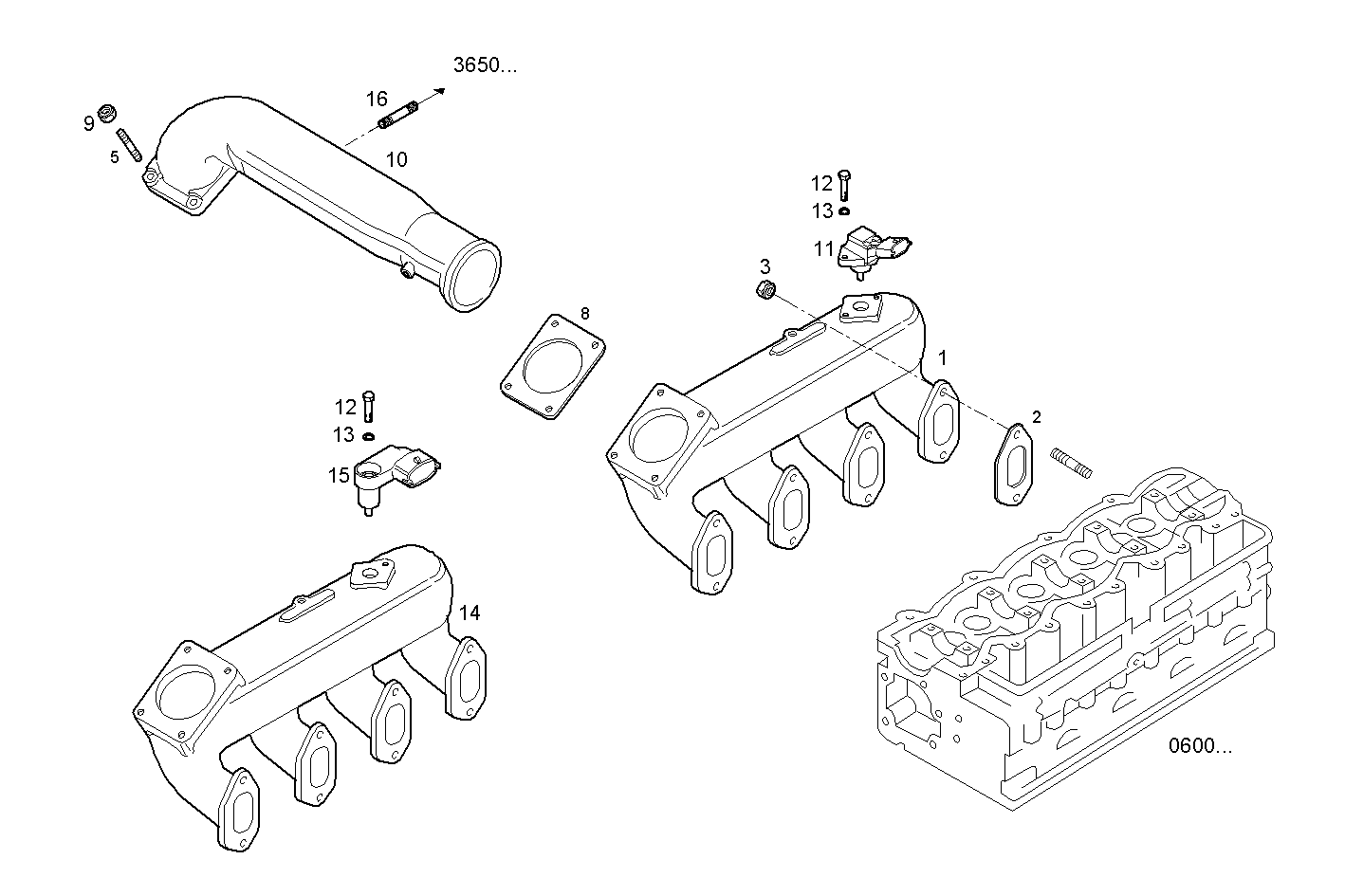

0710.214 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 99462591 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 99486343 | HEXAGON NUT M8X1,25 |
| 5 | 16729424 | STUD M8X1,25X25 |
| 8 | 99473619 | INTAKE ELBOW GASK. |
| 9 | 17044735 | NUT M8 |
| 10 | 500365107 | CONNECTION PIPE AFTERCOOLER |
| 11 | 99455421 | SENSOR |
| 12 | 16603677 | HEXAGON BOLT M6X16 MM |
| 13 | 17094724 | WASHER Ø6X12 MM |
| 14 | 504032251 | INTAKE ELBOW [FROM # 3487099] |
| 15 | 500351377 | SENSOR |
| 16 | 13540821 | STUD M6X12X14 MM |
