8140SRC30.40A001

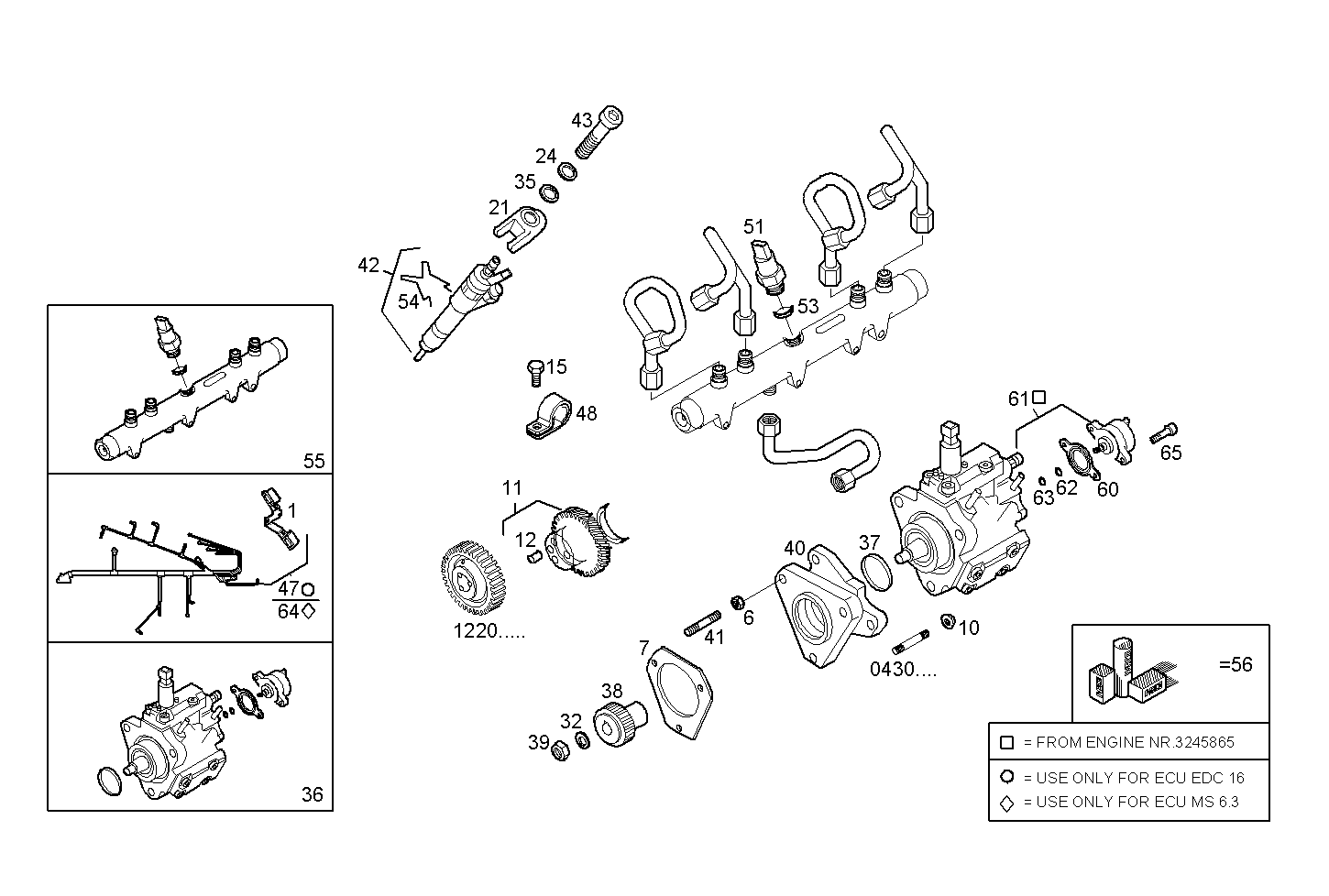

1400.402 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 500349325 | FASTENING BRACKET |
| 6 | 500368408 | NUT M8X1,25 |
| 7 | 98430444 | GASKET |
| 10 | 99486343 | HEXAGON NUT M8X1,25 |
| 11 | 99483335 | INJECT.PUMP SPIND ASSY |
| 12 | 10335910 | PARALLEL PIN |
| 15 | 16596924 | HEXAGON BOLT M6X10 MM |
| 21 | 500388113 | RETAINER |
| 24 | 17090274 | WASHER Ø10X20 MM |
| 32 | 768389 | CIRCLIP |
| 35 | 756671 | WASHER |
| 36 | 99483254 | HIGH PRESSURE PUMP |
| 37 | 500319674 | O-RING Ø45 MM |
| 38 | 99487290 | INJECT.PUMP BUSH 228° |
| 39 | 7303345 | NUT [up to 1992414] |
| 40 | 500354490 | SUPPORT |
| 41 | 16746824 | STUD M8X30 MM (8.8) |
| 42 | 500313105 | ELECTRO INJECTOR ASSY |
| 43 | 14307924 | CYLIND-HEAD SCREW M10X1,25X50 MM |
| 47 | 504087756 | SET OF WIRING |
| 48 | 14560180 | CLIP |
| 51 | 500372234 | SENSOR |
| 53 | 500372236 | WASHER |
| 54 | 500378001 | SPRING CLAMP |
| 55 | 504088073 | HYDRAULIC CYLINDER |
| 56 | 504088076 | INJECTION LINE SET |
| 60 | 42538467 | FLAT ENGINE GASKET |
| 61 | 42538165 | GOVERNOR/REGULATOR |
| 62 | 42541074 | GASKET |
| 63 | 42541075 | O-RING |
| 64 | 504032955 | SET OF WIRING ENGINE [FROM 3487099] |
| 65 | 42533116 | CYLIND-HEAD SCREW |
