8140SRC30.40A001

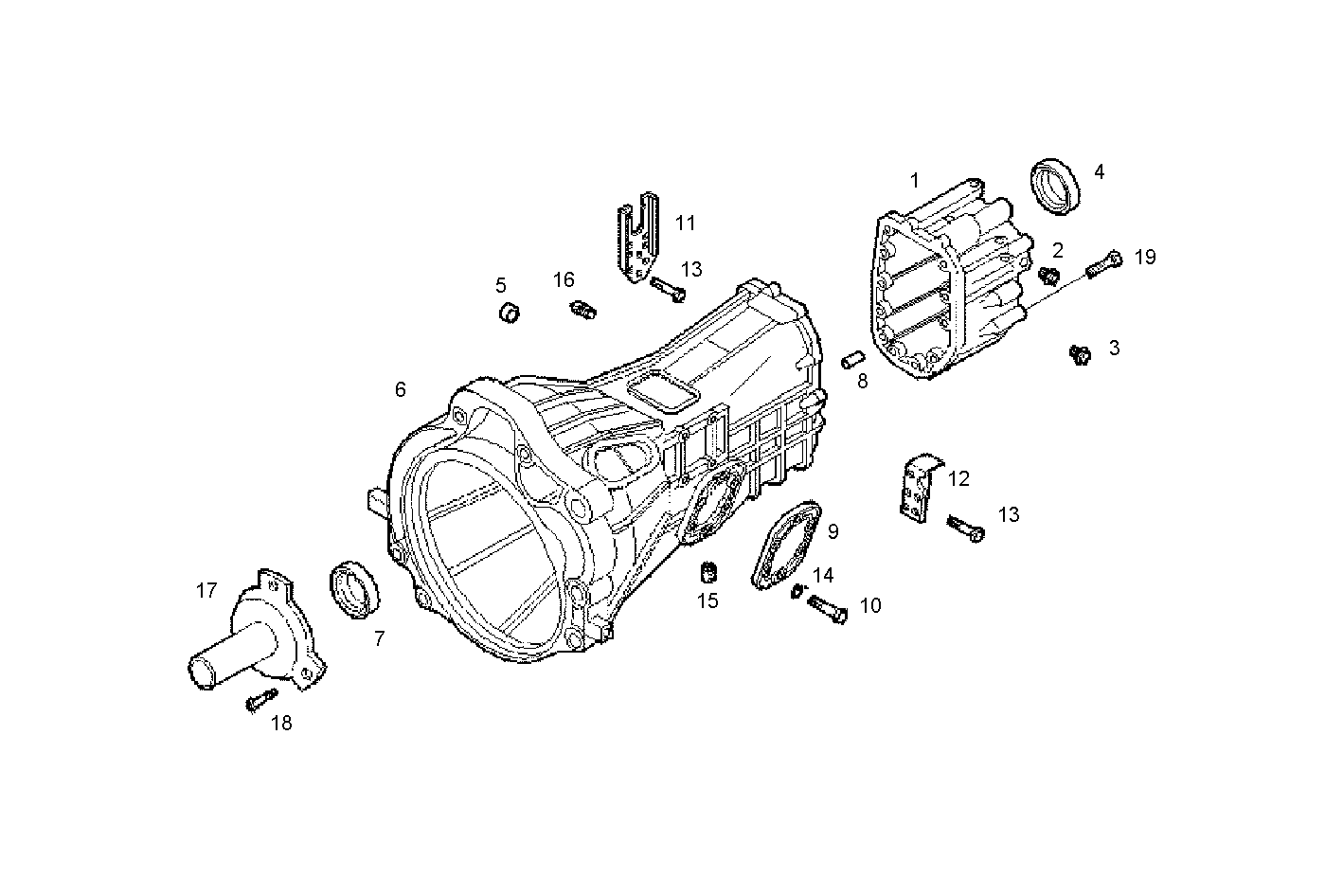

A27650501/02 TRANSMISSION - components
| Item | Part number | Description |
|---|---|---|
| 1 | 8871857 | TRANSMISSION CASE REAR |
| 2 | 8863564 | THREADED PLUG M18X1.5 |
| 3 | 8869104 | THREADED PLUG M12X1 |
| 4 | 40102773 | SHAFT SEAL |
| 5 | 16988301 | LOCK PLUG Ø20 MM |
| 6 | 8870898 | TRANSMISSION CASE FRONT |
| 7 | 40102763 | SHAFT SEAL |
| 8 | 8869098 | DOWEL PIN M12X1 |
| 9 | 8859471 | SIDE G.BOX COVER |
| 10 | 8868919 | HEXAGON BOLT |
| 11 | 8868800 | SUPPORT |
| 12 | 8869105 | SUPPORT |
| 13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 14 | 16665614 | WASHER Ø10,5 MM |
| 15 | 16998511 | THREADED PLUG M22X1,5 |
| 16 | 16996511 | THREADED PLUG M22X1,5 |
| 17 | 8870894 | FRONT G.BOX COVER |
| 18 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 19 | 16606234 | HEXAGON BOLT M8X55 MM |
