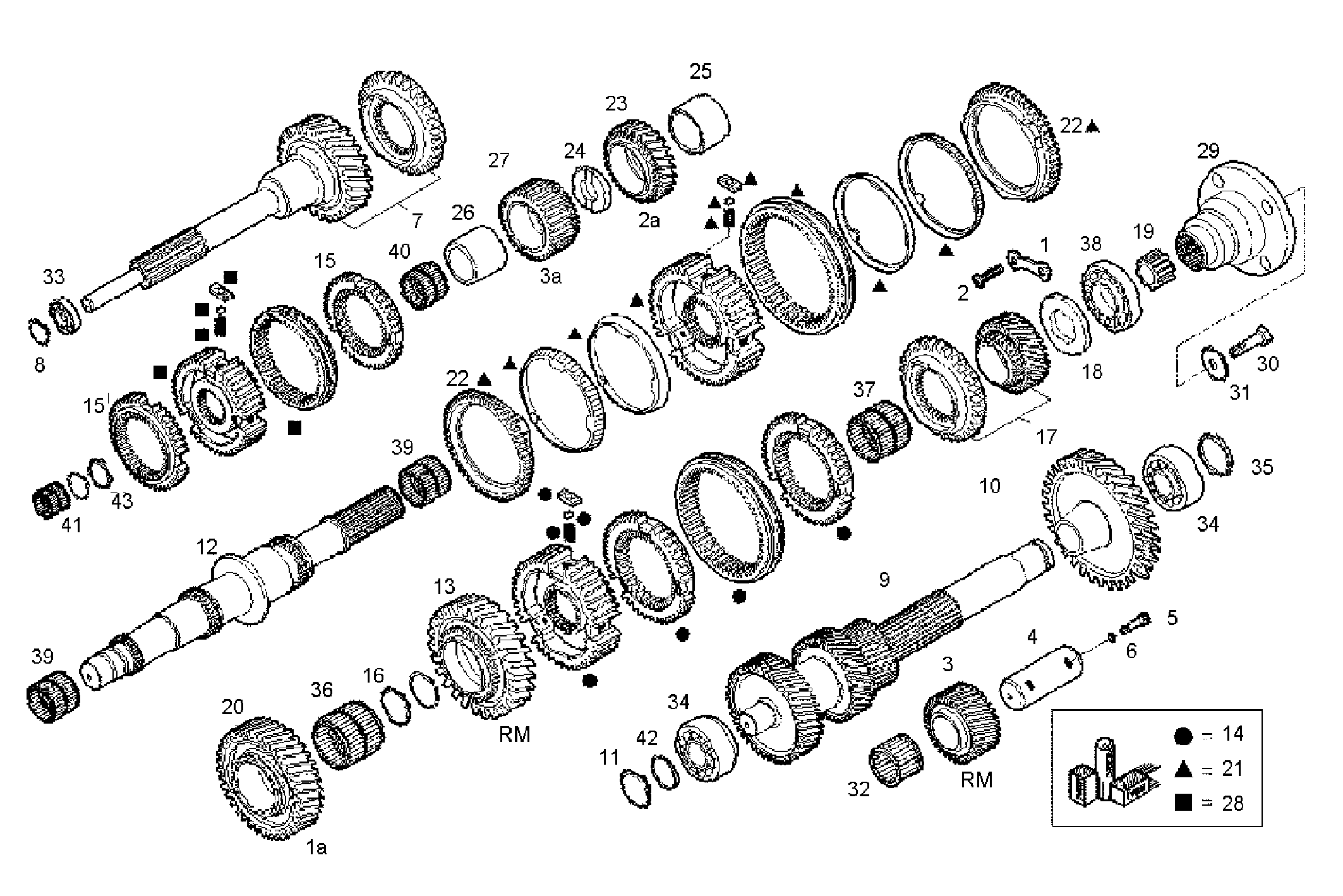

| Item |
Part number |
Description |
|
1 |
8868889 |
LOCKING PLATE |
|
2 |
8871238 |
C'SUNK SCREW M6X16 MM |
|
3 |
8868862 |
REVERSE GEAR |
|
4 |
8868622 |
RETURN SHAFT |
|
5 |
16691124 |
SOCKET-HEAD SCREW M8X50 MM |
|
6 |
8868623 |
WASHER Ø8,7X13 MM |
|
7 |
8870893 |
INPUT SHAFT |
|
8 |
16879376 |
CIRCLIP |
|
9 |
8870880 |
COUNTERSHAFT |
|
10 |
8869746 |
SPLITTER GEAR |
|
11 |
16879276 |
SPRING LOCKWASHER |
|
12 |
8869119 |
MAIN SHAFT |
|
13 |
8870634 |
REVERSE GEAR |
|
14 |
8870796 |
SYNCHRONIZ.COMPLET |
|
15 |
8868628 |
SYNCHRONIZER |
|
17 |
8868859 |
SPLITTER GEAR |
|
18 |
8870385 |
STOP WASHER |
|
19 |
8870889 |
SPLITTER GEAR |
|
20 |
8869124 |
SPLITTER GEAR |
|
21 |
8870486 |
KIT-SYNCHRONIZER 1ST-2ND SPEED |
|
22 |
8869129 |
SYNCHRONIZER |
|
23 |
8869132 |
SPLITTER GEAR |
|
24 |
16879476 |
CIRCLIP |
|
24 |
8869120 |
STOP WASHER |
|
25 |
8869134 |
PLUG-IN SLEEVE |
|
26 |
8868885 |
PLUG-IN SLEEVE |
|
27 |
8868866 |
SPLITTER GEAR |
|
28 |
8869032 |
KIT-SYNCHRONIZER |
|
29 |
8870381 |
SHIFT SLEEVE |
|
30 |
16242734 |
HEXAGON BOLT M12X1.5X60 MM |
|
31 |
8868884 |
STOP WASHER |
|
32 |
42470816 |
ROLLER CAGE |
|
33 |
8870887 |
BALL BEARING |
|
34 |
42470818 |
ROLLER BEARING |
|
35 |
42470819 |
SET OF SHIMS |
|
36 |
42470820 |
ROLLER CAGE |
|
37 |
42470821 |
ROLLER CAGE |
|
38 |
8870888 |
BALL BEARING |
|
39 |
42470823 |
ROLLER CAGE |
|
40 |
42430824 |
ROLLER CAGE |
|
41 |
8871208 |
ROLLER CAGE |
|
42 |
42430826 |
SET OF SHIMS |
|
43 |
42430827 |
SET OF SHIMS |
