8140SRC33.10A001

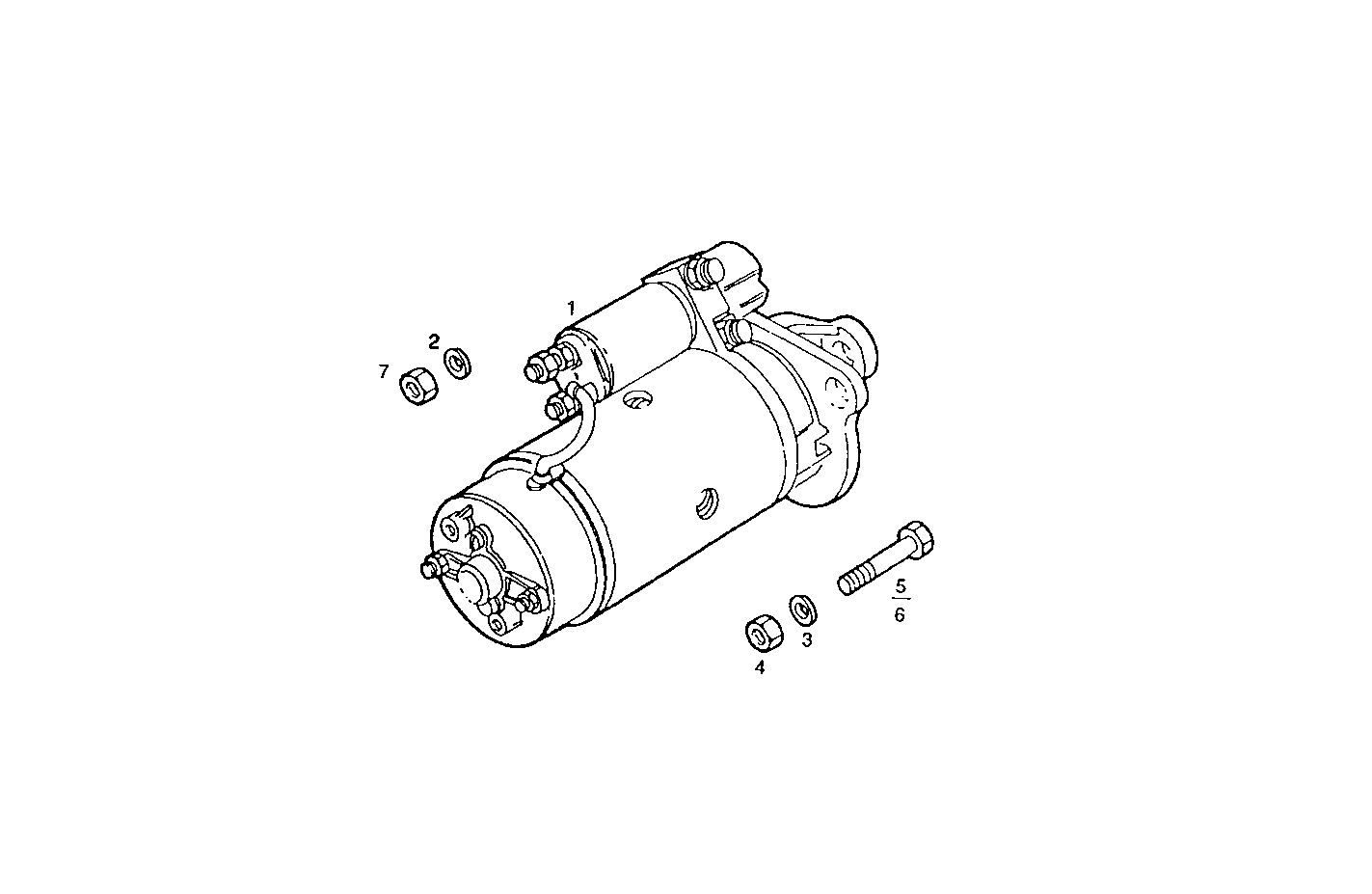

3600.103 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8039094 | STARTER MOTOR ASSY |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 11306921 | SCREW M10X1,25X30 |
| 6 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 7 | 17037921 | HEXAGON NUT M8X1,25 |
