8140SRC36.10A002

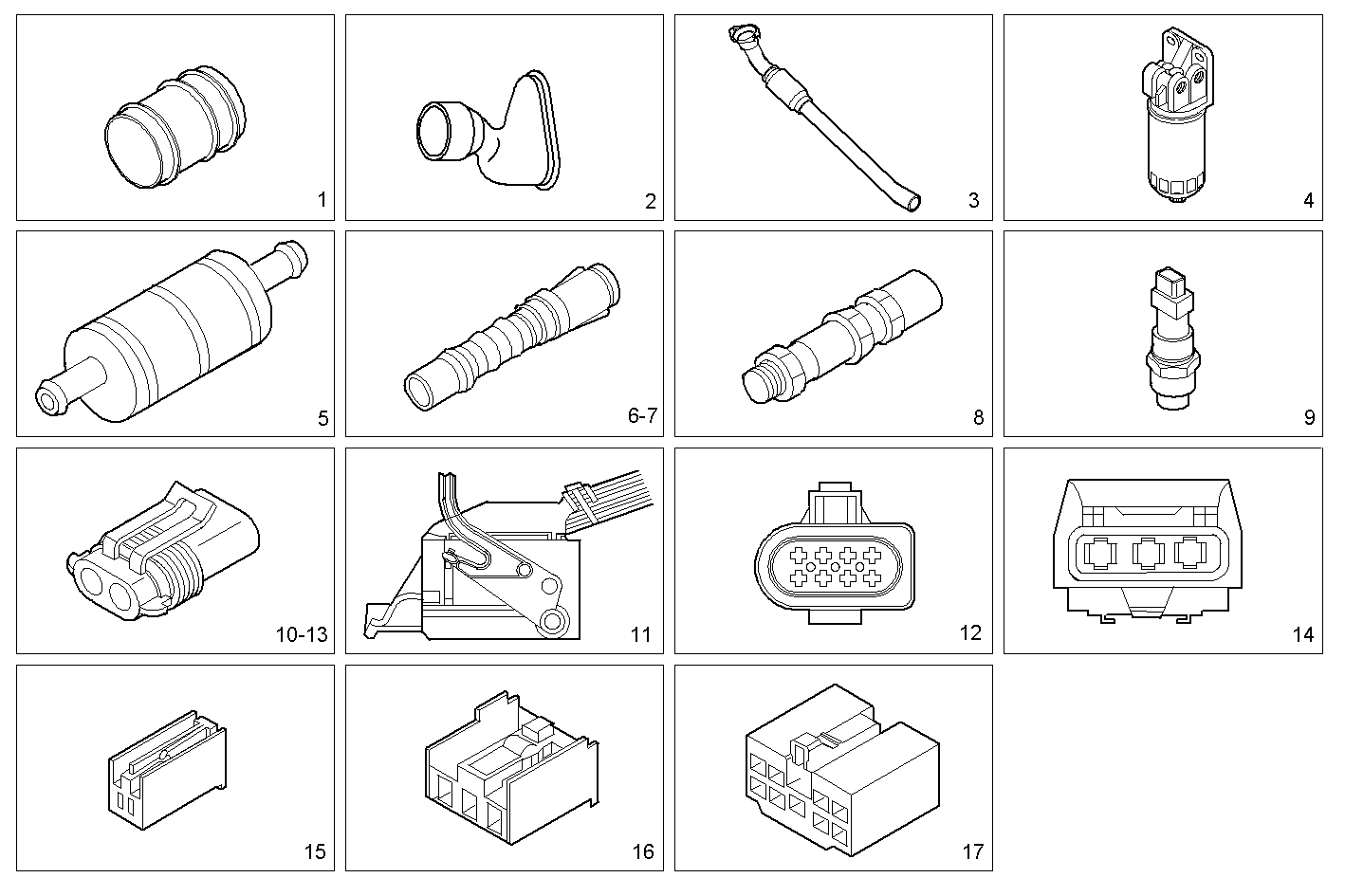

8600.236 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 99475940 | AIR PIPE/DUCT |
| 2 | 500325384 | AIR INDUCT.FILTER |
| 3 | 504059011 | EXHAUST PIPE |
| 4 | 504044712 | FUEL FILTER [FROM 03-03-05] |
| 5 | 500318246 | PREFILTER |
| 6 | 500373710 | PIPE SOCKET Ø8 MM |
| 7 | 500373711 | PIPE SOCKET Ø10 MM |
| 8 | 500319244 | LIGHT STOP SWITCH |
| 9 | 500365771 | SWITCH |
| 10 | 8030573 | CONNECTION ASSY |
| 11 | 8029081 | CONNECTION |
| 12 | 8029082 | WIRE CONNECTOR |
| 13 | 8030572 | CONNECTION |
| 14 | 8030575 | CONNECTION ASSY |
| 15 | 8031429 | CONNECTION ASSY |
| 16 | 8031430 | CONNECTION ASSY |
| 17 | 8031431 | WIRE CONNECTOR assy 5 pin female |
