8140SRM15.10

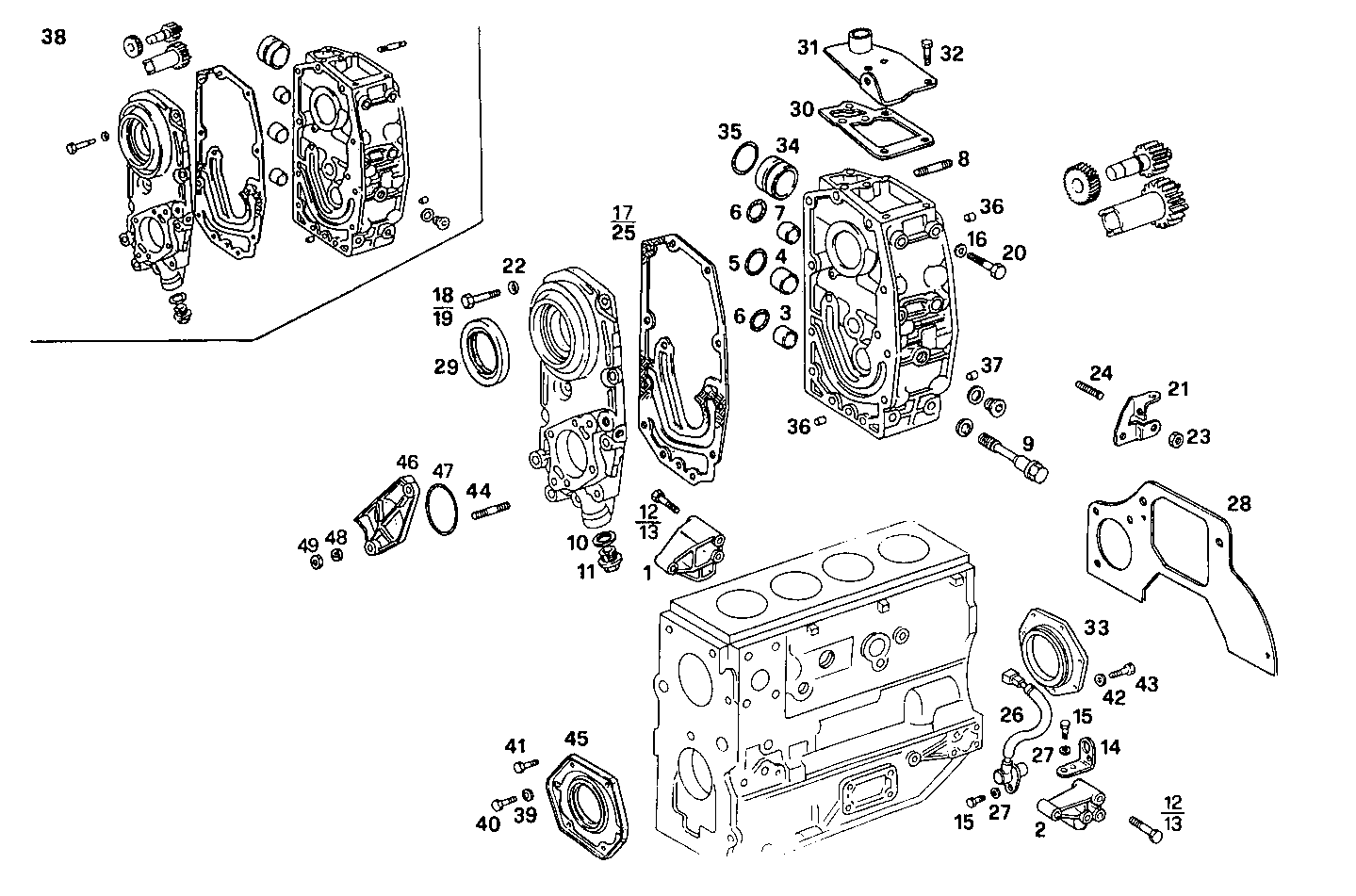

0430.199/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500344426 BRACKET RIGHT
2 500346555 BRACKET LEFT
3 4710945 BUSH Ø18X30 MM
4 4279406 BUSH Ø22,3X12 MM
5 17282181 O-RING Ø21,8 MM SP=2,6 MM
6 500306196 O-RING Ø17,46 MM SP=2,62 MM
7 4279407 BUSH Ø18X18 MM
8 16746824 STUD M8X30 MM (8.8)
9 99458260 SCREW M12X1,5X150 MM
10 10263360 SEAL GASKET 20x26x1
11 4827588 PLUG M20
12 16289124 HEXAGON BOLT M10X1,25X60 MM
13 16289624 HEXAGON BOLT M10X1,25X100 MM
14 504011324 RETAINER
15 16603624 HEXAGON BOLT M6X16 MM (8.8)
16 17094924 WASHER Ø8X16 MM
17 500369188 FLAT ENGINE GASKET
18 16606024 SCREW M8X45 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 98468138 HEXAGON BOLT M8X1,25X150 MM
21 500332328 RETAINER
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 17044731 HEXAGON NUT M8
24 16729424 STUD M8X1,25X25
25 98421263 FLAT ENGINE GASKET SP=0,5 MM
26 500343018 ELECTRON.TRANSMITT
27 17094714 WASHER Ø6,4X12 MM
28 500371071 PROTECTION
29 98454045 SHAFT SEAL
30 98421276 FLAT ENGINE GASKET SP=0,8 MM
31 500310942 COVER
32 16586324 HEXAGON BOLT M8X1,25X20 MM
33 99457402 SHAFT SEAL
34 98461177 BUSH Ø40X46,2 MM [from 1608990]
35 98461178 O-RING Ø46,04 MM SP=3,53 MM
36 98465476 DOWEL PIN Ø8 MM
37 500325603 DOWEL PIN Ø11 MM
38 500376933 SUPPORT ASSY
39 17088474 WASHER Ø6X12 MM
40 16689134 SOCKET-HEAD SCREW M6X16 MM
41 16585924 HEXAGON BOLT M6X25 MM
42 17089574 WASHER Ø8X16 MM
43 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
44 13449524 STUD M10X1,25X15X25
45 99483227 SHAFT SEAL
46 98460651 PTO COVER [up to 1653273]
47 500394164 O-RING Ø40,94X2,62 MM
48 17090074 SPRING WASHER Ø10X20X1,9 MM
49 17038221 HEXAGON NUT M10
