8140SRM15.10

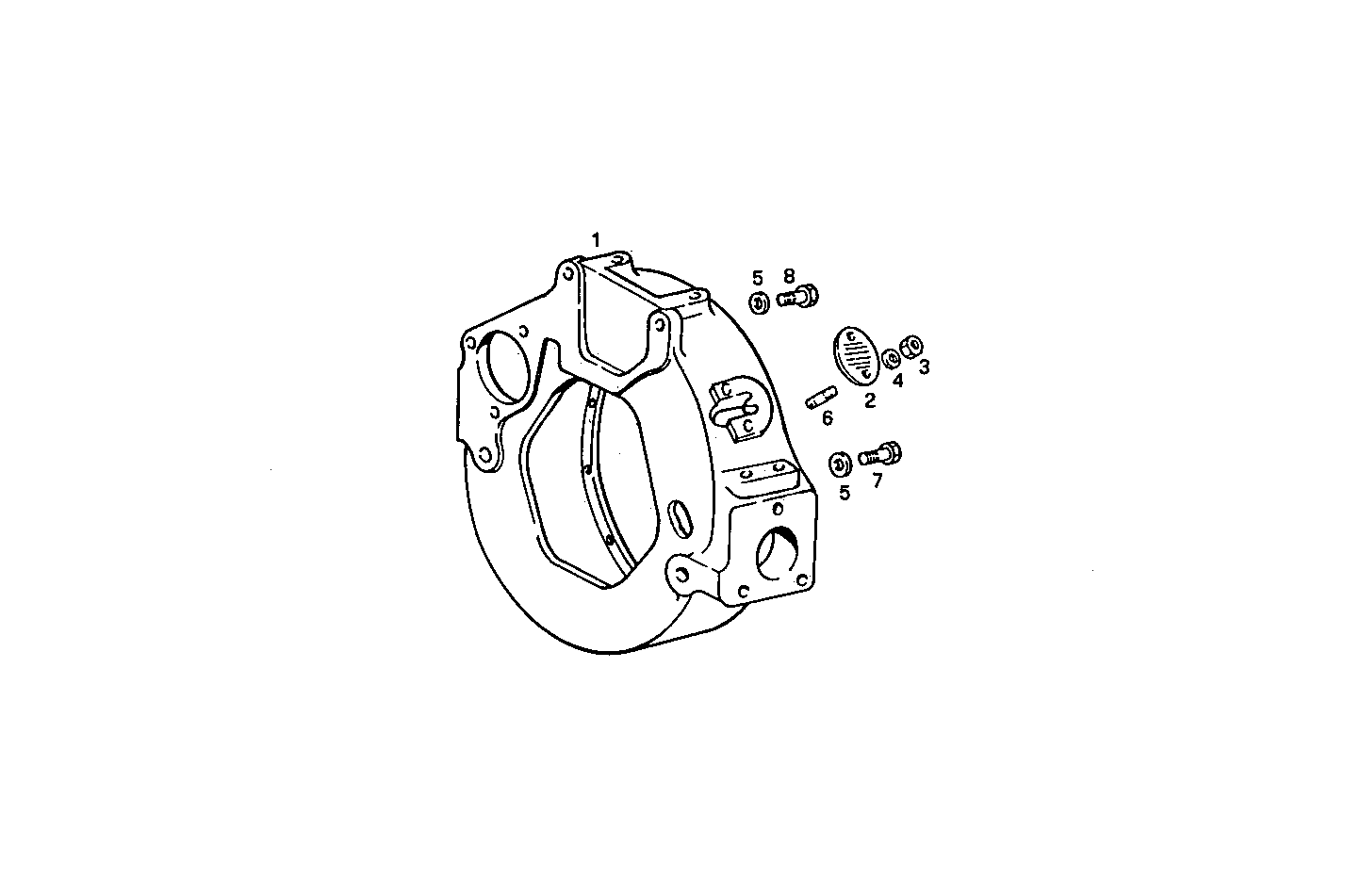

0430.199/02 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 8028099 | FLYWHEEL HOUSING |
| 2 | 4540660 | COVER |
| 3 | 17037721 | NUT M5X0,8 |
| 4 | 17094504 | WASHER Ø5,3X10 MM |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 16726124 | STUD |
| 7 | 15540721 | HEXAGON BOLT M12X45 MM |
| 8 | 15541021 | HEXAGON BOLT M12X1,25X60 MM |
