8140SRM15.10

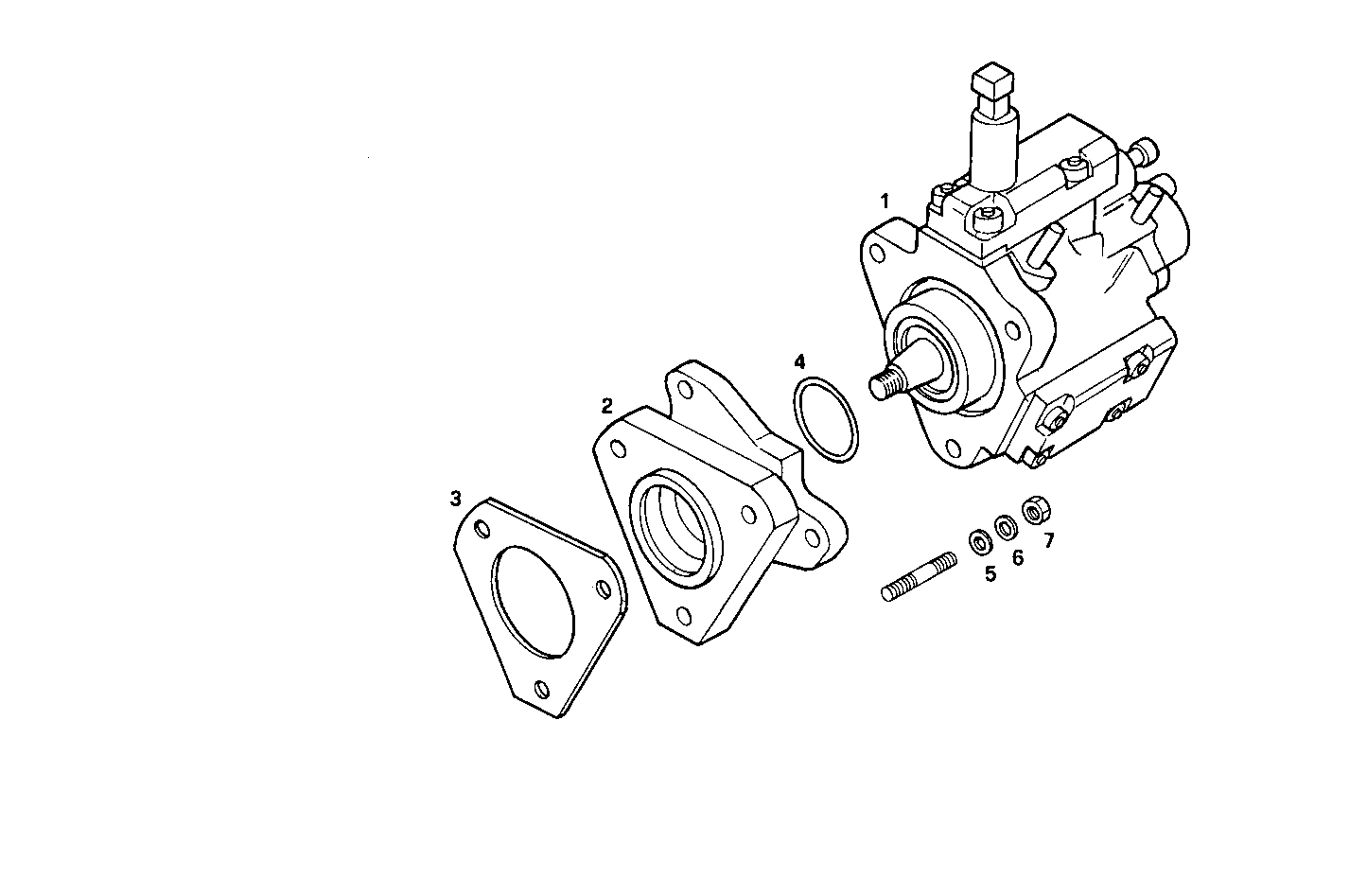

1400.289 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 500366314 | HIGH PRESSURE PUMP |
| 2 | 500354490 | SUPPORT |
| 3 | 4851923 | FLAT ENGINE GASKET |
| 4 | 500319674 | O-RING Ø45 MM |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
