8140SRM15.10

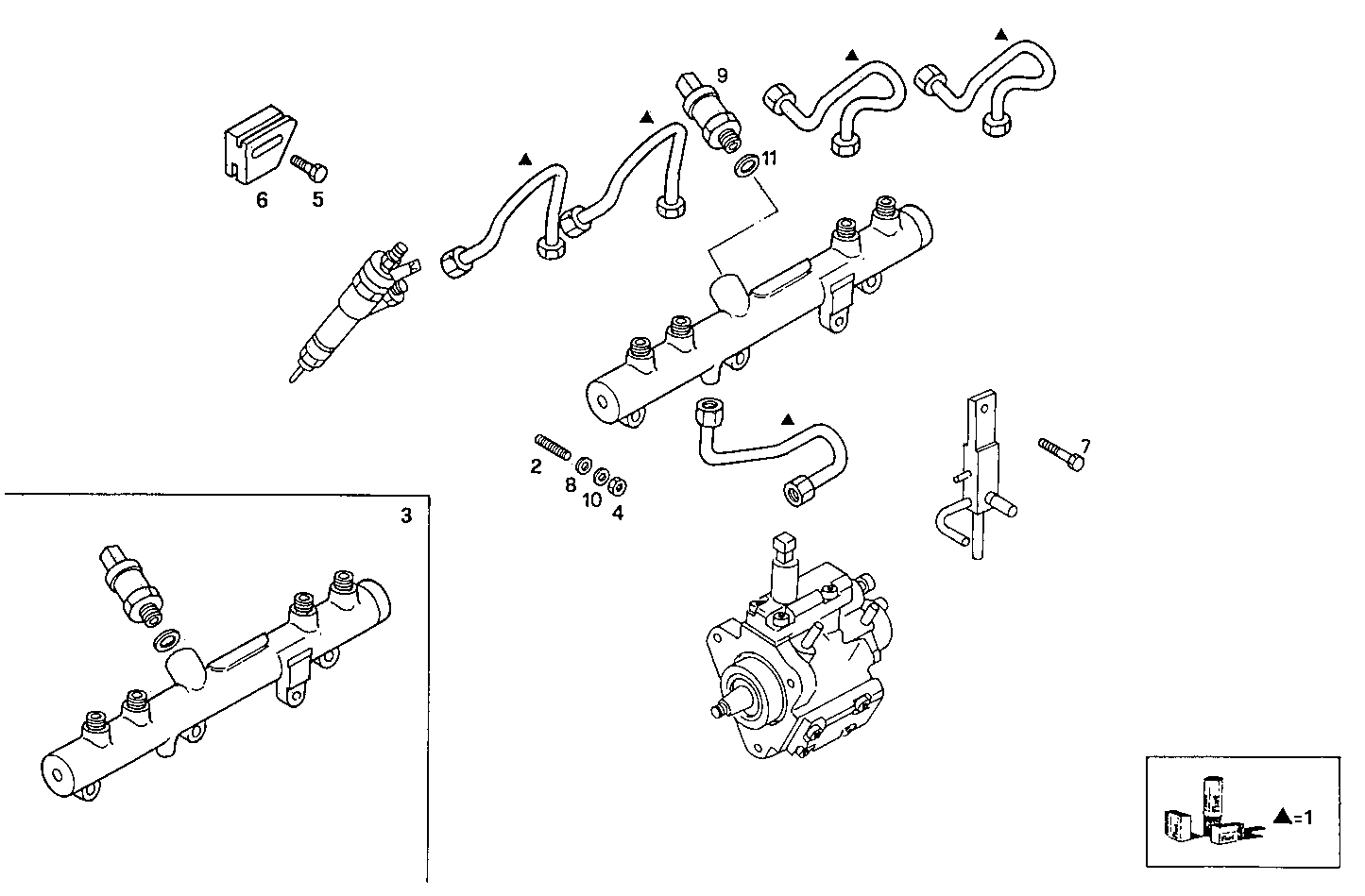

2020.124 INJECTION PIPES [D ...] [from...]
| Item | Part number | Description |
|---|---|---|
| 1 | 500397941 | INJECTION LINE SET ALTERNATIVE USE [UP TO # 3887457] |
| 2 | 16746824 | STUD M8X30 MM (8.8) |
| 3 | 500394220 | HYDRAULIC CYLINDER ASSY [UP TO # 3887457] |
| 4 | 17044731 | HEXAGON NUT M8 |
| 5 | 16596924 | HEXAGON BOLT M6X10 MM |
| 6 | 500315270 | CHOCK |
| 7 | 16585724 | HEXAGON BOLT M6X16 MM |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 500372234 | SENSOR |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 500372236 | WASHER |
