8140SRM15.10

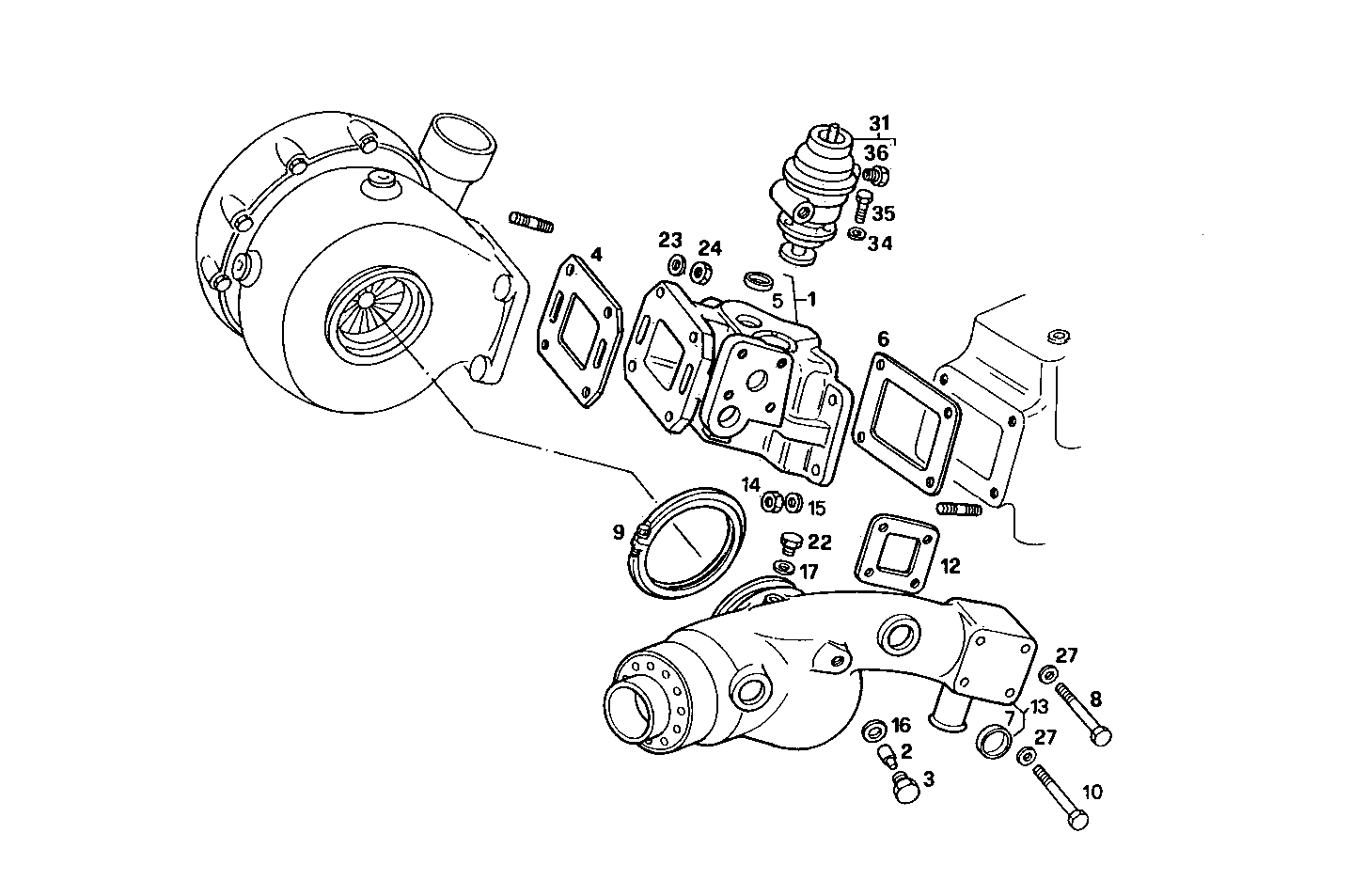

2420.165 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8024904 EXHAUST COOL. ELBOW ASSY
2 8105277 SACRIFICAL ANODE Ø14 MM
3 8105276 PLUG M16
4 8014972 GASKET
5 16990870 LOCK PLUG Ø28 MM
6 8024905 GASKET
7 16991170 LOCK PLUG Ø36 MM
8 16606924 SCREW M8X110
9 8111053 CLIP
10 16045321 HEXAGON BOLT M8X1,25X105 MM
12 4833835 GASKET
13 8024902 EXHAUST COOL. ELBOW ASSY
14 17038221 HEXAGON NUT M10
15 16665604 WASHER Ø10X20 MM
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 16992240 THREADED PLUG M12X1,5
23 17090174 SPRING WASHER Ø10X20 MM
24 17038121 HEXAGON NUT M10
27 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 8030418 VALVE ASSY
34 17088474 WASHER Ø6X12 MM
35 16689134 SOCKET-HEAD SCREW M6X16 MM
36 8012465 PIPE SOCKET
