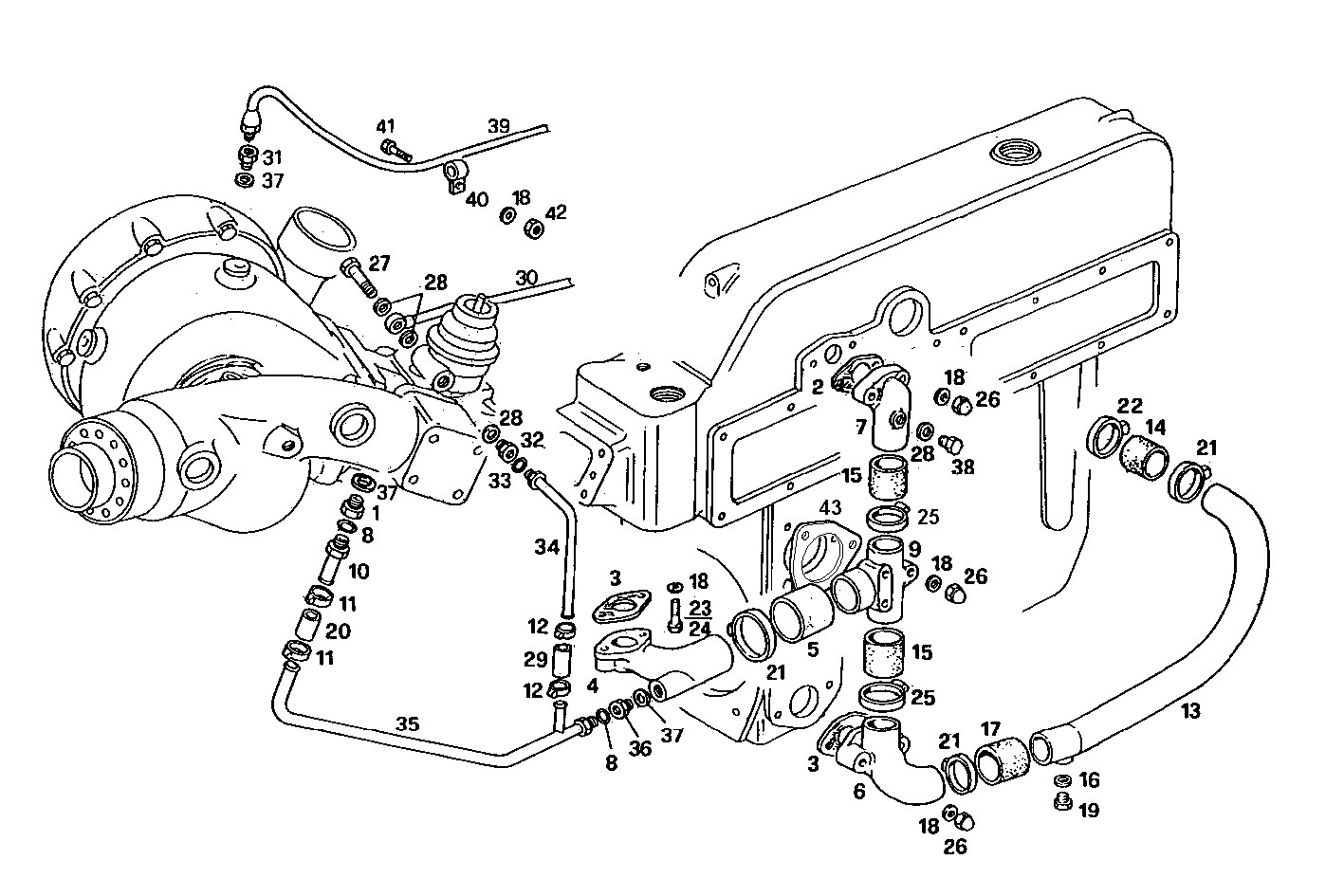

3210.211/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 98443290 PIPE SOCKET [from ...]
2 98401052 FLAT ENGINE GASKET
3 8008755 FLAT ENGINE GASKET
4 8024907 WATER PIPE
5 17744687 FILTER HOSE
6 4935519 WATER PIPE
7 4935517 WATER PIPE
8 8024650 O-RING Ø13 MM
9 4935516 THERMOSTAT BODY
10 8028804 PIPE SOCKET
11 17764593 CLIP Ø20/32 MM
12 17764393 CLIP Ø12/20 MM
13 4935527 WATER PIPE
14 8813238 WATER HOSE
15 17740187 RUBBER SLEEVE
16 4858606 GASKET Ø10X14X1 MM
17 17743687 RUBBER SLEEVE Ø45X60 MM
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 11903111 LOCK PLUG M10X1,25
20 98434883 WATER HOSE [up to ...]
21 17764993 CLIP Ø50/70 MM
22 17764793 CLIP Ø32/50 MM
23 16606324 HEXAGON BOLT M8X60 MM
24 16606024 SCREW M8X45 MM
25 17764693 CLIP Ø25/40 MM
26 17787321 NUT M8X1,25
27 4864083 SCREW CONNECTOR M14X1,5X30 MM
28 4858608 SEAL GASKET dia.14x19,5x1,5
29 4931996 WATER HOSE
30 8024890 WATER PIPE
31 98445134 THREADED UNION SP=7 MM
32 16500214 THREADED UNION M14X1,5/M16X1,5
33 8024646 O-RING Ø6 MM
34 8024891 WATER PIPE
35 8024892 WATER PIPE
36 16500511 THREADED UNION
37 10263460 WASHER Ø22X28X1,5 MM
38 16992340 THREADED PLUG M14X1,5
39 8030539 WATER PIPE
40 17316190 PIPE CLIP Ø6 MM
41 16605424 SCREW M8X16 MM (8.8)
42 17037931 HEXAGON NUT M8X1,25
43 98420754 FLAT ENGINE GASKET SP=0,5 MM
