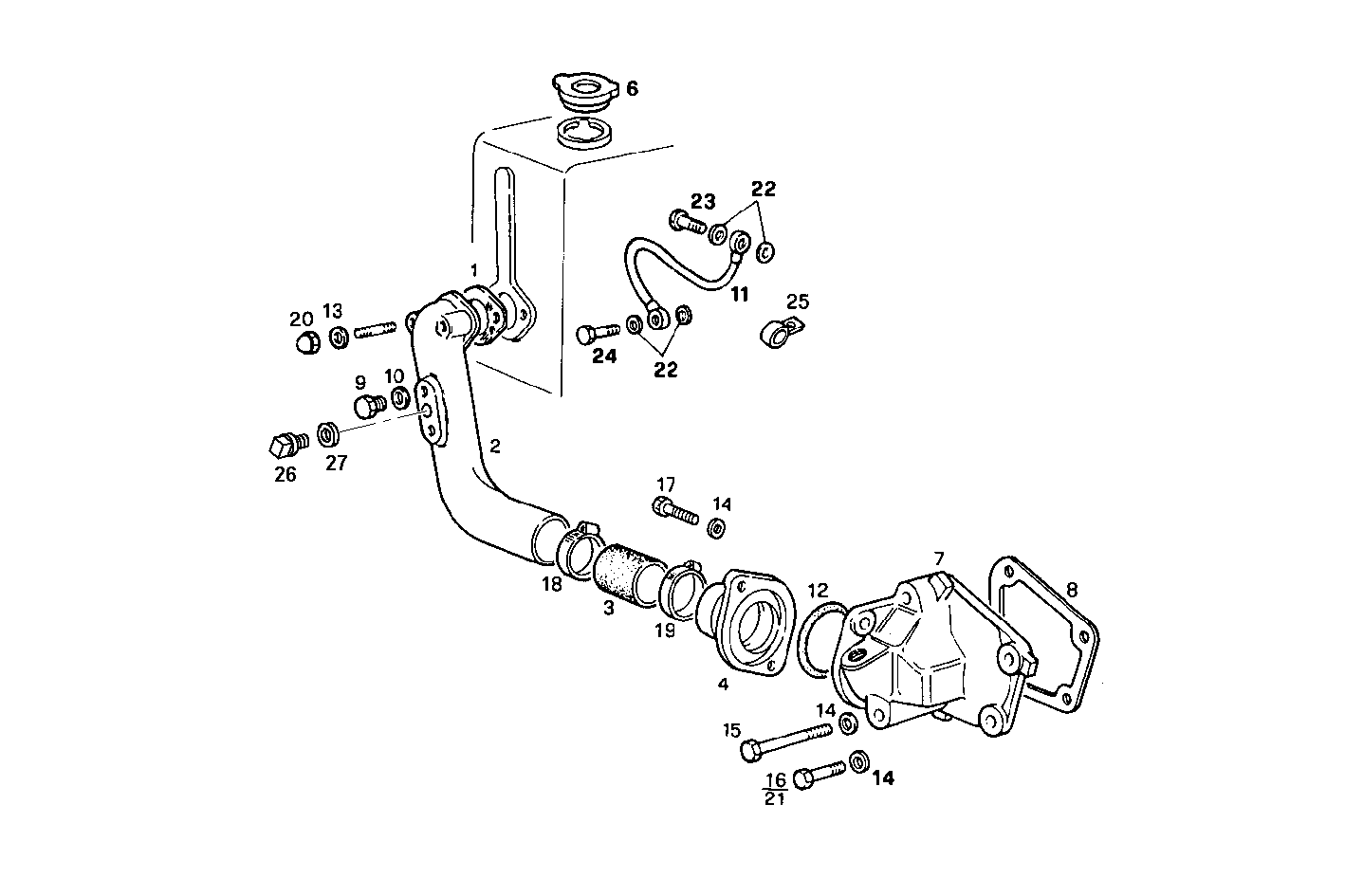

| Item |
Part number |
Description |
|
1 |
8008755 |
FLAT ENGINE GASKET |
|
2 |
4935520 |
WATER PIPE |
|
3 |
8813238 |
WATER HOSE |
|
4 |
7301254 |
COVER |
|
6 |
4935488 |
RADIATOR PLUG |
|
7 |
8024906 |
THERMOSTAT BODY |
|
8 |
98421297 |
FLAT ENGINE GASKET SP=0,8 MM |
|
9 |
16992440 |
THREADED PLUG M16X1,5 |
|
10 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
11 |
8008744 |
WATER PIPE |
|
12 |
14455281 |
O-RING SP=1,78 MM |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
11193874 |
WASHER Ø8X16 MM |
|
15 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
16 |
16605724 |
SCREW M8X1,25X30 |
|
17 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
18 |
17764793 |
CLIP Ø32/50 MM |
|
19 |
17764993 |
CLIP Ø50/70 MM |
|
20 |
17787321 |
NUT M8X1,25 |
|
21 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
22 |
4858606 |
GASKET Ø10X14X1 MM |
|
23 |
8015164 |
SCREW CONNECTOR |
|
24 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
25 |
4929652 |
RETAINER |
|
26 |
99455420 |
TEMP. TRANSMITTER |
|
27 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
