8140SRM15.10

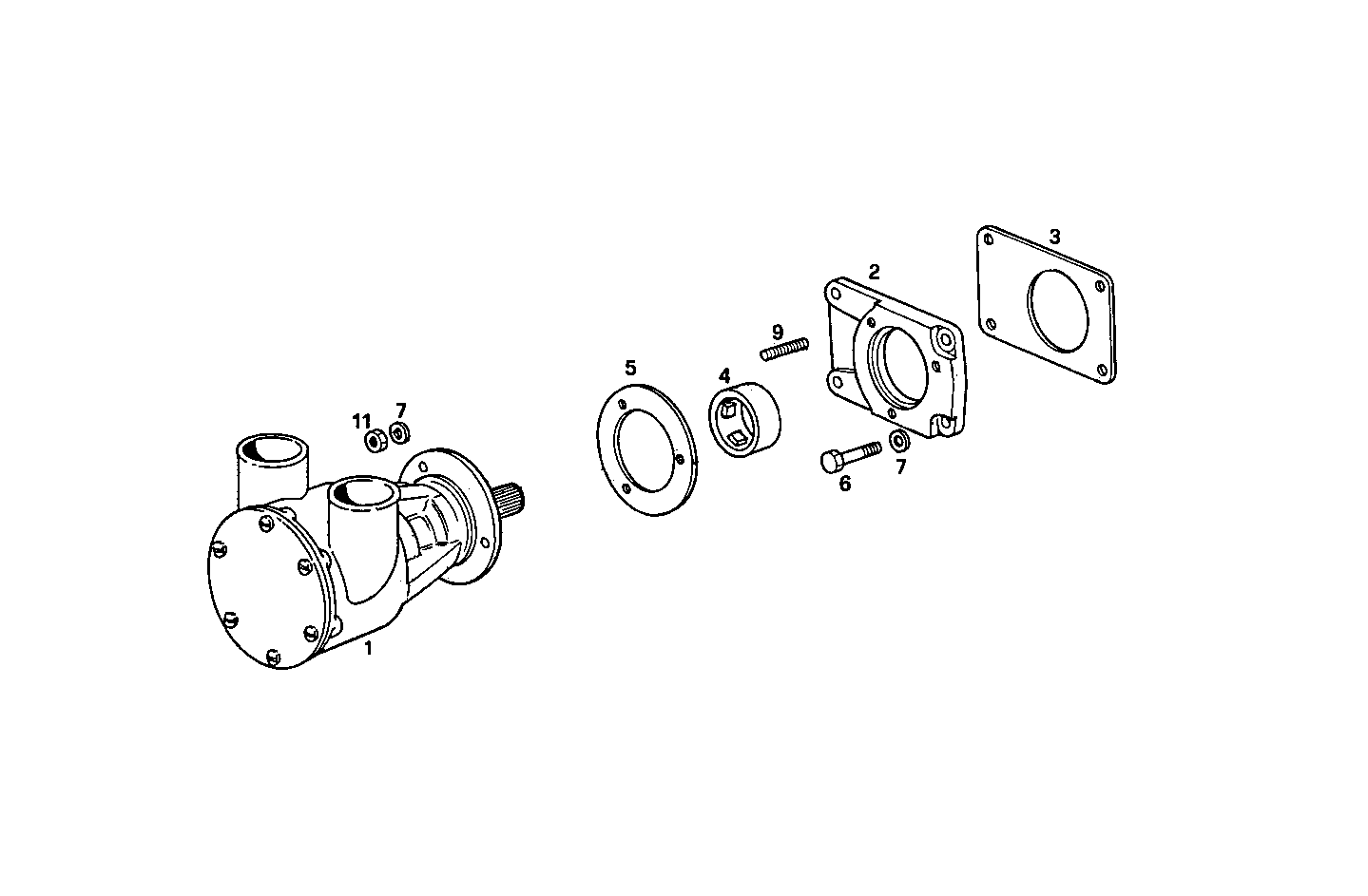

3380.029/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8110564 | SEA WATER PUMP ASSY JABSCO |
| 2 | 8028063 | SUPPORT |
| 3 | 500310543 | FLAT ENGINE GASKET |
| 4 | 4621358 | RING |
| 5 | 8008734 | GASKET |
| 6 | 16605734 | HEXAGON BOLT M8X30 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16729324 | STUD M8X12X20 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
