8140SRM15.11

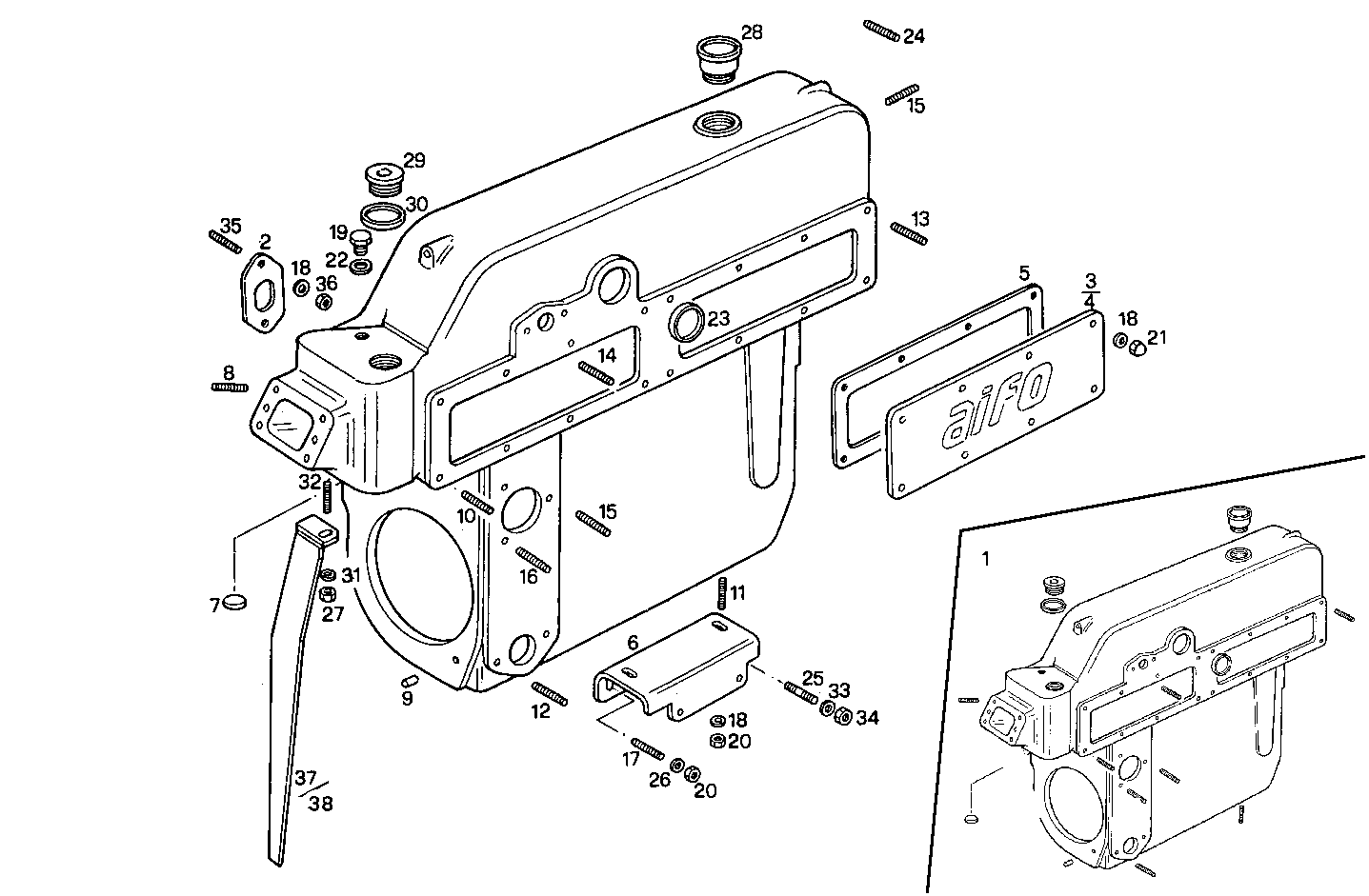

0760.128 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8024901 EXHAUST MANIFOLD ASSY
2 98434020 EXH. MANIFOLD GKT
3 4934306 COVER REAR
4 4934350 COVER FRONT
5 4934307 EXH. MANIFOLD GKT
6 8025029 SUPPORT
7 16990870 LOCK PLUG Ø28 MM
8 8100212 STUD
9 17253570 PIN
10 16729324 STUD M8X12X20 MM
11 13546321 STUD M10X25 MM
12 16729824 STUD M8X45 MM
13 16729424 STUD M8X1,25X25
14 16729724 STUD M8X40 MM
15 16730024 STUD M8X55
16 16730424 STUD
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 16992511 THREADED PLUG M18X1,5
20 17037931 HEXAGON NUT M8X1,25
21 17787321 NUT M8X1,25
22 4858610 WASHER Ø18X24 MM SP=1,5 MM
23 16991170 LOCK PLUG Ø36 MM
24 16746334 STUD
25 13530121 STUD M10X1,25X65
26 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
27 17038121 HEXAGON NUT M10
28 8102030 FILLER NECK
29 8009882 PLUG
30 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
31 17090174 SPRING WASHER Ø10X20 MM
33 17091174 SPRING WASHER Ø12X24 MM
34 17038621 NUT M12
35 16746724 STUD M8X25 MM
37 8028782 RETAINER 1C
38 8036954 RETAINER D
