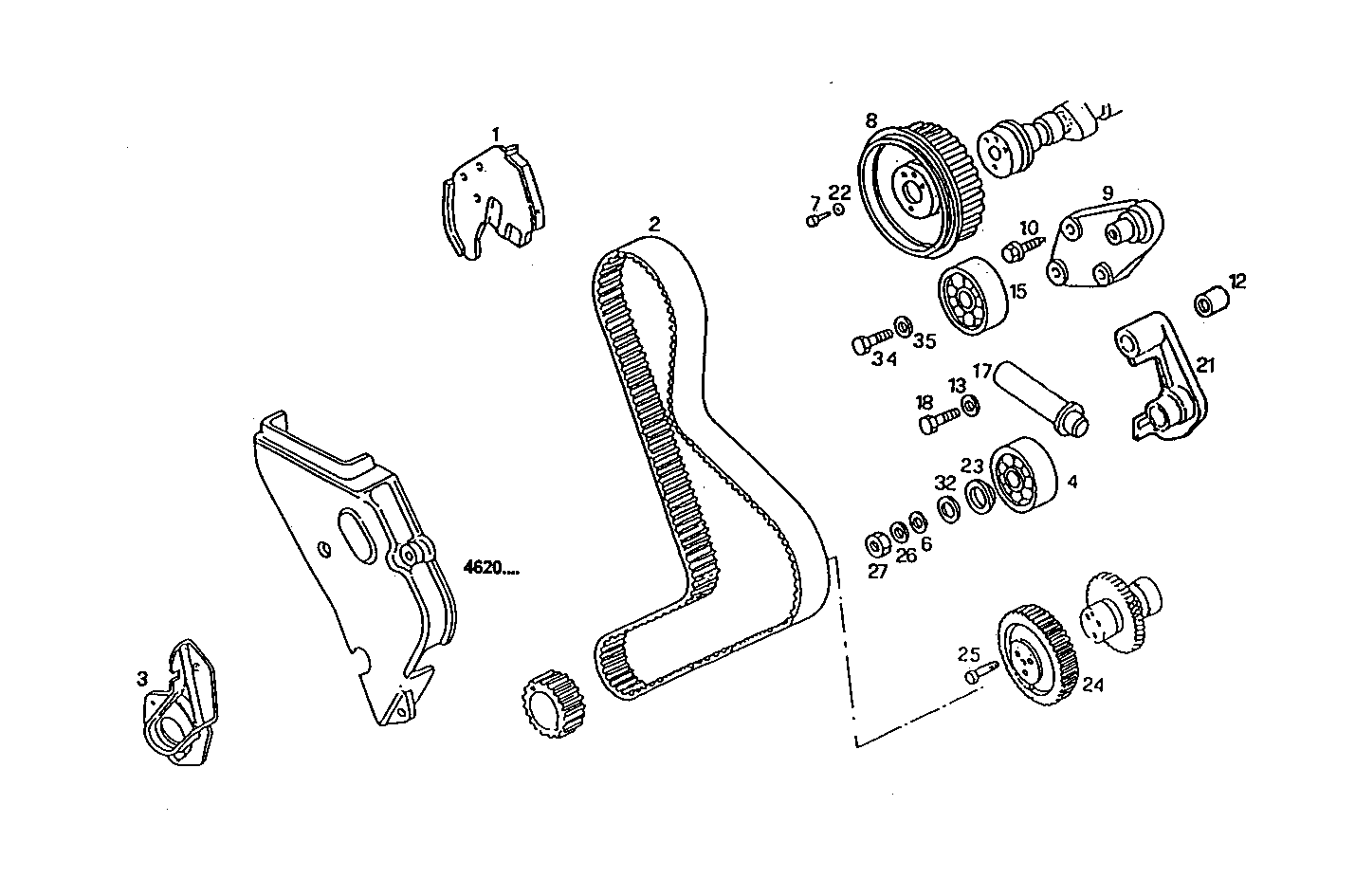

| Item |
Part number |
Description |
|
1 |
500305365 |
PROTECTION |
|
2 |
99456476 |
TIMING BELT |
|
3 |
99455320 |
COVER BOTTOM [from 2263444] |
|
4 |
4740847 |
ENGINE BEARINGS RIV-SKF |
|
6 |
17095104 |
WASHER Ø10X21X2 MM |
|
7 |
16605534 |
HEXAGON BOLT M8X20 MM (10.9) |
|
8 |
500324448 |
CAMSHAFT PINION |
|
9 |
500327941 |
SUPPORT |
|
10 |
500342834 |
HEXAGON BOLT M8X30 MM |
|
12 |
500326919 |
SPACER SP=8,3 MM |
|
13 |
12646721 |
WASHER Ø8X20 MM |
|
15 |
99432547 |
ENGINE BEARINGS |
|
17 |
4279745 |
BELT TENSIONER |
|
18 |
16592224 |
HEXAGON BOLT M8X55 MM |
|
21 |
500326852 |
SUPPORT |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
7300035 |
SPACER RIV-SKF |
|
24 |
99459430 |
INJ.PUMP DRIV.GEA |
|
25 |
500372179 |
LOCKING SCREW M12X1,25X30 MM |
|
26 |
17798374 |
SPRING WASHER Ø10,2X18,1 MM |
|
27 |
17038221 |
HEXAGON NUT M10 |
|
32 |
98479895 |
SPACING BAR [from 1832166] |
|
34 |
16288424 |
HEXAGON BOLT M10X1,25X25 MM |
|
35 |
99447327 |
SPACER SP=5 MM [from 1832166] |
