8140SRM15.11

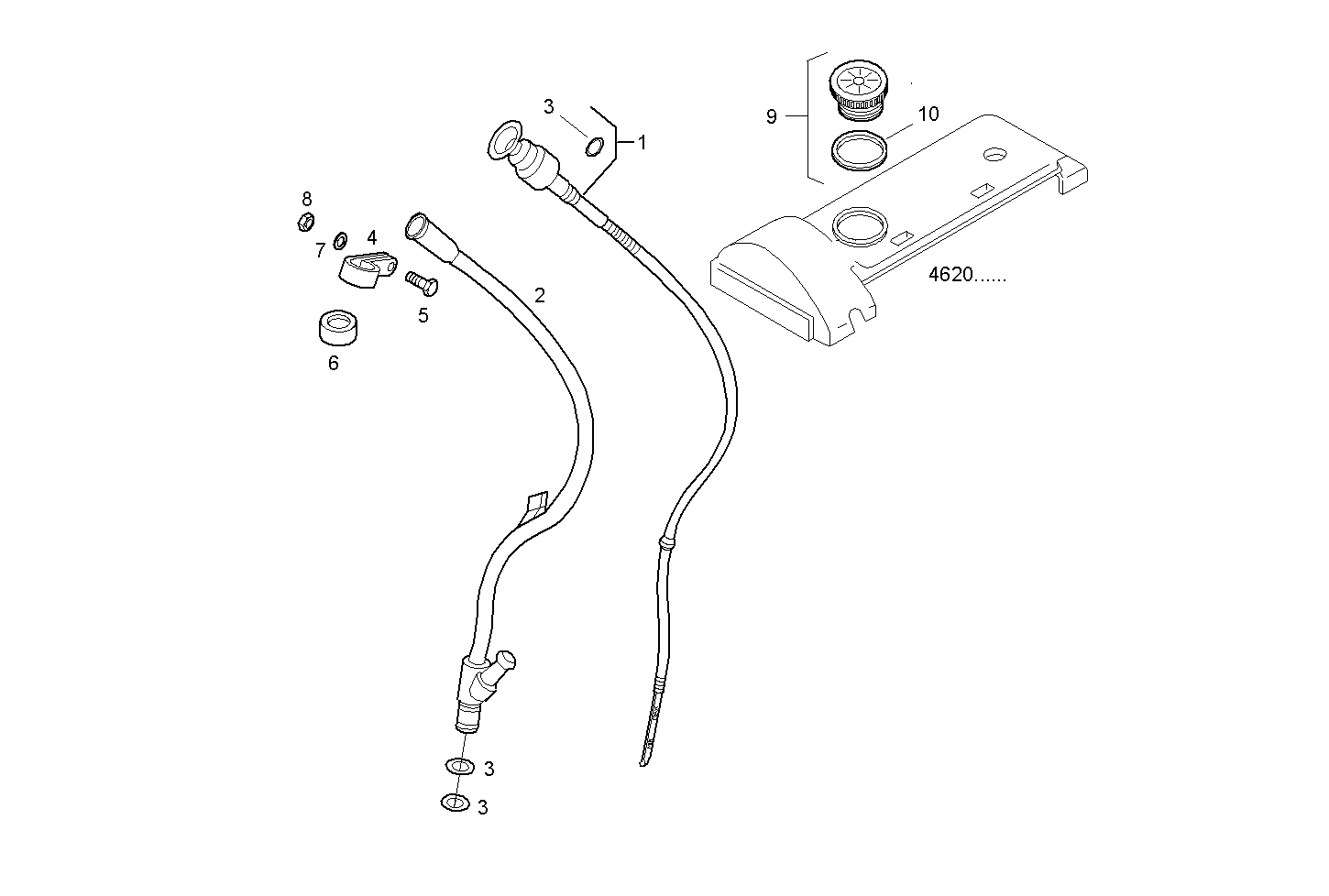

2710.147 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8030662 | OIL DIPSTICK ASSY |
| 2 | 8030706 | ROD GUIDE |
| 3 | 17277981 | O-RING 1,78x9,25 |
| 4 | 4755963 | FASTENING BRACKET |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 4755964 | RUBBER PAD |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 98442027 | OIL FILLER PLUG ASSY |
| 10 | 98412146 | GASKET |
