8140SRM15.11

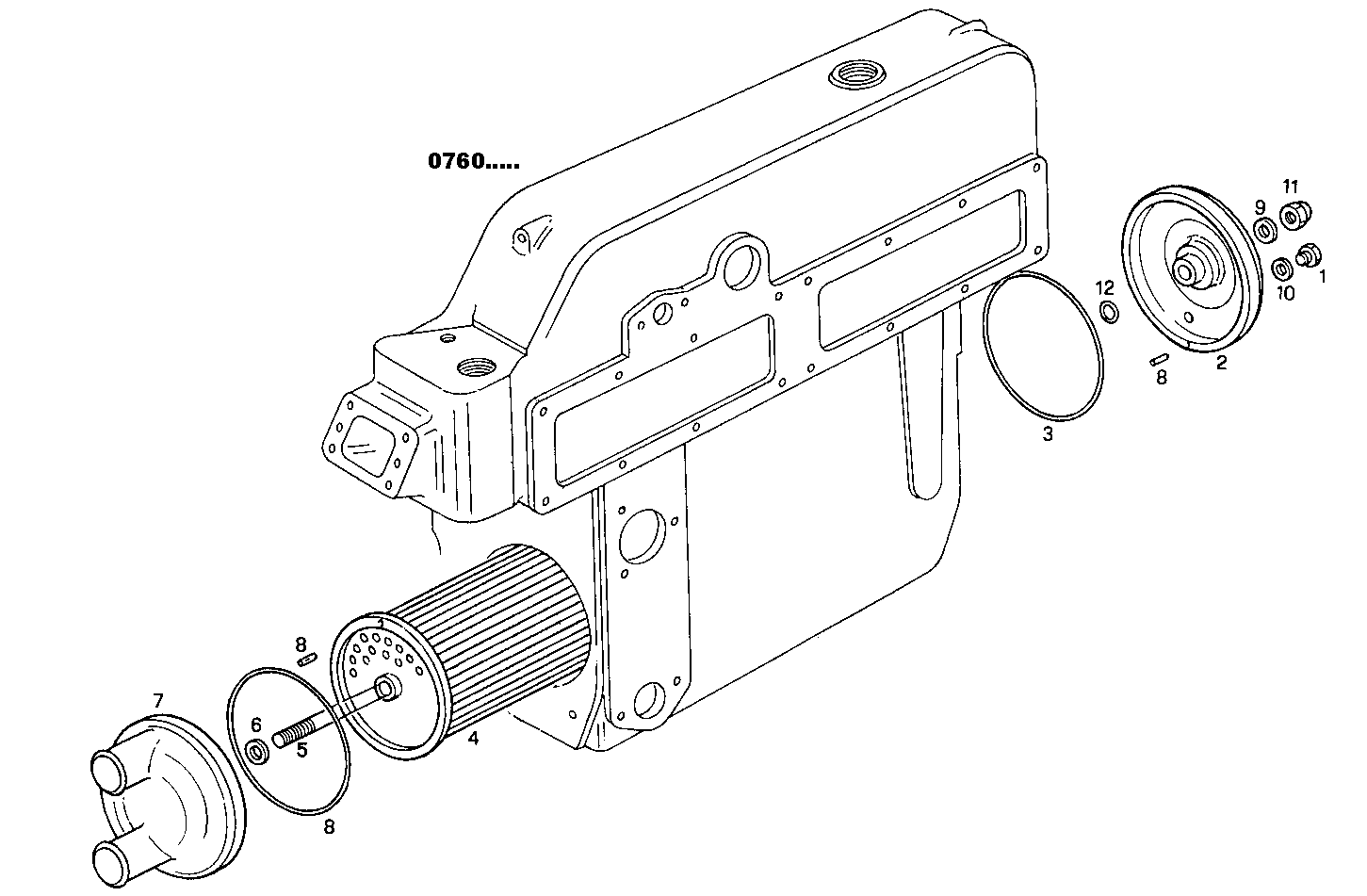

3370.022 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4918907 | NUT |
| 2 | 4927723 | HEAT EXCHANG.COVER FRONT |
| 3 | 4918846 | O-RING |
| 4 | 4927719 | TUBE STACK |
| 5 | 4919239 | TIE ROD |
| 6 | 4927193 | GASKET |
| 7 | 4934328 | COVER |
| 8 | 17234710 | PIN |
| 9 | 4858606 | GASKET Ø10X14X1 MM |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 11903140 | PLUG M10X1,25 |
| 12 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
