8140SRM15.11

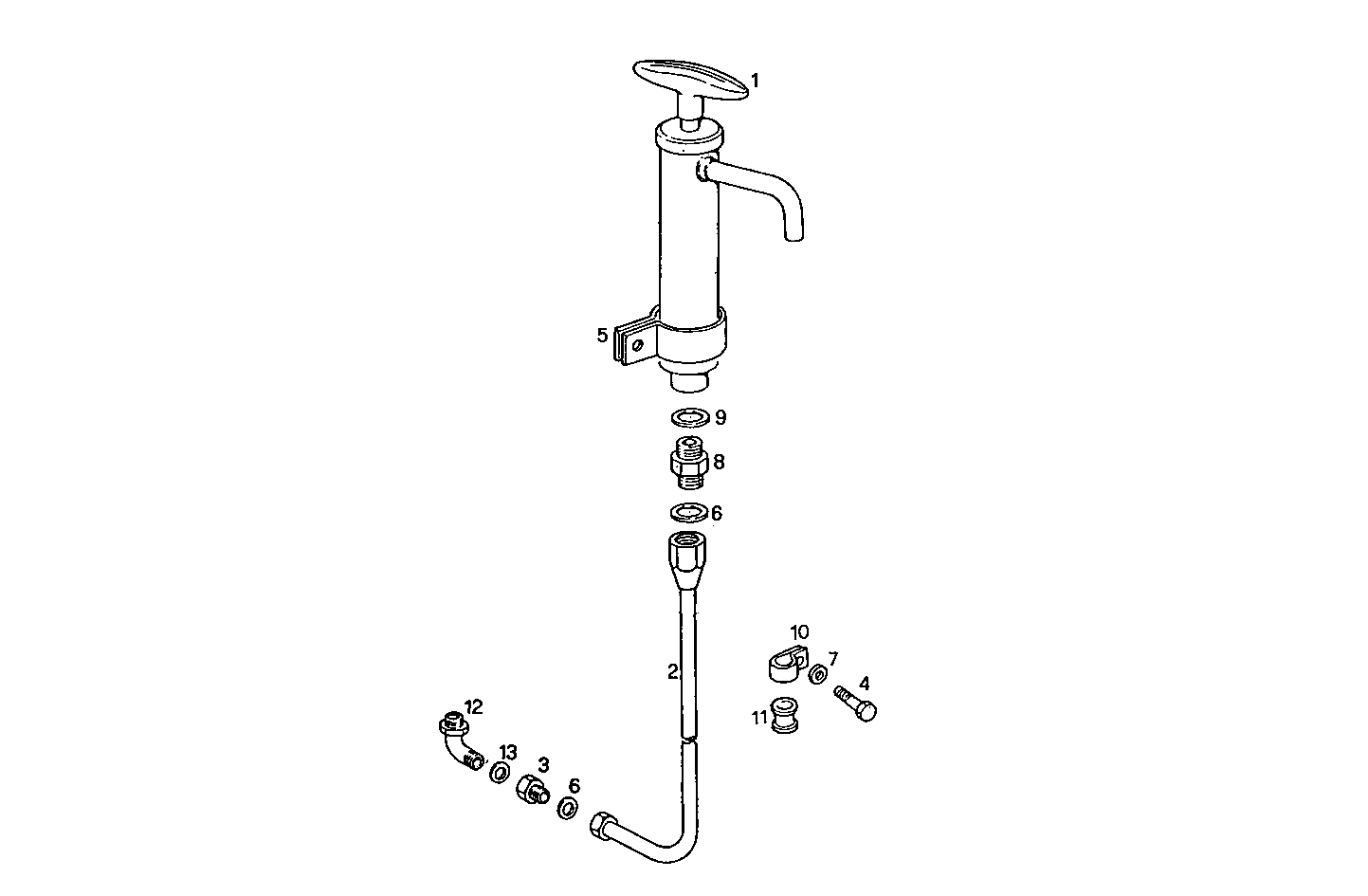

5510.045 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8030661 | OIL LINE |
| 3 | 4931603 | PIPE SOCKET |
| 4 | 15970521 | HEXAGON BOLT M10X20 MM |
| 5 | 4928851 | CLIP |
| 6 | 8024647 | GASKET Ø8 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 8016484 | CLIP |
| 11 | 4755964 | RUBBER PAD |
| 12 | 11219711 | ELBOW COUPLING |
| 13 | 10263460 | WASHER Ø22X28X1,5 MM |
