8140SRM15.11

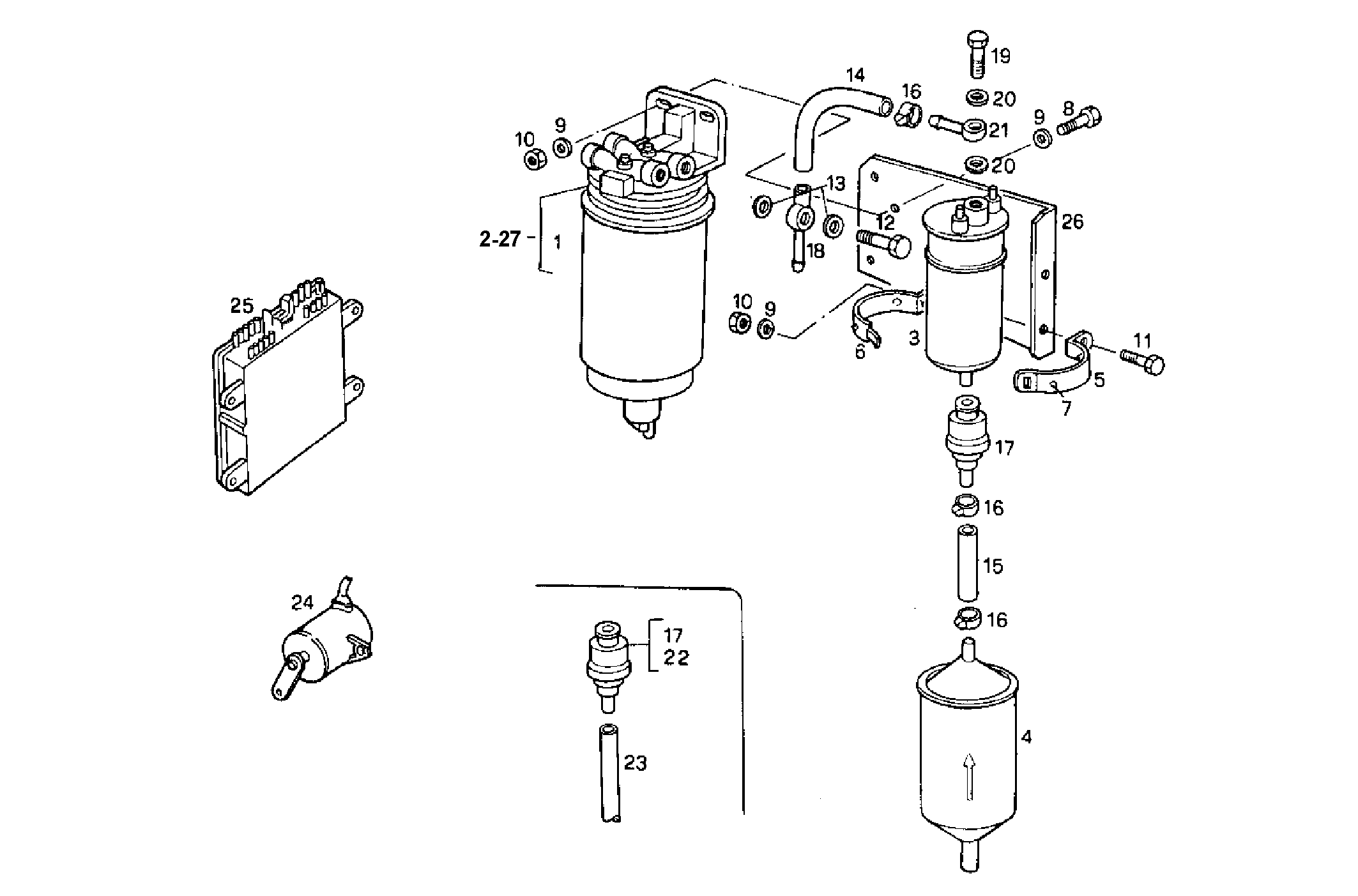

8600.092 ACCESSORIES

Iveco/FPT ACCESSORIES

Item Part number Description
1 1908556 FUEL FILTER ELEM.
2 500327431 FUEL FILTER ASSY UFI [UP TO 02-03-05]
3 500366053 PUMP Electric for fuel
4 8030740 PREFILTER
5 8113295 CLAMP Ø50 MM
6 8113296 CLAMP Ø50 MM
7 1366290 RUBBER LUG
8 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
9 17090174 SPRING WASHER Ø10X20 MM
10 17038121 HEXAGON NUT M10
11 16607624 SCREW M10X25
12 4864083 SCREW CONNECTOR M14X1,5X30 MM
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 500379942 CONNECTOR SLEEVE
15 500378749 CONNECTOR SLEEVE
16 18088293 CLIP Ø12/20 MM
17 500373710 PIPE SOCKET Ø8 MM
18 98413896 PIPE SOCKET Ø8 MM
19 4864079 SCREW CONNECTOR M10X1
20 4858606 GASKET Ø10X14X1 MM
21 98417522 PIPE SOCKET
22 500373711 PIPE SOCKET Ø10 MM
23 19056687 RUBBER HOSE Ø7,5 MM
24 500388702 TRANSMITTER acceler.pedal position
25 500332361 ELECTR.CONTR.UNIT
26 8030877 RETAINER
27 504044712 FUEL FILTER [FROM 03-03-05]
