8141.67.2000
0400.078 CRANKCASE

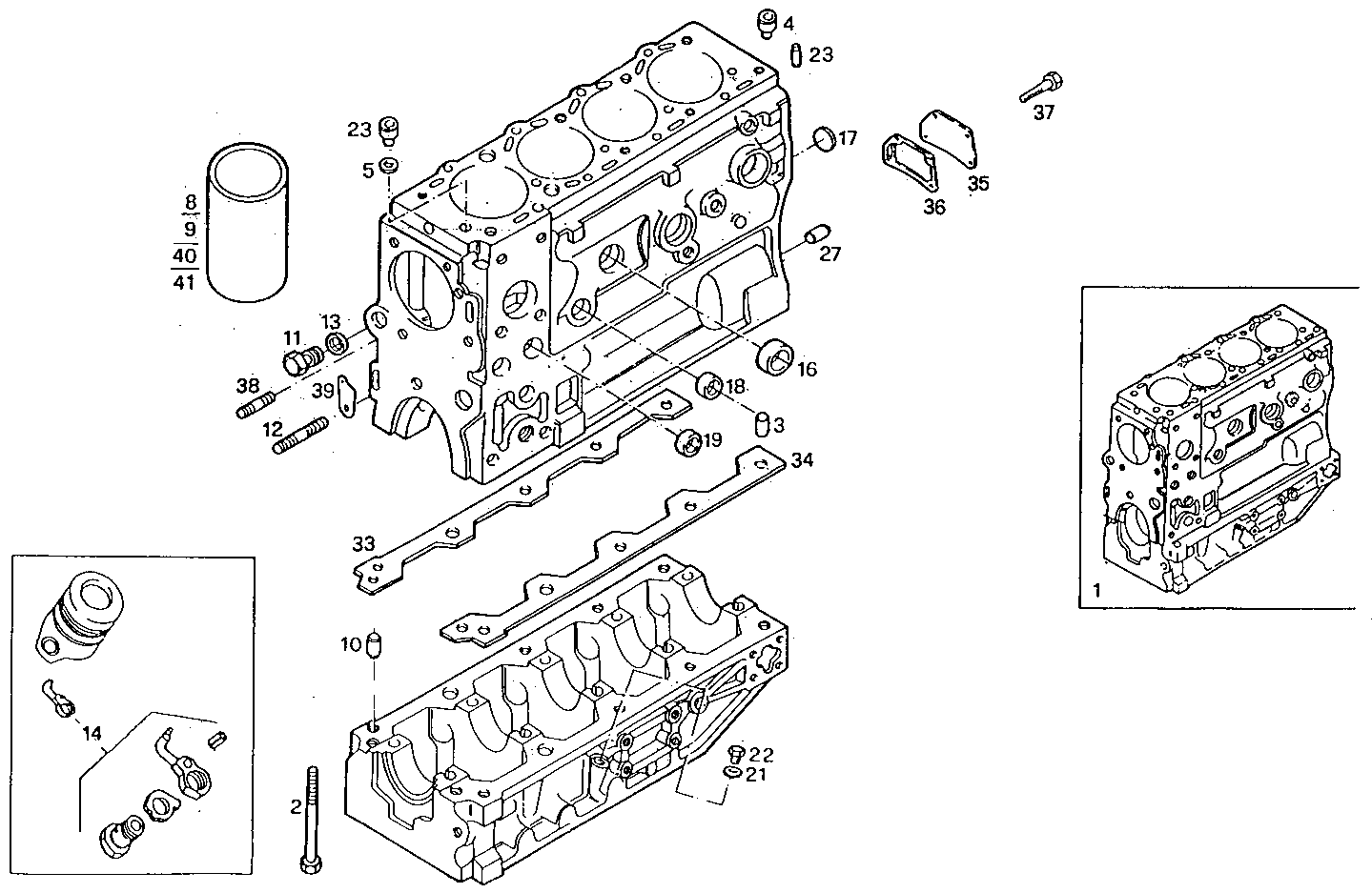

Iveco/FPT CRANKCASE

Item Part number Description
1 99475160 CRANKCASE ASSY
2 4712523 SCREW
3 4724790 DOWEL PIN
4 98418754 DOWEL PIN
5 17277981 O-RING 1,78x9,25
8 4860109 CYLINDER LINER
9 4860110 CYLINDERLINER +0.2
10 4279387 CENTERING RING
11 7303457 THREADED PLUG
12 7301674 STUD
13 16508360 WASHER 18x22x1,5
14 4856606 OIL NOZZLE
16 14282870 LOCK PLUG Ø40 MM
17 7301976 PLUG Ø16 MM
18 14328901 LOCK PLUG Ø25 MM
19 14329401 LOCK PLUG Ø45 MM
21 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
22 11903211 LOCK PLUG M12X1,25
23 98418753 DOWEL PIN [from 1533081]
27 7300019 DOWEL PIN
33 99432808 FLAT ENGINE GASKET RIGHT [from 2122618]
34 99432807 FLAT ENGINE GASKET LEFT [from 2122618]
35 98471295 COVER [from 2122618]
36 98471333 FLAT ENGINE GASKET SP=0,8 MM [from 2122618]
37 16586224 HEXAGON BOLT M8X1,25X16 MM
38 16729324 STUD M8X12X20 MM
39 4719077 COVER
40 500323316 CYLINDER LINER [from 2502549]
42 500323317 CYLINDERLINER +0.2 +0,05 MM [from 2502549]
