8141.67.2000

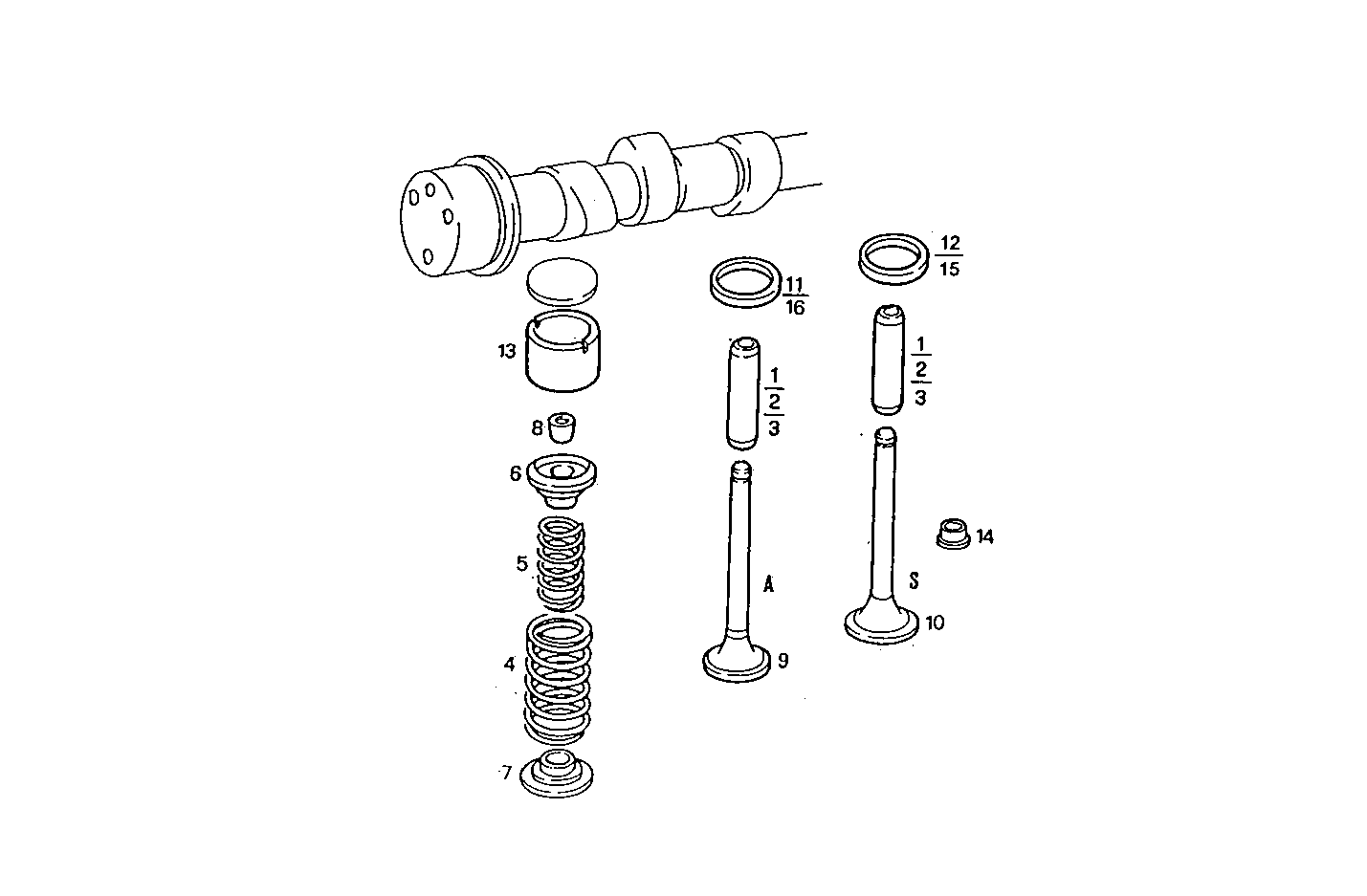

0600.102/02 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 4749397 | VALVE GUIDE |
| 2 | 4749398 | VALVE GUIDE +0.10 |
| 3 | 4749399 | VALVE GUIDE +0,2 |
| 4 | 4734533 | ENGINE VALV.SPRING OUTER |
| 5 | 4723186 | ENGINE VALV.SPRING INNER |
| 6 | 4734531 | SPRING CAP TOP |
| 7 | 4749396 | SPRING CAP BOTTOM |
| 8 | 4733465 | VALVE CONE |
| 9 | 98468338 | INLET VALVE |
| 10 | 98418161 | EXHAUST VALVE |
| 11 | 98425343 | VALVE SEAT STD. PLEUCO |
| 12 | 98418173 | VALVE SEAT STD. EXHAUST [up to 19921213] |
| 13 | 4733350 | VALVE TAPPET |
| 14 | 40101573 | CAP |
| 15 | 98481628 | VALVE SEAT STD. EXHAUST [from 19921232] |
| 16 | 98487340 | VALVE SEAT STD. BRICO |
