8141.67.2000

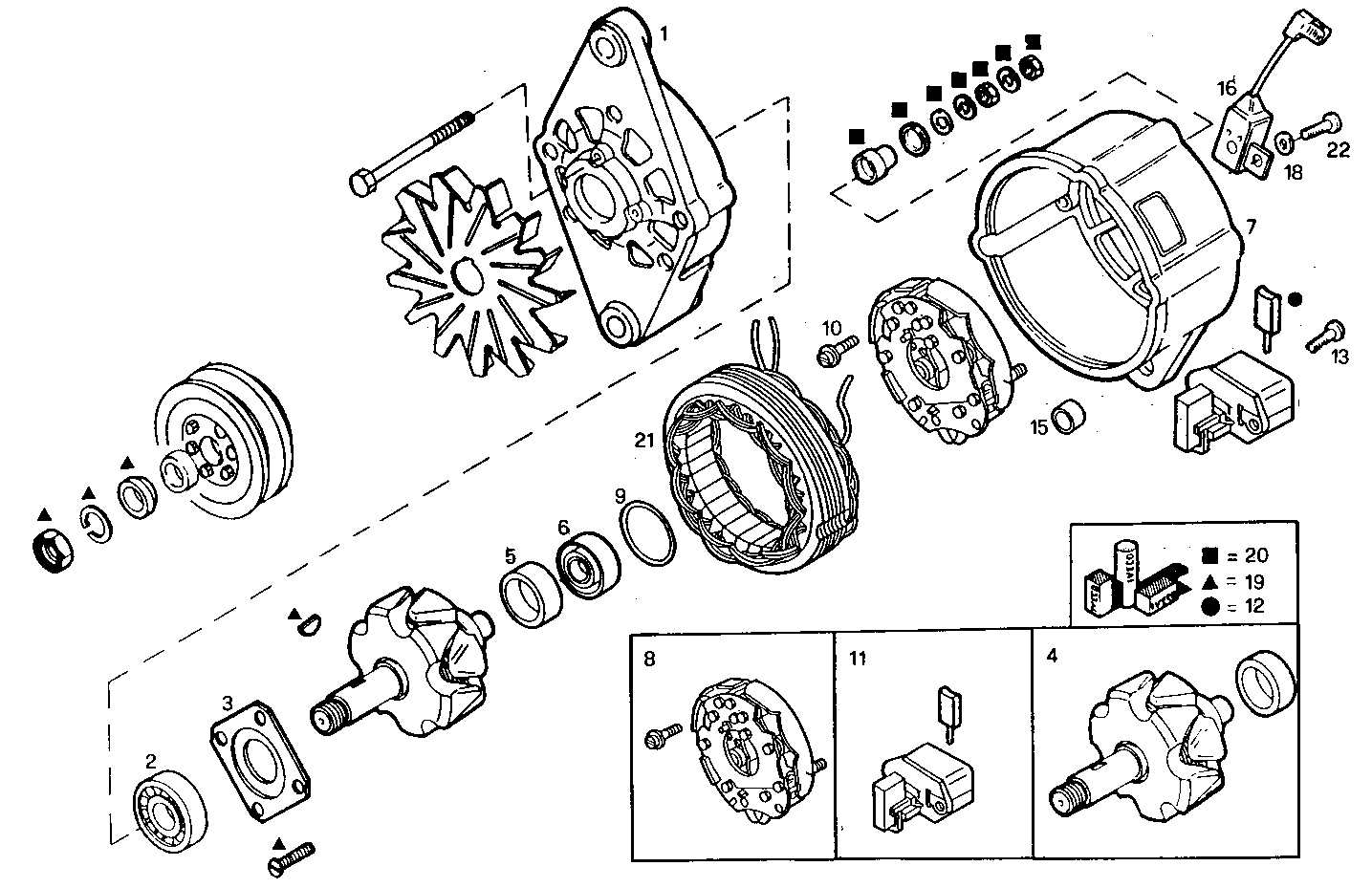

4030.030 GENERATOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
7984705 |
GENERATOR SUPPORT |
|
2 |
1103693 |
BALL BEARING |
|
3 |
79022468 |
PLATE |
|
4 |
7984706 |
GENERATOR ROTOR ASSY |
|
5 |
8121114 |
RING |
|
6 |
1136956 |
BALL BEARING |
|
7 |
9935836 |
GENERATOR SUPPORT |
|
8 |
7984708 |
RECTIFIER BRIDGE |
|
9 |
79025494 |
O-RING |
|
10 |
9938224 |
SCREW |
|
11 |
9942885 |
VOLTAGE REGULATOR ASSY |
|
12 |
9939709 |
KIT-GENERATOR |
|
13 |
79075883 |
SCREW |
|
14 |
9960120 |
BUSH |
|
15 |
79022480 |
CONDENSER |
|
16 |
9960179 |
WASHER |
|
17 |
1307188 |
KIT-GENERATOR KIT |
|
18 |
9927837 |
KIT-GENERATOR |
|
19 |
9937197 |
GENERATOR STATOR |
|
20 |
10389321 |
SCREW M5X10 MM |
