8141C00.00

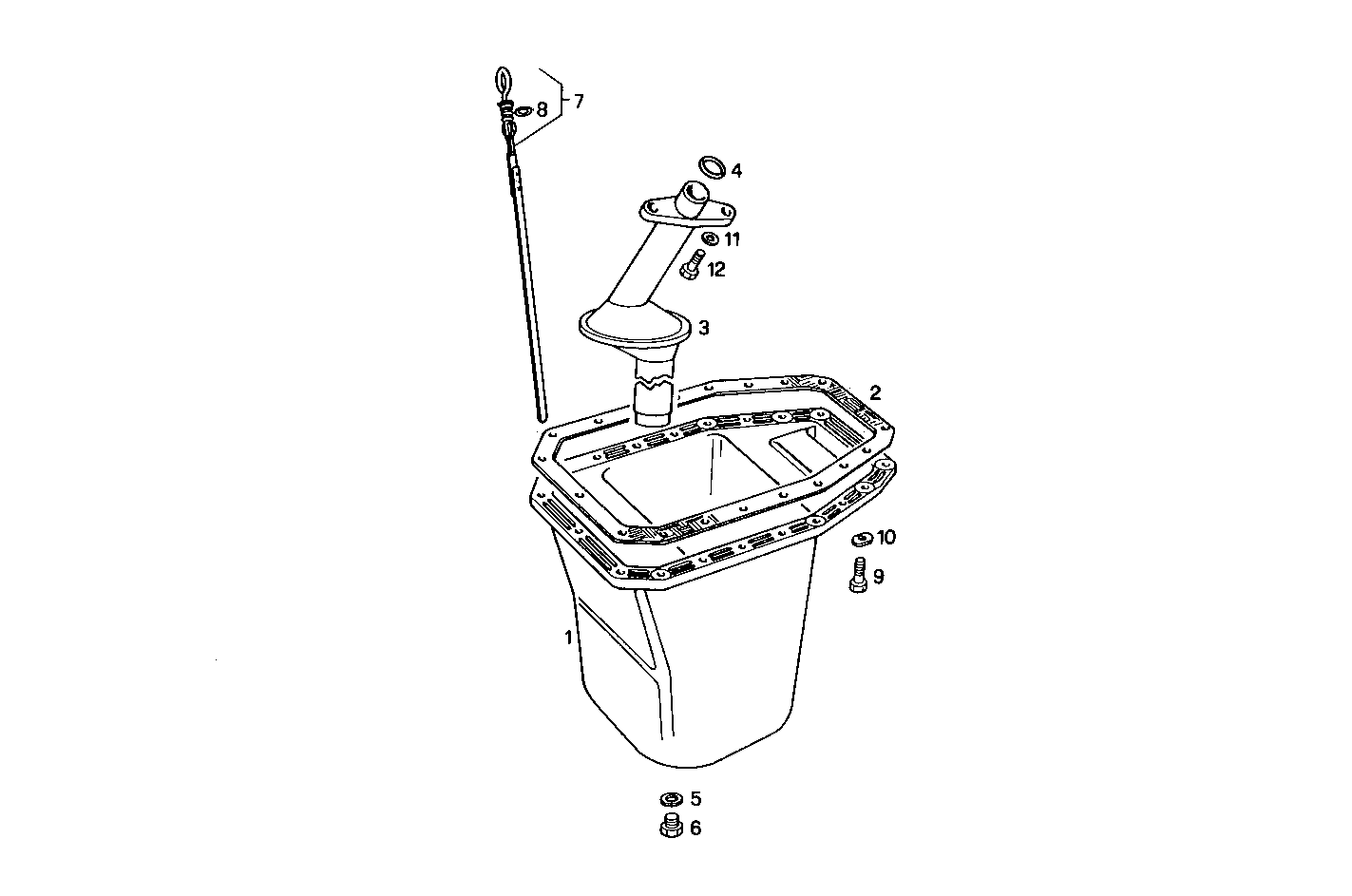

A01050016 OIL SUMP - max 45° with front weel
| Item | Part number | Description |
|---|---|---|
| 1 | 8104165 | OIL SUMP ASSY |
| 2 | 99488483 | OIL SUMP GASKET |
| 3 | 8104166 | SUCTION STRAINER |
| 4 | 17282281 | O-RING 2,62x23,47 |
| 5 | 10263460 | WASHER Ø22X28X1,5 MM |
| 6 | 16992611 | THREADED PLUG M22X1,5 |
| 7 | 8022741 | OIL DIPSTICK ASSY |
| 8 | 14452981 | O-RING Ø9,25 MM SP=1,78 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 7300648 | LOCKING PLATE |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
